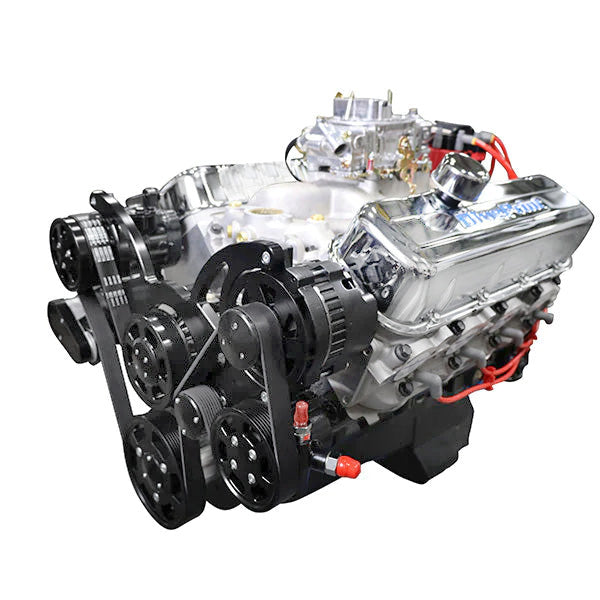

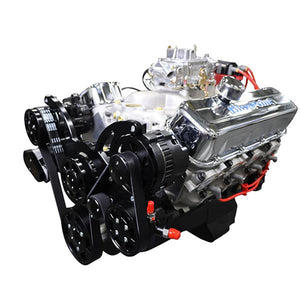

BP4967CTCKB 496 Stroker Crate Engine Dressed w/ Carb 600HP
Product Information
BluePrint Engines GM 496 C.I.D. 600 HP Stroker Dressed Carbureted Long Block Crate Engines
Give your ride a new breath of life with BluePrint Engines GM 496 c.i.d. 600 hp stroker dressed carbureted long block crate engines with aluminum heads. These engines crank out an incredible 600 hp and 568 ft.-lbs. of tire-shredding torque. Each engine is hand-built and balanced to provide you with a powerful mill that is sure to kick some fresh life into your project car or hot rod.
Block:
- Cast iron 454 big block
- Cylinders honed to within .0002 straightness and roundness
- Cylinders are sonic-tested for thickness
- 4.250 in. stroke, bored .060 in. over
- Standard deck
Rotating Assembly:
- Forged steel crankshaft
- OEM-type connecting rods with 150,000 psi rod bolts
- Hypereutectic pistons, 10.1 to 1 Compression ratio
- Hydraulic roller camshaft
Additional Features:
- Aluminum cylinder heads
- 850 cfm carburetor
- Aluminum intake manifold
- Valve covers, oil pan
Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.
UPC: 00887753837134
Crate Engine Family: Chevy Big Block
Actual Engine Displacement: 8.1L/496
Crate Engine Cylinder Head Material: Aluminum
Advertised Compression Ratio: 10.1:1
Assembled: Yes
Engine Balance: External
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: Yes
Intake Manifold Style: Carbureted
Cylinder Heads Included: Yes
Carburetor Included: Yes
Throttle Body Included: No
Distributor Included: Yes
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: No
Flywheel Included: No
Air Cleaner Included: No
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Supercharger Included: No
Remanufactured: No
Quantity: Sold individually
Notes: Standard deck engine has 4-bolt mains. Includes black front pulley kit
Special Attention: Includes an 850 cfm carburetor. Cylinder heads feature a 0.300 in. raised exhaust port vs. an OEM casting
