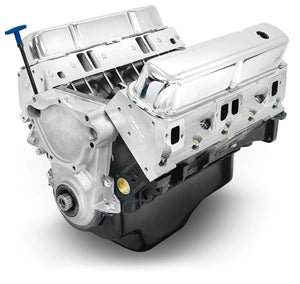

BluePrint BPC4085CT Chrysler 408 CI Stroker Crate Engine Longblock 465HP

BluePrint Engines Chrysler 408 C.I.D. 465 HP Long Block Crate Engines

BluePrint Engines Chrysler 408 c.i.d. 465 hp crate engines deliver exceptional performance. BluePrint uses an advanced computerized balancer to fine-tune their rotating assemblies within 2 grams, ensuring smooth power throughout the rpm range. Each engine includes a detailed dyno-generated printout of the critical specs, so you know exactly what horsepower and torque you're getting. Show off your BluePrint dyno results with confidence!

These engines are imported to order via airfreight, with delivery typically ranging from 1 to 15 days. For an accurate ETA, please don't hesitate to give us a call.

Features, items, and specs:

• Available in 3 levels of dress: Long block base, fully dressed, and drop-in-ready
• Long block base model includes oil pan, timing cover, and valve covers
• Fully dressed model includes long block components, plus carburetor, intake manifold, distributor, and harmonic balancer installed
• Drop-in-ready model includes fully dressed components, plus water pump, air cleaner, spark plugs, and spark plug wires
• Aluminum cylinder heads: 58cc chamber; 2.02 in. intake/1.60 in. exhaust valves; 176cc intake/75cc exhaust runners
• Roller cam: .544 intake; .541 exhaust; 236 intake/242 exhaust duration at .050--110 degree lobe separation
• Cast steel crankshaft: 4.000 in stroke; OEM-type 6.123 in. connecting rods with 150,000 psi bolts; forged pistons; external balance
• Hand-picked, seasoned block: Square and parallel decked with precision-machined and sonic-tested cylinders, 2-bolt main, 4.000 in bored and .040 in. over, 2-piece rear main seal, and mechanical pump provision
• 34 degrees total at 4,000 rpm ignition timing
• Brass freeze plugs

Specifications

• UPC: 00887753744128
• Crate Engine Family: Mopar Small Block Magnum
• Actual Engine Displacement: 6.7L/408
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 2-piece
• Intake Manifold Included: No
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: No
• Distributor Included: No
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes: Not for use in pollution-controlled vehicles.
