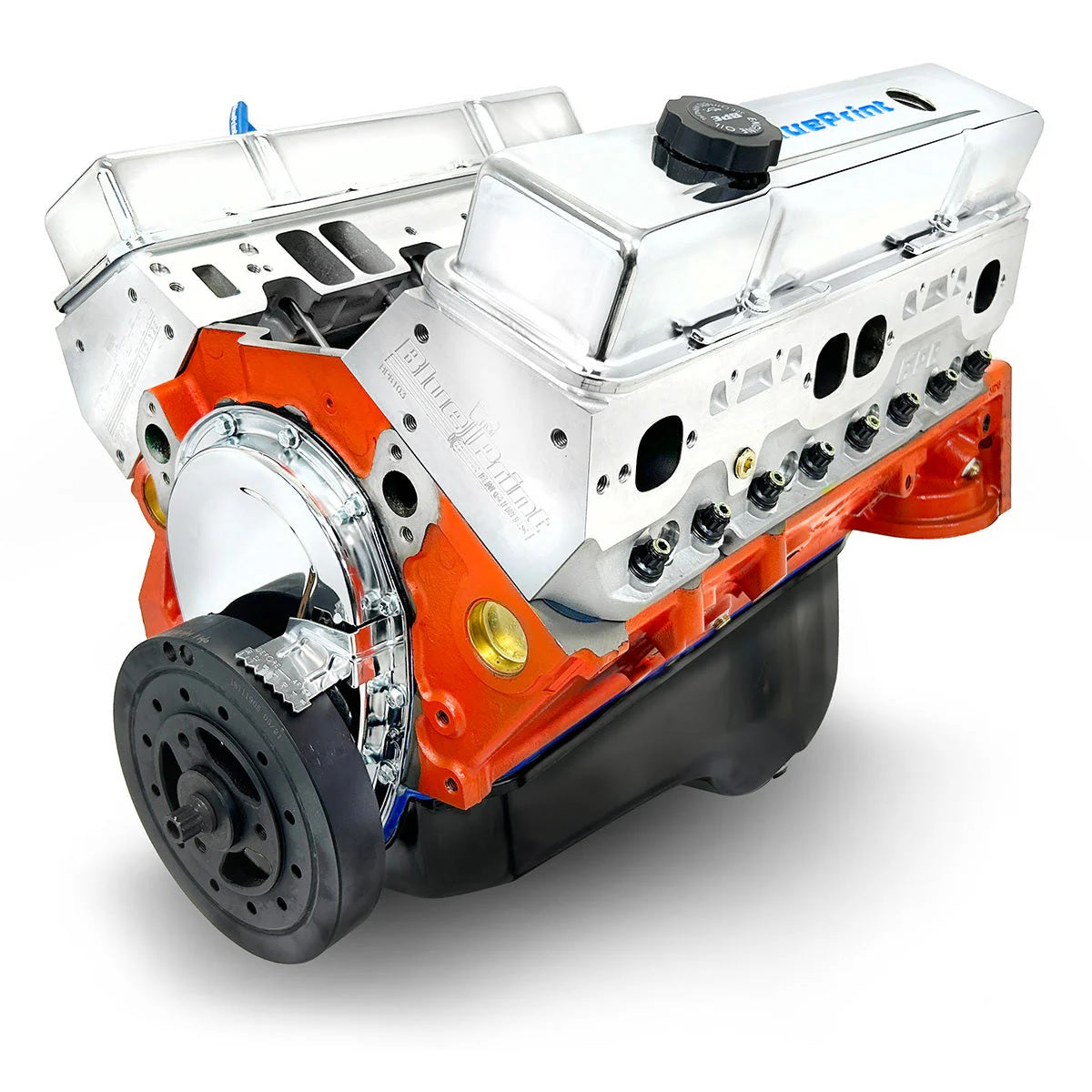

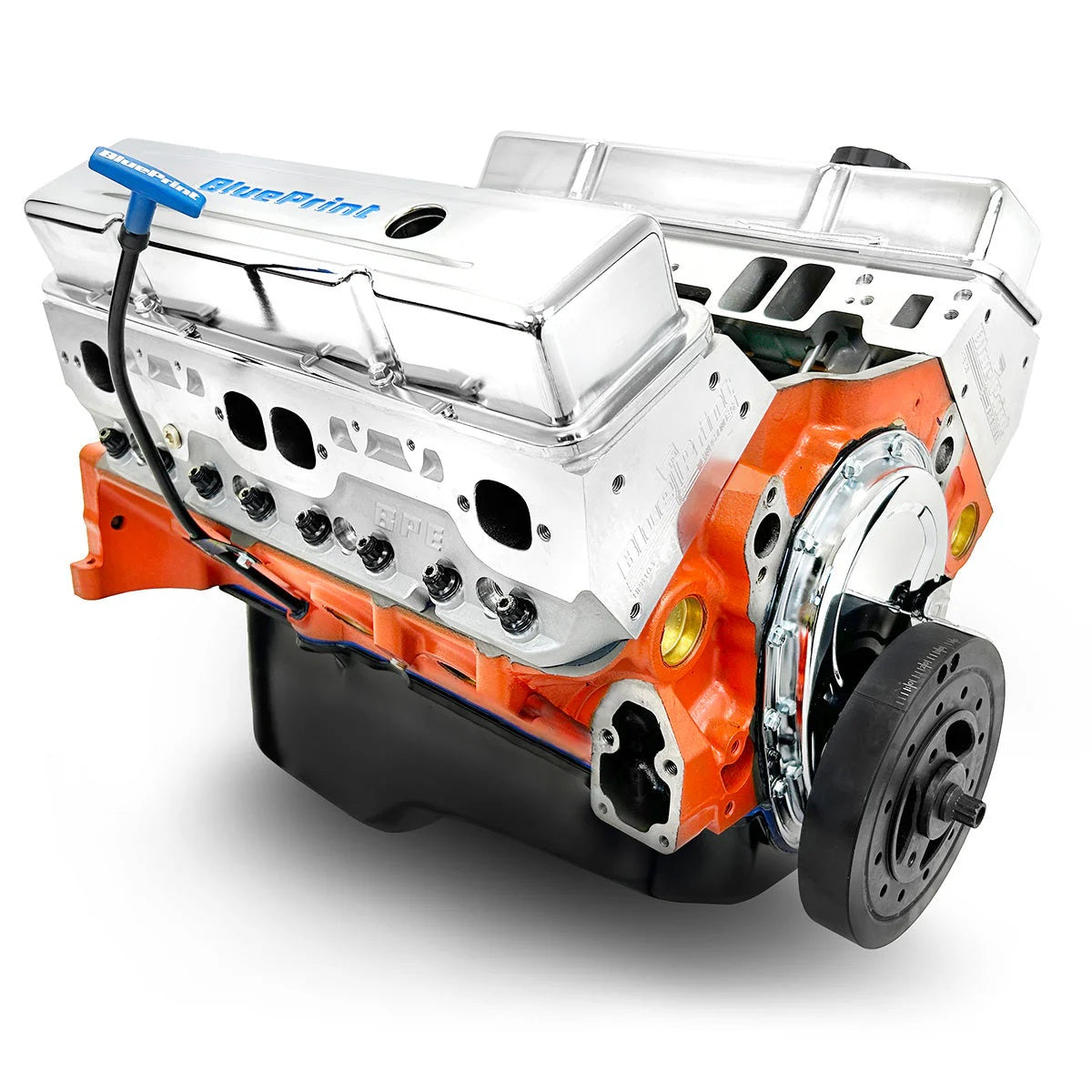

BluePrint Chev SB 400 Long Block Power Adder Crate Engine 511HP for Supercharger & Turbo

BluePrint Engines GM 400 C.I.D. 511 HP Base Long Block Crate Engines with 6 in. Connecting Rods

• HP & Torque: 511 HP / 480 FT. LBS
• Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
• Compression Ratio: 9.5:1
• Camshaft: Hydraulic Roller Cam - .555 Intake .577 Exhaust Lift and 236 Intake / 248 Exhaust Duration @ .050 - 113° LSA
• Pistons: Forged
• Crankshaft: Forged Steel Crank - 3.750" Stroke and Forged 5.700" Rods

Add some real power to your build—BluePrint Engines GM 400 c.i.d. 511 hp base long block crate engines with 6 in. connecting rods. These engine assemblies are built by skilled craftsmen utilizing BluePrint's exclusive designed and manufactured blocks. Their base units come complete with oil pans, valve covers, and front timing covers--letting you finish the engine out, your way, with fuel and ignition systems. They're also balanced, blueprinted, and dyno-tested.

BluePrint Engines GM 400 c.i.d. 511 hp base crate engines include:

• Cast iron block with 4-bolt mains
• Compression ratio: 9.5:1
• Forged crankshaft
• 6 in. forged H-beam connecting rods with 150,000 psi rod bolts
• Forged pistons
• Hydraulic roller cam
• BluePrint aluminum heads with 64cc chamber

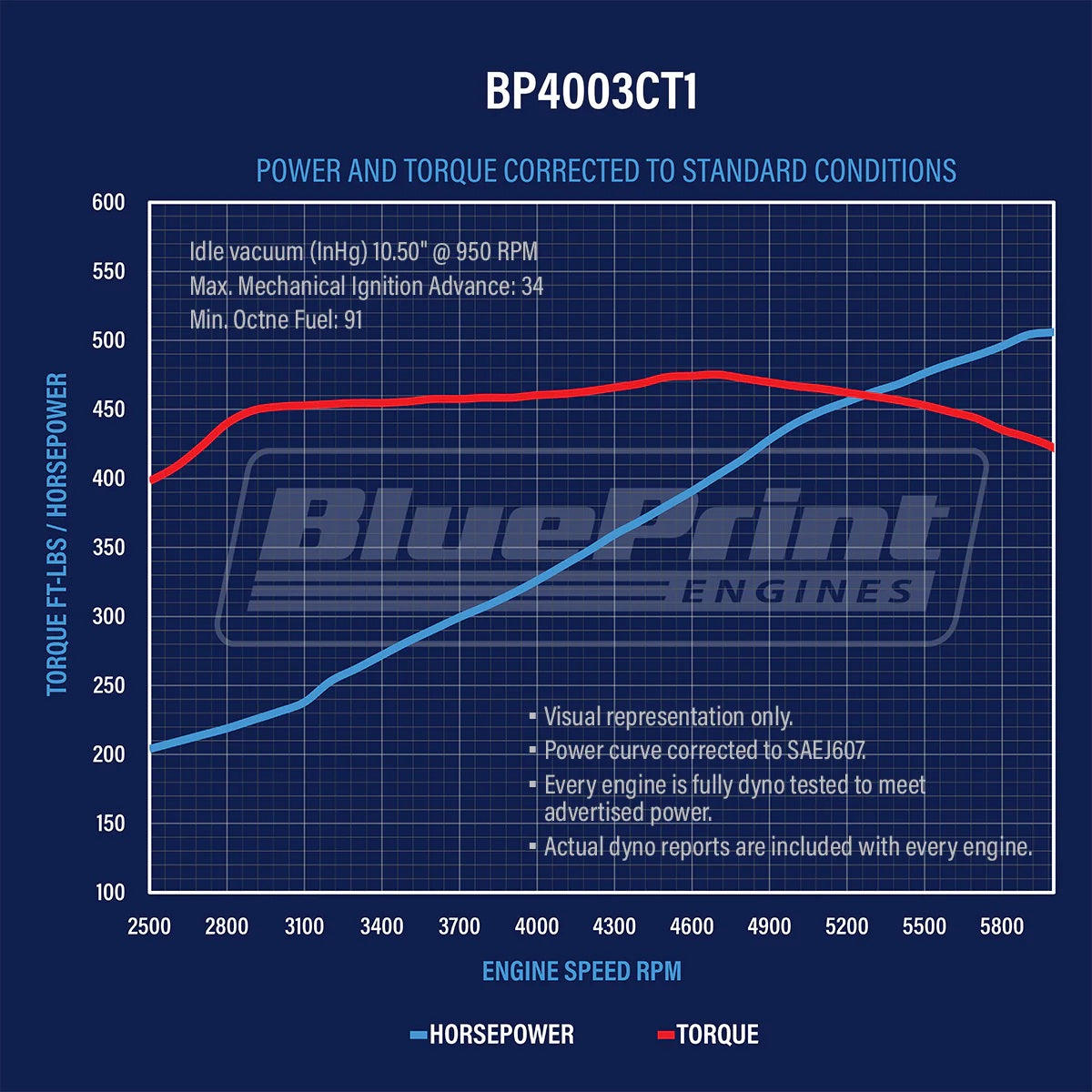

• Dyno test results shipped with engine

Specifications:

• UPC: 816671020762
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 6.6L/400
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: No
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: No
• Distributor Included: No
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.

NOTE:

These do not include Supercharger or Turbocharger.
