Blueprint Engines PSEBP3023CTC Ford 302Ci Complete Crate Eng

Product Information

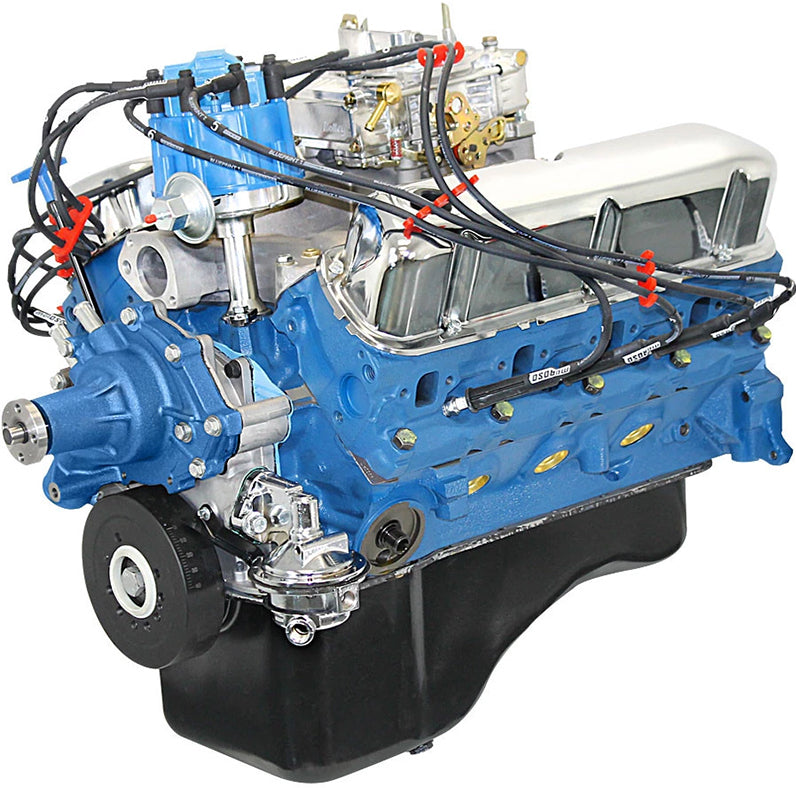

NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.

Engine Features

• HP & Torque: 235 HP / 317 FT LBS
• Compression Ratio: 8.5:1
• Cast Iron Heads
• Flat Tappet Cam
• Cast Steel Crank
• Hypereutectic Pistons

BLOCK:

• Hand picked seasoned block
• Square and parallel decked
• Align honed main bearing bore
• Cylinders honed on computer controlled machine to within .0002 straightness and roundness
• Cylinders are sonic tested for thickness
• 2-Bolt Main
• 4.000" Bored up to .060" Over
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

• Ford, machined and balanced by BluePrint Engines
• 3.000" Stroke
• OEM type 5.090" connecting rods
• Hypereutectic pistons
• 50oz External balance

CYLINDER HEADS:

• Cast Iron
• Hardened retainers and springs
• 1.94 swirl polished intake valves
• 1.60 swirl polished exhaust valves

CAM SPECS:

• Cam Type: Flat tappet
• .376 Intake .389 Exhaust
• 184 Intake / 191 Exhaust duration
• @ .050 - 112 degree lobe separation

IGNITION TIMING:

• Initial timing - 12 ° and Total timing 32 °

ALSO INCLUDES:

• Carb
• Intake dual plane
• Harmonic balancer
• Chrome valve covers
• Chrome timing cover
• Distributor
• Water pump
• Fuel pump
• Spark plug wires
• Spark plugs
• Painted oil pan
• Brass freeze plugs
• Dyno test results shipped with engine

NOTE: Engine timing cover is designed for standard rotation water pump ONLY
