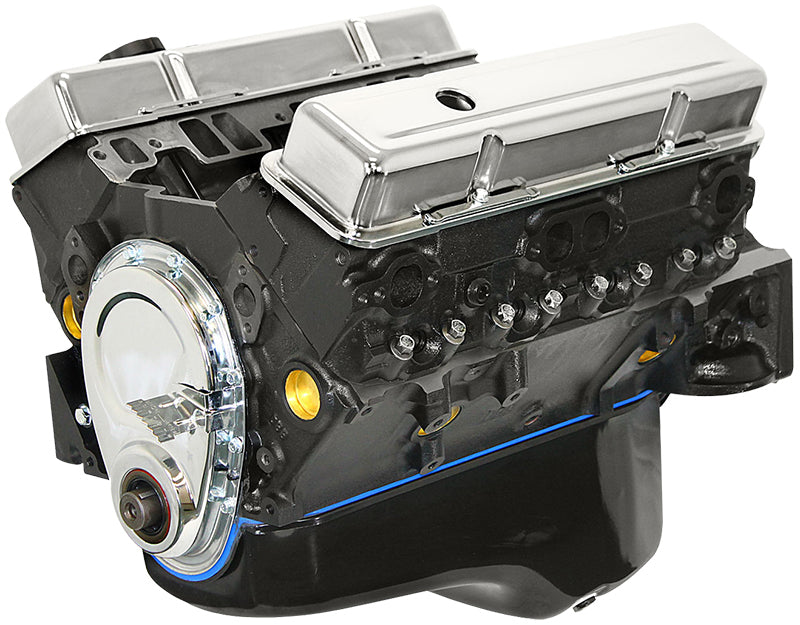

Blueprint Engines PSEBP3504CT1 350-325 Hp Chev Sb Iron Head Engin

Blueprint Engines PSEBP3504CT1 350-325 Hp Chev Sb Iron Head Engin

PSEBP3504CT1
$5,404.80 AUD
$5,404.80 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

DESCRIPTION:

  • Dyno Tested Warranty
  • HP & Torque: 325HP / 375 FT LBS
  • Compression Ratio: 9.1:1
  • Cast Iron Heads
  • Flat Tappet Cam
  • Cast Steel Crank
  • Hypereutectic Pistons

BLOCK:

  • Hand picked seasoned block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 2-Bolt Main
  • 4.000" Bored .040" Over
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • Cast steel crankshaft
  • 3.480" Stroke
  • OEM type 5.700" connecting rods w/ 150,000 psi bolts
  • Hypereutectic pistons
  • Internal Front/ External Rear

CYLINDER HEADS:

  • Cast iron heads
  • 64cc chamber
  • Hardened retainers and springs
  • 2.02 swirl polished intake valves
  • 1.60 swirl polished exhaust valves

CAM SPECS:

  • Cam Type: Flat Tappet
  • .480 Intake .486 Exhaust
  • 224 Intake / 230 Exhaust duration
  • @ .050 - 110 degree lobe separation
  • Using 1.5 rockers

IGNITION TIMING:

  • 34 Degrees Total at 3500 RPM

ALSO INCLUDES:

  • Valve covers
  • Oil pan
  • Timing cover
  • Dyno test results shipped with engine

NOTES:

  • Zinc Additive Required For Flat Tappet Application Comp Cams Engine Break-In Oil Additive 12oz. (354ml) Bottle, Part No. CO159
  • Comp Cams Engine Break-In Oil 15W-50, 1 Quart (946ml) Part No. CO1591
  • Not for EGR


Manufacturer Part Number:
