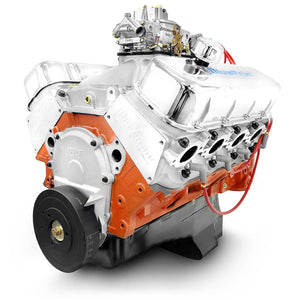

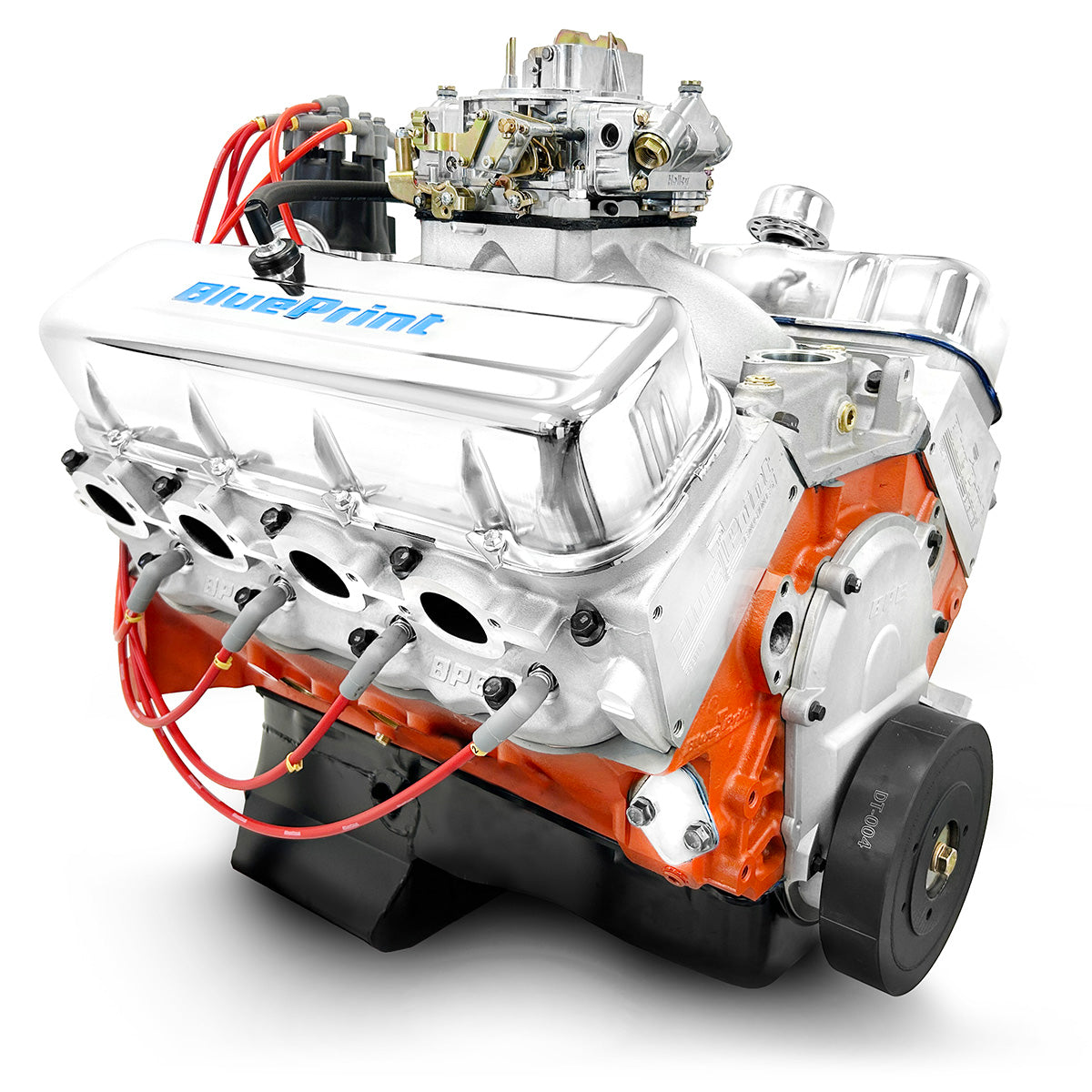

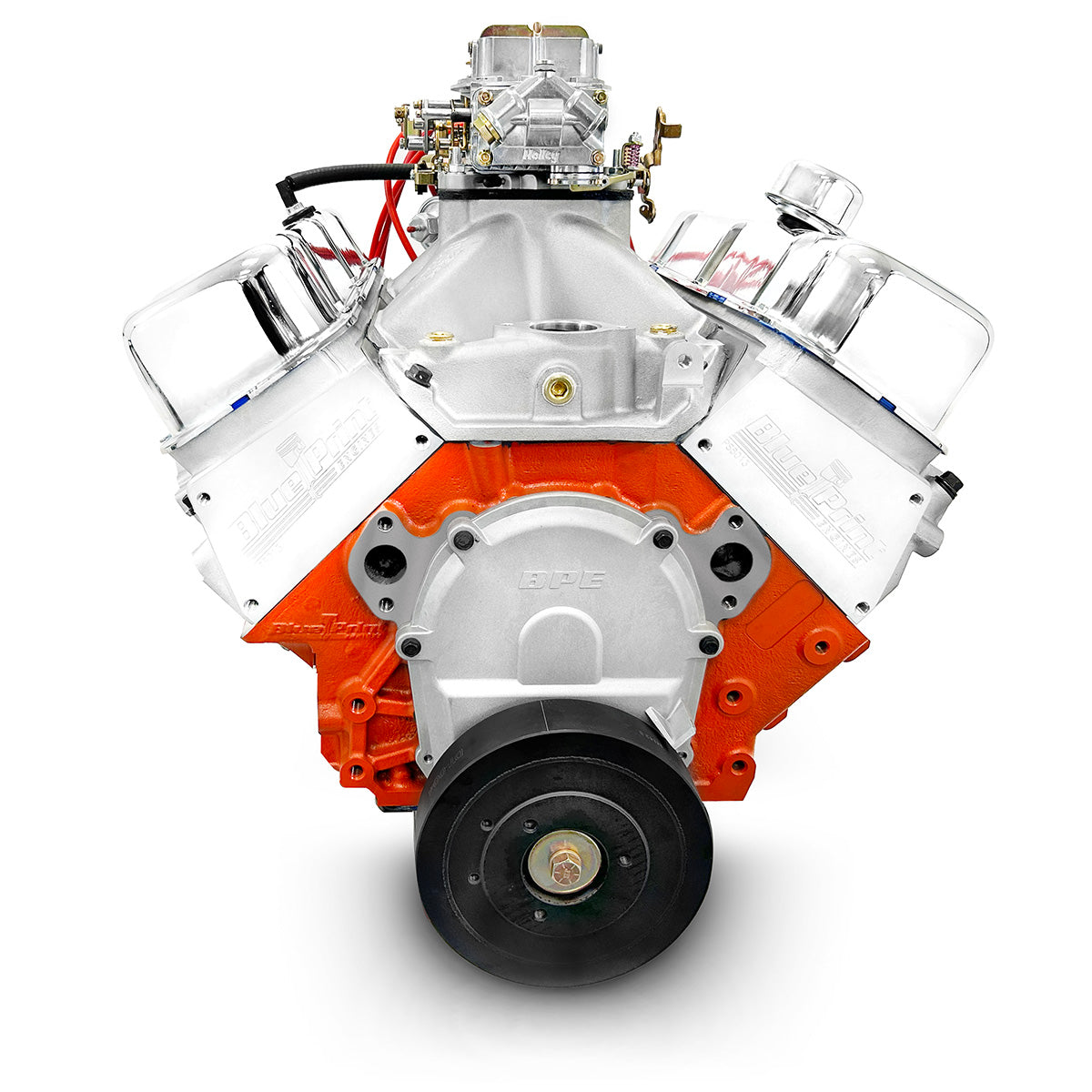

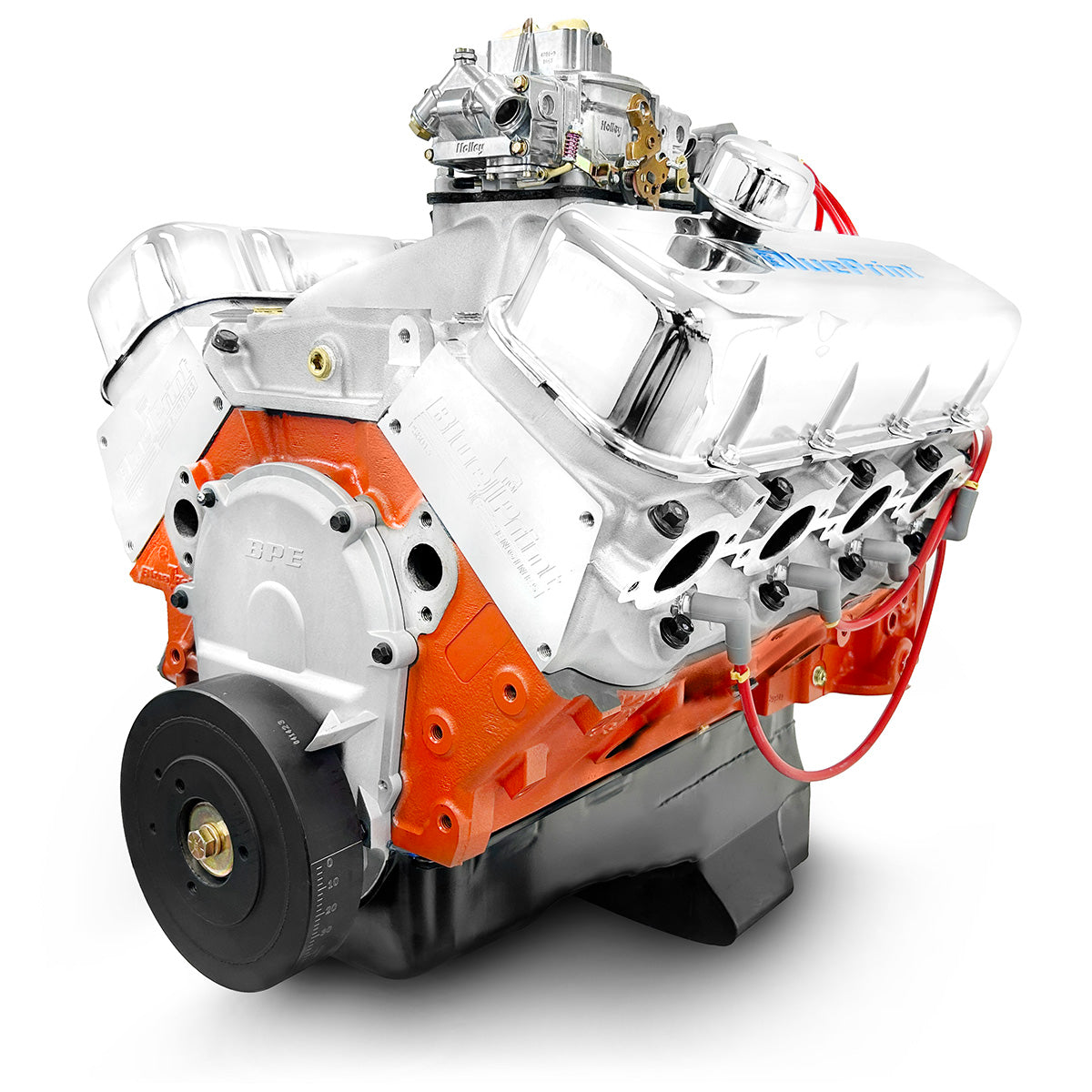

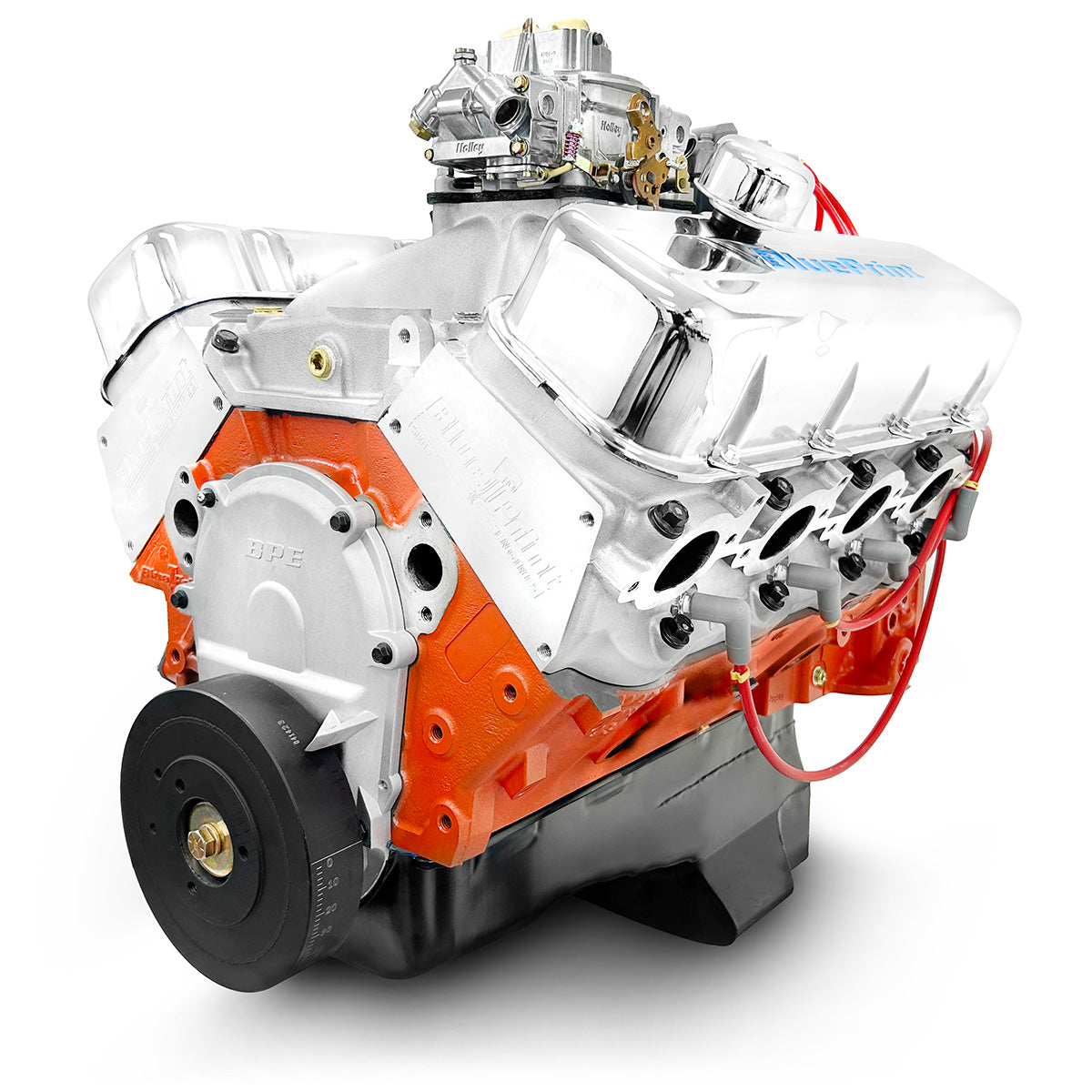

BluePrint PS502CTC Chev BB 502 CI Pro Series Stroker Crate Engine Dressed w/ Carb 621HP

BluePrint Engines Pro Series Chevy 502 C.I.D. 621 HP Dressed Long Block Crate Engines

Blueprint Pro Series is for those wanting maximum horsepower and durability.

BluePrint Engines Pro Series Chevy 502 c.i.d. 621 hp dressed long block crate engines offer any custom builder, hot rodder, or kit car builder an engine that has been fully dyno tested, passed vigorous inspections, and is ready to power up your project.

Blueprint's Pro Series 502 big block GM-style engines are dressed with carburetor, aluminum heads, forged pistons, forged crankshaft, and a hydraulic roller cam.

Additional Features:

• Block: Standard deck with 4-bolt main
• Connecting Rods: Forged H-beam connecting rods
• Cylinder Head Specs:
  • 119cc chamber
  • 2.30 in. intake / 1.88 in. exhaust valves
  • 316cc intake / 124cc exhaust runners
• Camshaft Specs:
  • .647 intake / .647 exhaust lift
  • 248 intake / 254 exhaust duration
  • At .050 - 112 degree lobe separation
• Dyno Test Results: Shipped with engine

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

• UPC: 00887753800091
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 8.2L/502
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: Internal
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: Standard deck. Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
