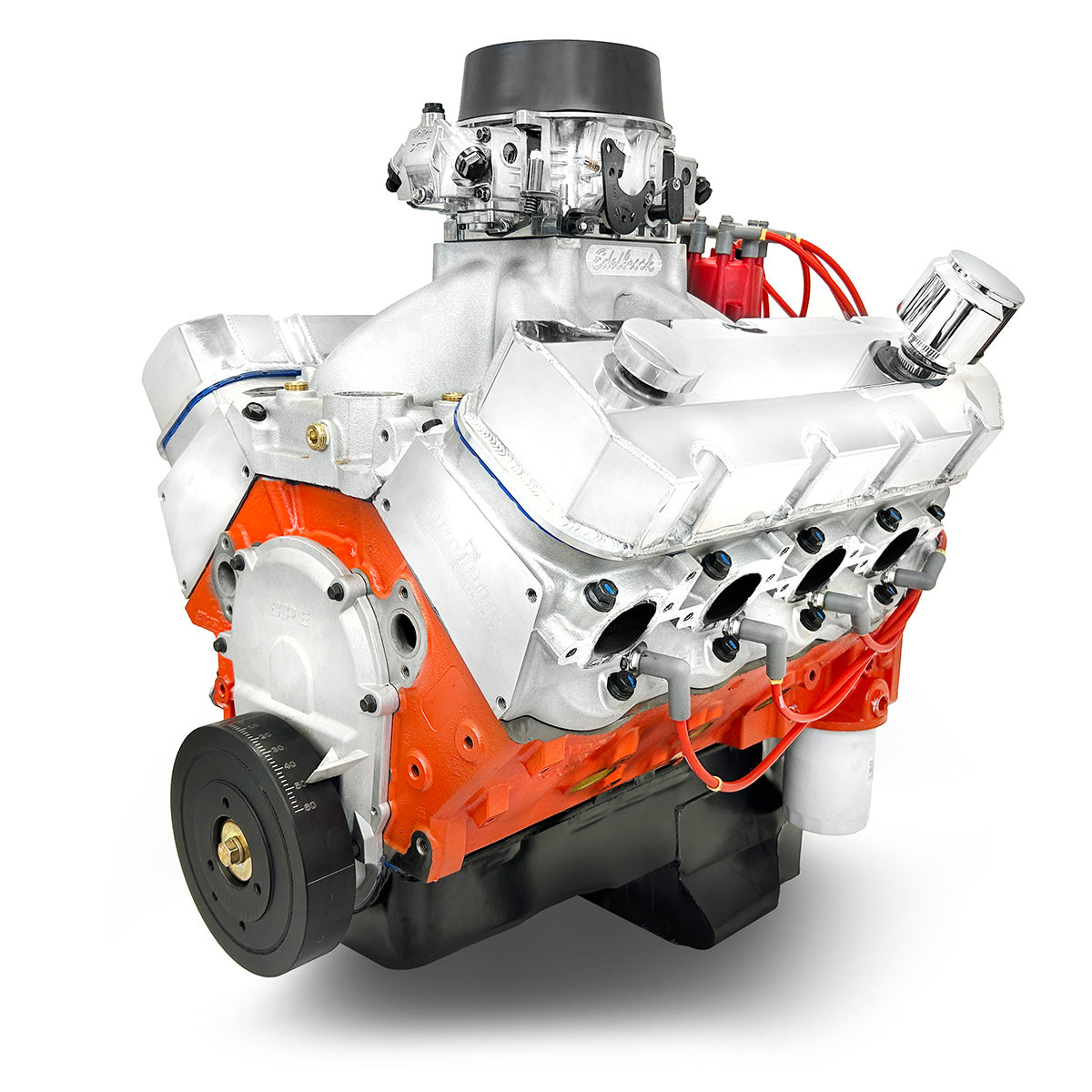

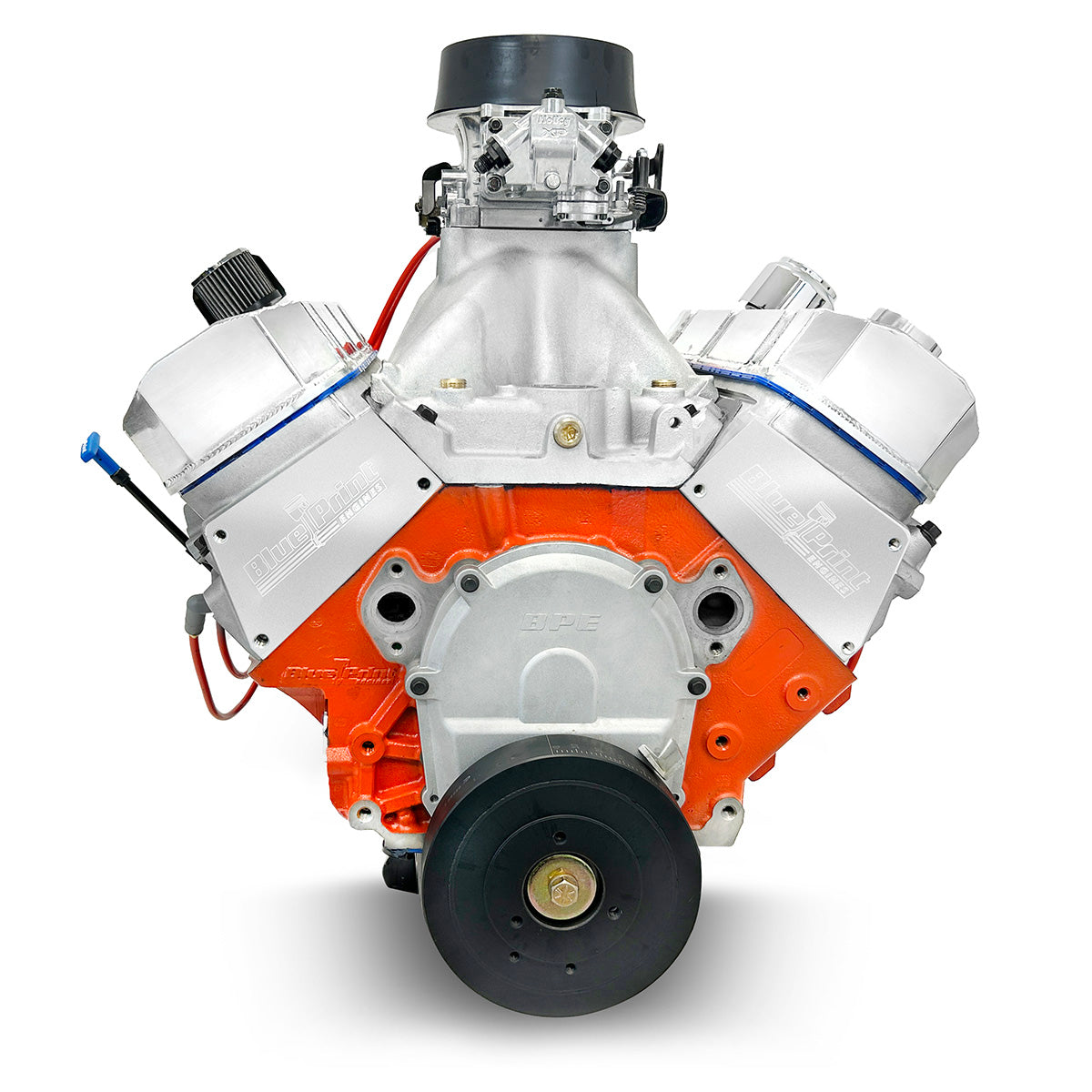

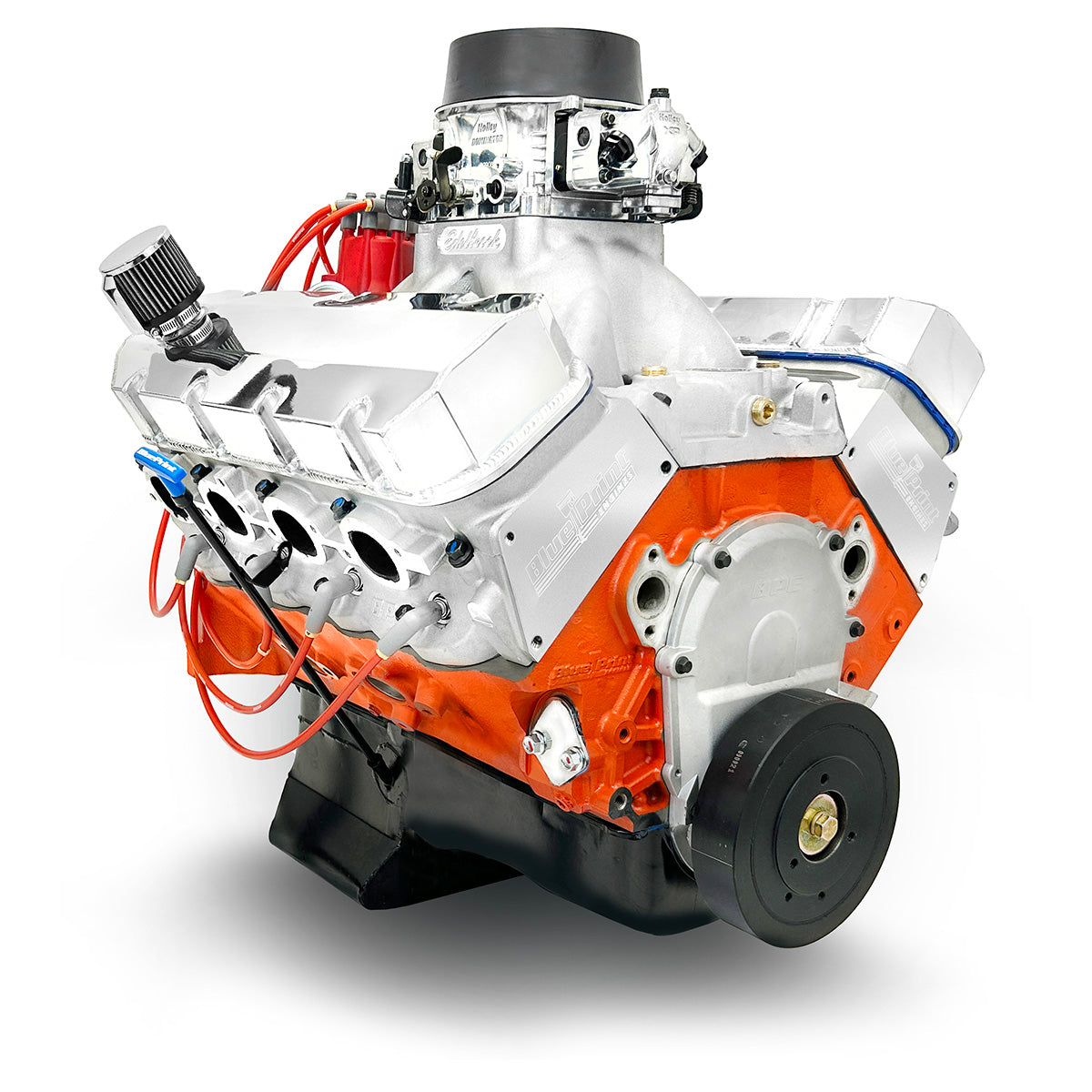

BluePrint PS6320CTC Chev BB 632 CI Pro Series Stroker Crate Engine Dressed Longblock w/ Carb

BluePrint Motorsports Pro Series Chevy 632 C.I.D. 815 HP Dressed Long Block Crate Engines

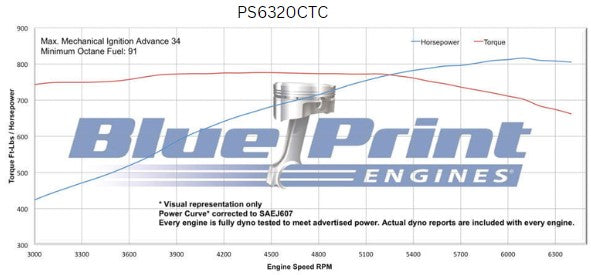

BluePrint Pro Series Chevy 632 c.i.d. dressed long block crate engines have it all! You'd better take a firm grip, because these beauties run with 815 hp! The engines are a perfect choice for drivable and reliable high-end performance. Additionally, the Pro Series crate engines are manufactured under strict tolerances to provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. The engines are also dyno-tested and include the dyno sheets. For high-horsepower, big displacement engines, BluePrint Pro Series Chevy 632 c.i.d. dressed crate engines are the way to go!

Crate engine features include:

* New BluePrint Gen 6 tall deck block

* Internal balance

* Has a provision for a mechanical fuel pump

* One-piece rear main seal

* 4-bolt mains

* 4.600 in. bore

* Forged 4.750 in. stroke crankshaft

* Forged H-beam connecting rods

* Forged pistons

* 10:1 compression

* Billet distributor

* Hydraulic roller camshaft

- Lift = 0.698 in. / 0.698 in.

- Duration at 0.050 in. = 272 / 282 degrees

- Lobe Separation = 110 degrees

* Double roller timing chain

* Billet distributor

* Aluminum cylinder heads

Specifications

• UPC: 00887753744531
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 10.3L/632
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 11.0:1
• Assembled: Yes
• Engine Balance: Internal
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Stall Speed Rating RPM Range: 3,800-4,200
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes:
  Tall deck engine. Block has a mechanical fuel pump provision. Requires an internal balance flywheel/flexplate. The 1-piece rear main seal small block Chevy flywheel/ flexplate will not bolt to this engine. For further specifications, please see the Charts & Guides above. O balance flywheel or flexplate must be used. See the suggested parts tab for the correct flywheel or flexplate to use with this engine.
• Special Attention:
  Included carburetor has a 1,250 cfm flow rate.
