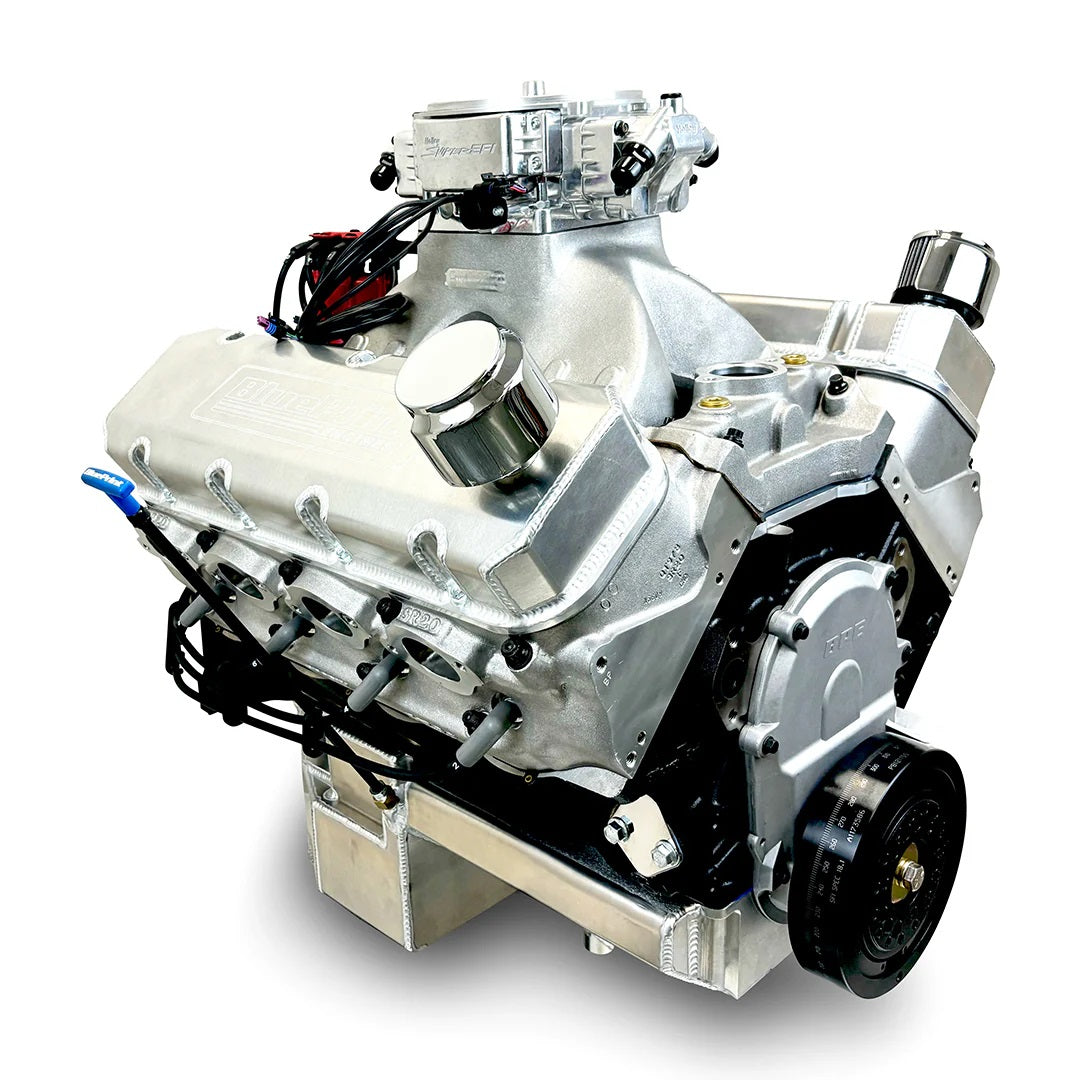

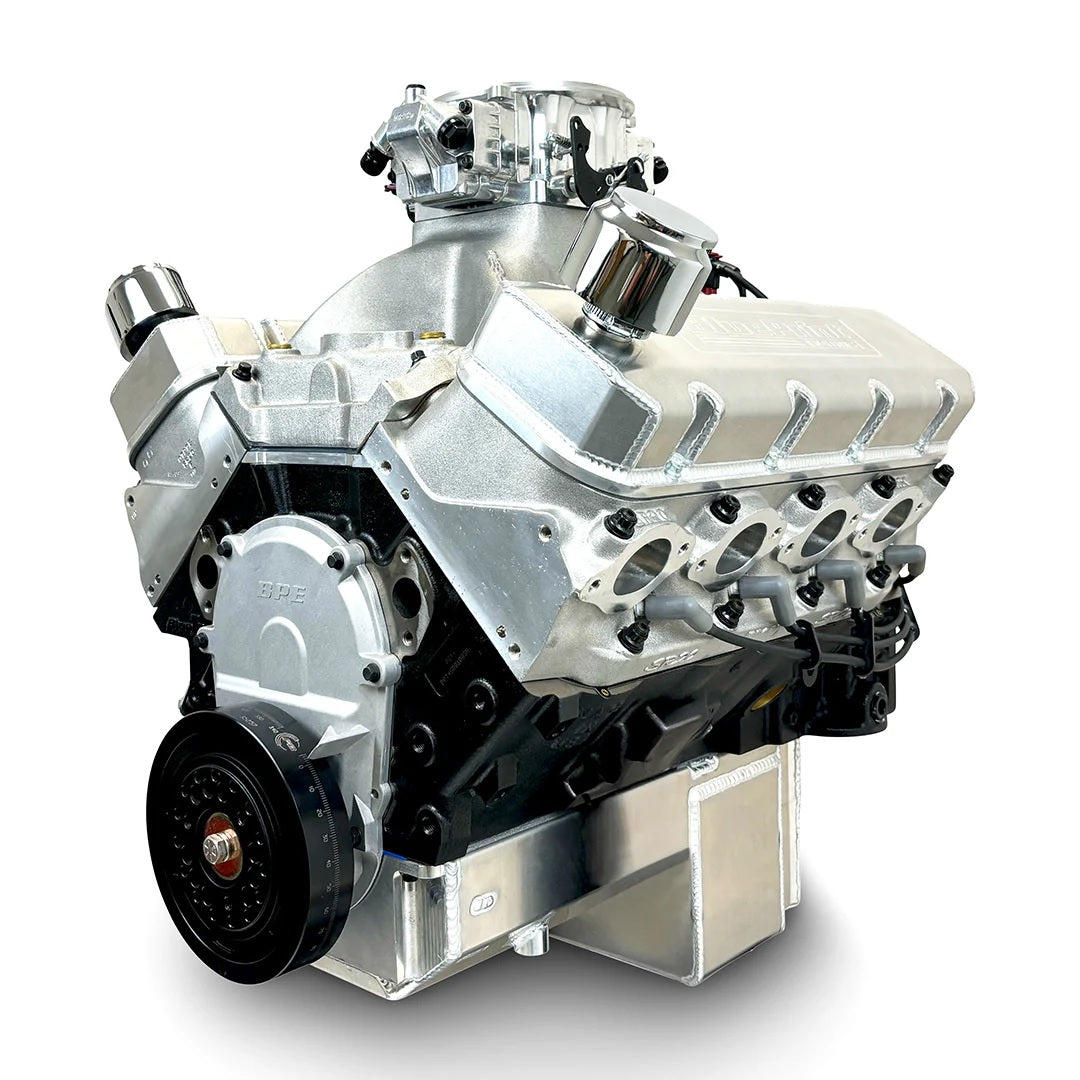

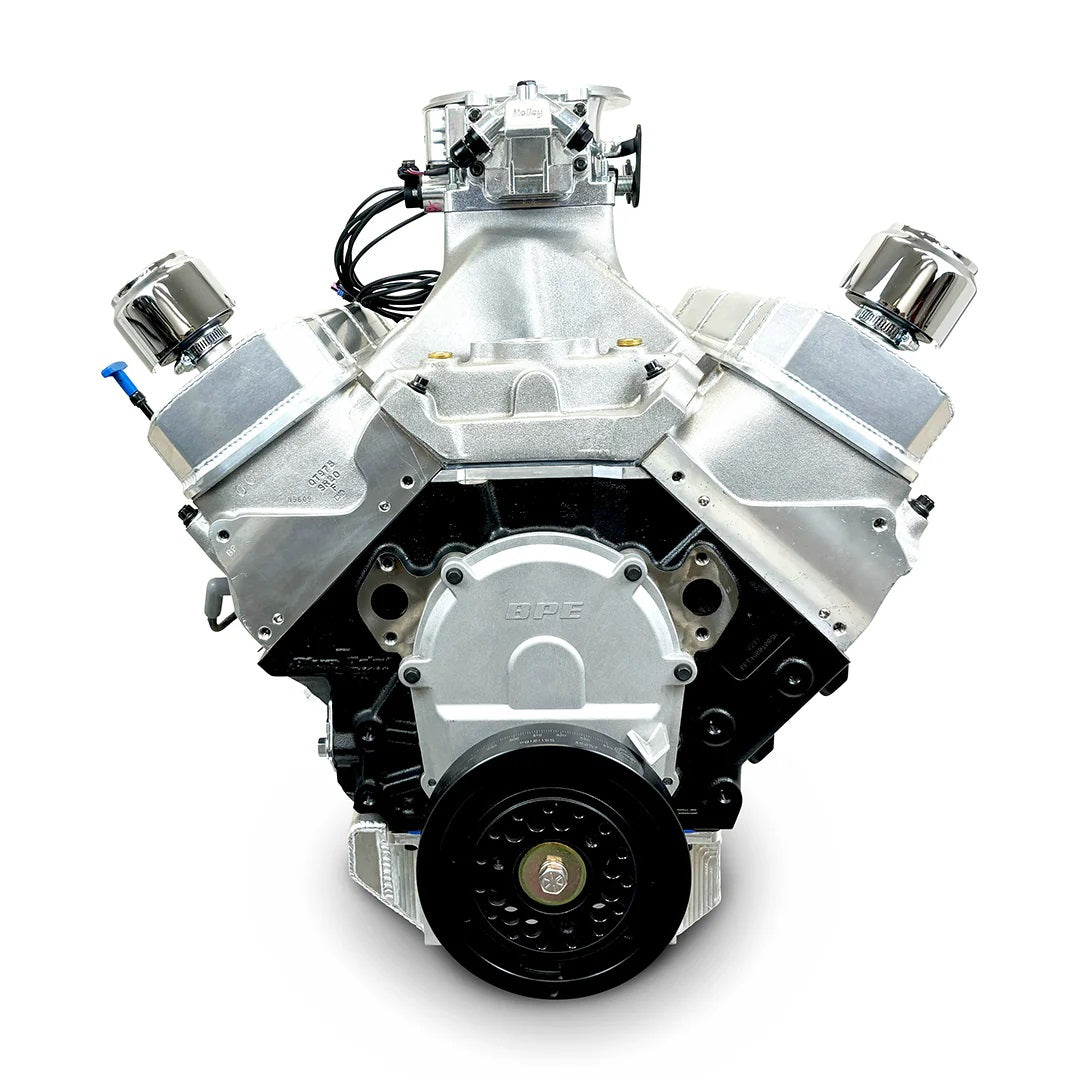

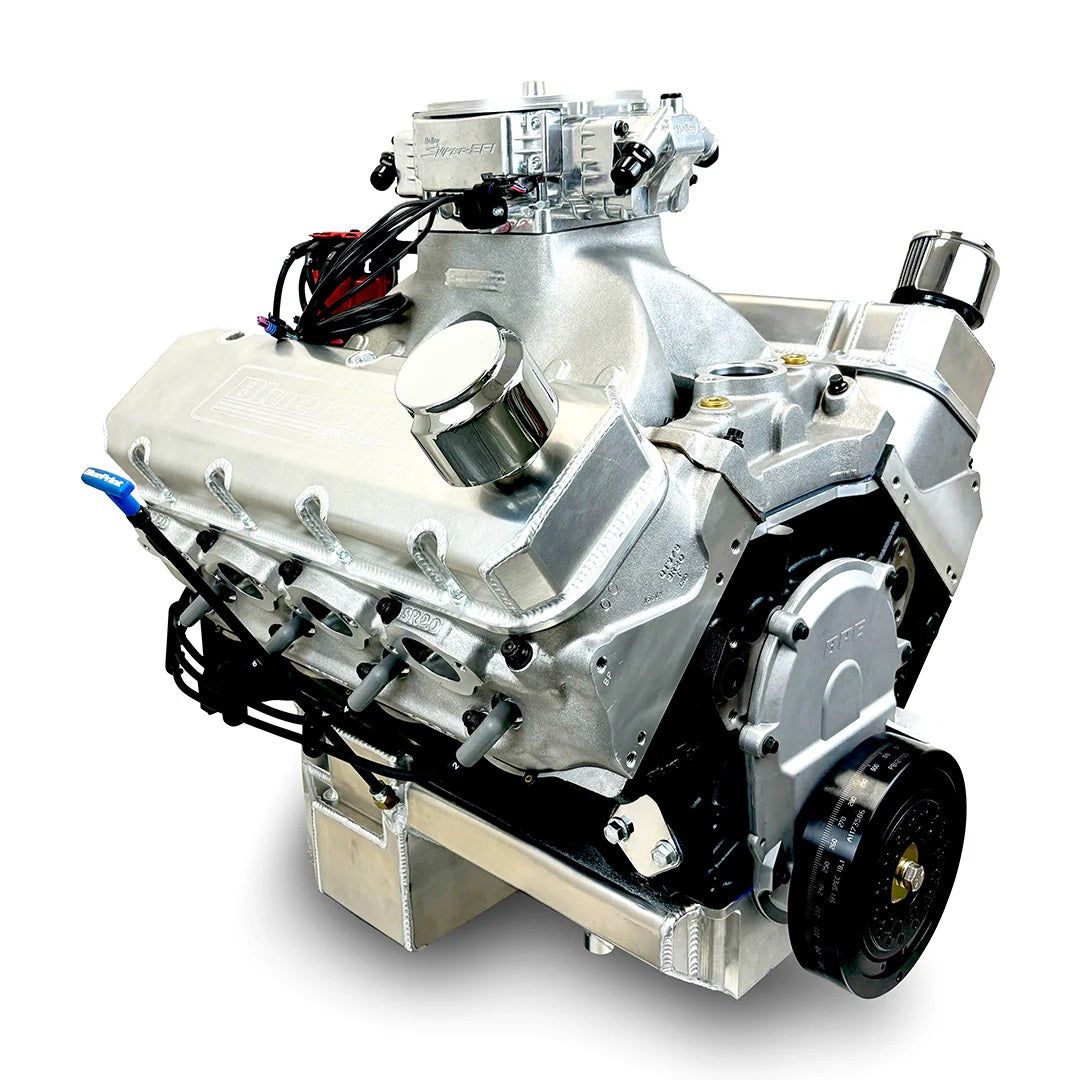

BluePrint PS6321CTF Chev Big Block 632 Pro Series Engine 1015HP Base Dressed - Fuel Injected

BluePrint PS6321CTF Chev Big Block 632 Pro Series Engine 1015HP Base Dressed - Fuel Injected

BP-PS6321CTF
$48,299.95 AUD
$48,299.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

GM Big Block Compatible 632 c.i. ProSeries Engine – 1015 HP of Pure Power!

Get ready to unleash the beast! This 632 c.i. ProSeries engine is for those who crave serious power under the hood. Pumping out a jaw-dropping 1015 horsepower and 830 ft. lbs. of torque, this bad boy’s built to make your ride the undisputed king of the street or strip. The Brodix SR20 CNC Ported Heads and a solid roller cam deliver high-octane performance with extreme precision, while the forged pistons and crank ensure durability for all-out power runs. Paired with a Holley Sniper Stealth 4500, this engine roars with uncompromising force.

Perfect for those who demand maximum horsepower and relentless torque, this is more than an engine—it’s a thrill machine. Turn the key, and let the fun begin!

Features:

  • Horsepower & Torque: 1015 Horsepower / 830 FT. LBS. Torque
  • Cylinder Heads: Brodix SR20 CNC Ported Heads
  • Compression Ratio: 10.65:1
  • Camshaft: Solid Roller Cam - .873 Intake / .861 Exhaust Lift - .293 Intake / .304 Exhaust Duration- @.050-115 Degree Lobe Separation
  • Pistons: Forged
  • Crankshaft: Forged Steel Crank - 4.750" Stroke and Forged 6.635" Connecting Rods

Specifications:

  • Horsepower & Torque: 1015 Horsepower / 830 FT. LBS. Torque
  • Brodix SR20 CNC Ported Heads
  • Compression Ratio: 10.65:1
  • Solid Roller Cam
  • Pistons: Forged
  • Forged Steel Crank

Block:

  • NEW BluePrint Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.600" Bore
  • 1-Piece Rear Main Seal

Rotating Assembly:

  • Forged Steel Crank
  • 4.750" Stroke
  • 6.635" Connecting Rods
  • Forged Pistons
  • Internally Balanced Font and Rear

Cylinder Heads:

  • Brodix SR20 CNC Ported Heads
  • 95cc Chamber
  • 440 Intake Runner
  • 2.400" Intake / 1.800" Exhaust Valves

Cam Specs:

  • Solid Roller Cam
  • .873 Intake / .861 Exhaust Lift
  • .293 Intake / .304 Exhaust Duration
  • @.050-115 Degree Lobe Separation

Ignition Timing:

  • Controlled by ECU

Also Includes:

  • SR20 Head Super Victor II Intake Manifold
  • Holley Sniper Stealth 4500
  • MSD Pro Billet Distributor
  • SFI Harmonic Balancer
  • Spark Plugs & Wires
  • Timing Cover
  • Moroso Oil Pan

PLEASE NOTE: These engines have a varying lead time, please contact us for an accurate ETA
