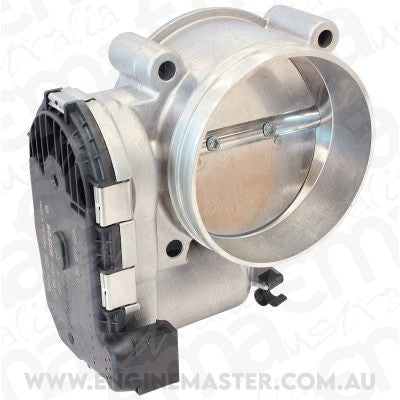

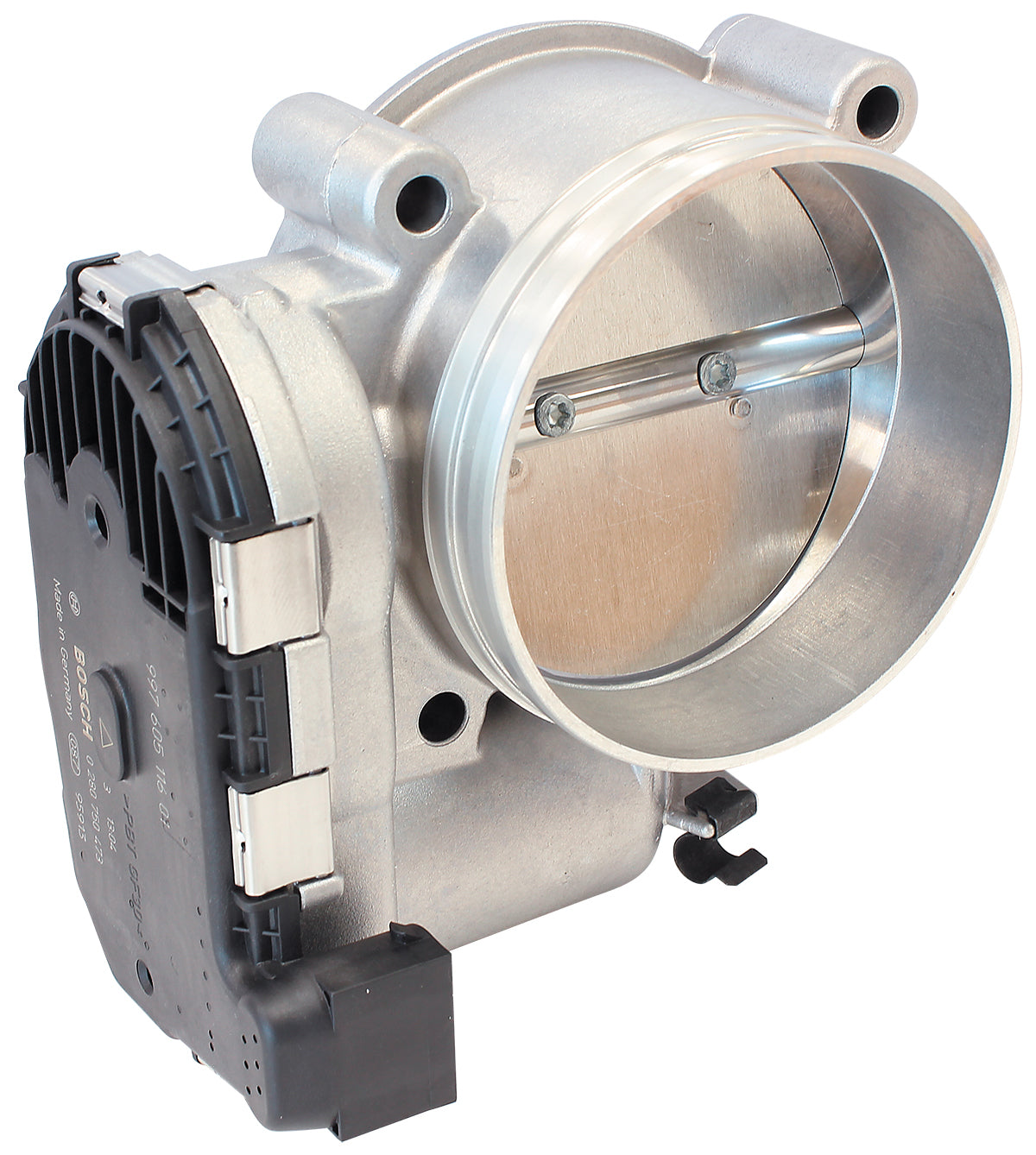

Bosch 82mm Electronic Throttle Body (Suit Drive By Wire Applications)

The Bosch Motorsport drive-by-wire (DBW) electronicthrottle bodies are designed to control the fresh air delivery into the engine electronically replacing the mechanical linkage from the accelerator pedal. This DBW setup will require three things to make it work: I. An accelerator pedal module (SoldSeparately 0 280 755 05), 2. Athrottle valve that can be opened and closed by an electric motor (DBW) and 3. A powertrain or engine control module (PCM or ECM) either factory or aftermarket. The DBW will work with all applications with flex-fuels, CNG and LPG if they are injected in the air stream after the throttle body. The DBW is great for custom applications when a large throttle body is required withboth 74mm and 82mm versions available for to suit various engine capacities. - Opening direction is counter clockwise - Two redundantsensors control the throttle position - DBW electronicthrottle bodies have an idle air position - Temperature range is -40 to 140 degrees C - Can be connected directly to PCM/ECM units with ETC functionality - Supply voltage is 6 to 16 V - Output signal I: 0 to 5 V for 0 to 90 degrees - Output signal II: 5 to 0 V for 0 to 90 degrees - Bosch Part Number: 0 280 750473
