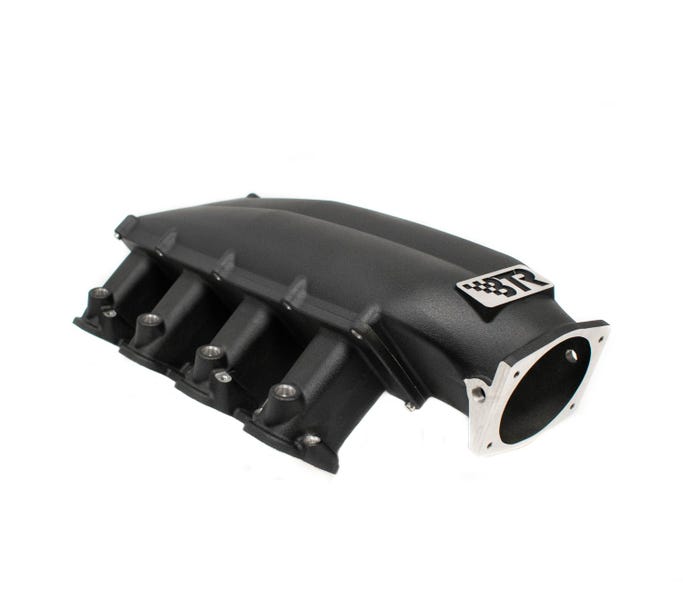

Brian Tooley Racing BTR-TRA-07-BLK Trinity LS7 Intake Manifold 102Mm

Brian Tooley Racing Trinity LS7 intake manifold 102mm BTR-TRA-07-BLK The latest offering from BTR in high quality cast aluminum intake manifolds! The TRInity is short runner, 3-piece design that allows for the ultimate in application flexibility. It is similar in concept to billet Intakes costing thousands more. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications. It utilizes the high LT1 throttle body position and will accept DBW or cabled throttle bodies*, but yet it will fit in the tight confines of the C7, C6, C5 Corvette as well as the popular F-body platforms. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped oÕrings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are achieved SAE oÕrings seated in a dovetailed oÕring groove. Both the port mouth radius and the port match is CNC machined. The TRInity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18Ó NPT on the rear. The manifold is available in Black Satin Texture powder coat. The manifold comes semi-assembled and includes all the hardware required to bolt it on. Runners and plenums can be purchased separately. BRIAN TOOLEY RACING PRODUCTS RaceMax Direct is proud to be AustraliaÕs home for Brian Tooley Racing. Products we stock directly from BTR include Equalizer Manifold LS, Brian Tooley Racing Rocker Arm LS, BTR Shaft Rocker Conversion LS3, BTR Shaft Rocker Conversion LS and Brian Tooley Racing Pushrods, BTR Camshafts and BTR Valve Spring Kits. Need something else from Brian Tooley Racing? Contact us today! Trade prices are available. Brian Tooley Racing (BTR) Ð the story Brian Tooley has been in the performance racing game for nearly three decades. Starting his own business back in 1992 called Total Engine Flow, Brian was using a Flowdata flow bench. Shifting to Holley Performance Products shortly afterwards, he helped develop the SysteMax head, intake and camshaft packages. Going back to working on his own in 1996 until 2004, Tooley then built Total Engine Airflow into an industry titan. Since then he sold his business to Summit Racing Equipment and stayed on until 2010 when he decided to be closer to family and friends. As his BTR webpage revealed, it wasnÕt long before Brian was back after seeing a need for quality spring kits at affordable prices.
