Callies Performance

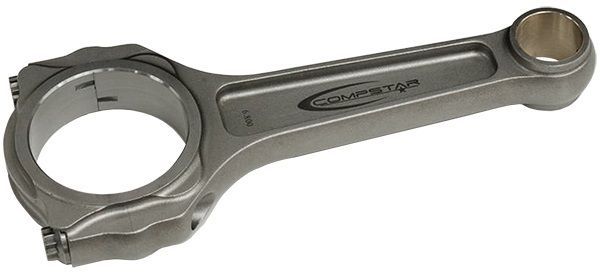

Callies CACSB6700ES3B9AI Compstar Series Forged I-Beam Conrod Set 6.700" Chev BB

Callies CACSB6700ES3B9AI Compstar Series Forged I-Beam Conrod Set 6.700" Chev BB

CACSB6700ES3B9AI
$1,626.10 AUD
$1,626.10 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
CALLIES COMPSTAR SERIES HD FORGED I-BEAM CONROD SET 6.700" CHEV BB CACSB6700ES3B9AI
Callies Compstar heavy-duty series connecting rods provide high value without compromise! These rods are designed with heavy-duty stroker motors in mind from the start. Bolt upgrades and stroker clearance are standard equipment with Compstar rods, not an afterthought! Callies Compstar heavy-duty connecting rods allow for trouble-free engine builds, with every detail carefully analyzed for maximum dependability.
Features include:
* Pre-honed and chamfered pin bushings for proper high performance oil clearance
* Generously chamfered parting line edges resist scraping during insertion of bearing shells
* Bearing locating tab slots are de-burred to ensure tab is fully seated
* Strengthening gussets on bolt spot-face area of the cap to increase strength and dimensional stability
* Big end bores stay round, regardless of how many times the rods are disassembled and reassembled
* Reduced weight without sacrificing strength and durability, designed with a high strength-to-weight ratioSpecs:
Application: Chev big block Mark IV 396-454 C.I.D.
Connecting Rod Length Center to Center (in): 6.700 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Steel
Connecting Rod Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: L19 alloy
Fastener Yield Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 829
Rod Journal Diameter (in): 2.200 in.
Big End Bore Diameter (in): 2.3250 in.
Pin End Bore Diameter: 0.990 in.
Big End Width (in): 0.990 in.
Pin End Width (in): 1.050 in.
Advertised Horsepower Rating (hp): 850 hp
Advertised RPM Rating: 7,500 rpm
Weight Matched Se Yes
Remanufactured: No
Magnafluxed: Yes
Quantity: Sold as a set of 8.
Notes: Custom pistons required when using connecting rods with any length other than OE.




Manufacturer Part Number:
