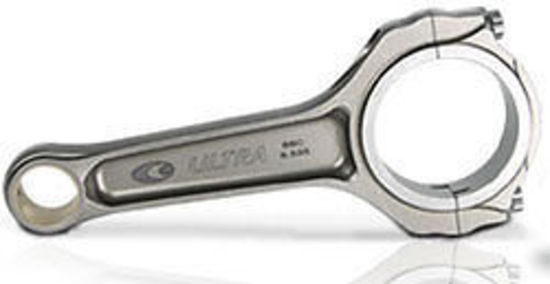

Chev Small Block V8 Ultra Forged I-Beam Conrod Set 6.250"

Product Information

Callies Ultra connecting rods are produced from extremely clean Timken steel that is formulated to our exact specifications. This proprietary steel is forged in Trenton, Michigan, and manufactured 100% in our Fostoria, Ohio facility. Pride in workmanship, and attention to detail are qualities you'll discover during careful examination of our finished product. Each step of the manufacturing history of every Ultra rod is meticulously maintained by our manufacturing team. You can be confident of the material and workmanship of these quality components.

Application: Chevy small block Gen I 262-400ci V8.

• Connecting Rod Length Center to Center (in): 6.250 in.
• Connecting Rod Beam Style: I-beam
• Connecting Rod Material: Forged 4330 steel
• Connecting Rod Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: No
• Cap Retention Style: Cap screw
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 7/16 in.
• Connecting Rod Bolt Material: L19 alloy
• Fastener Yield Strength (psi): 260,000 psi
• Connecting Rod Bolt Head Style: 12-point
• Approximate Connecting Rod Weight (g): 666
• Rod Journal Diameter (in): 2.100 in.
• Big End Bore Diameter (in): 2.2250 in.
• Pin End Bore Diameter: 0.927 in.
• Big End Width (in): 0.940 in.
• Pin End Width (in): 0.988 in.
• Advertised Horsepower Rating (hp): 1,500 hp
• Weight Matched Se Yes
• Remanufactured: No
• Magnafluxed: Yes
• Quantity: Sold as a set of 8.
