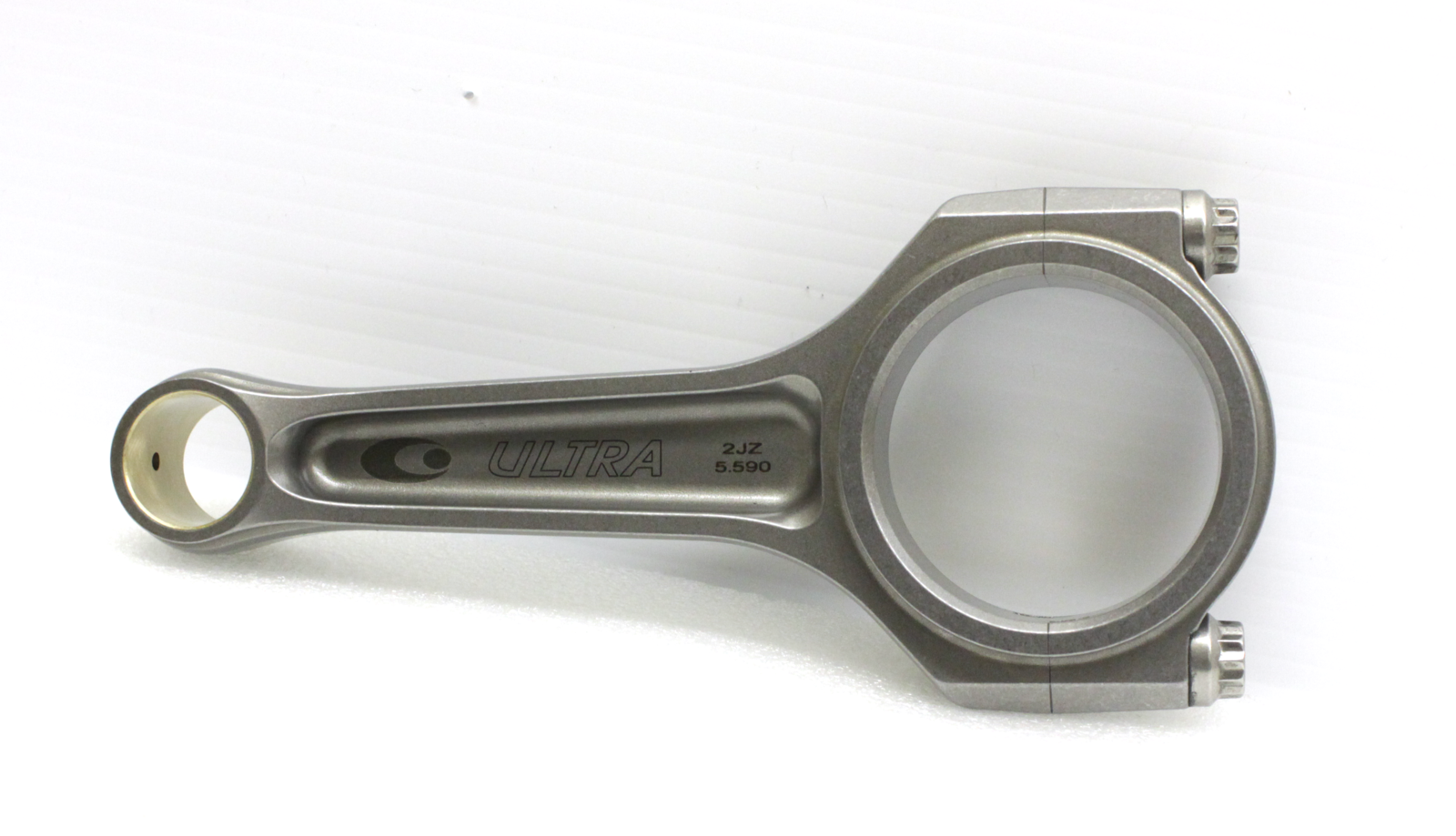

Callies CAU18100-3.5 Ultra Forged I-Beam Conrod Set 5.590" for For Toyota 2Jz Engines

Ultra Forged I-Beam Conrod Set 5.590" for For Toyota 2Jz Engines

Skip to product information
1 of 2
Callies Performance Part No. CAU18100-3.5
Regular price $3,692.95 AUD
Regular price Sale price $3,692.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CAU18100-3.5

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Ultra connecting rods are made entirely in the U.S.A. Every Ultra connecting rod is produced from specially formulated Timken 4330V steel. This material is then precision forged in Michigan and fully machined in our Fostoria, Ohio facility. Many geometric nuances have been incorporated into the design of Ultra connecting rods. These design features enhance the Ultra against specific loads and stresses which are applied to connecting rods subjected to high load, high RPM applications. Ultra connecting rods are fastened by high alloy cap screws made specifically for severe duty service by ARP Inc. Produced with rolled threads, these unique bolts offer improved thread engagement for a smoother more consistent net clamping load. To eliminate deformation and extrusion only AMS 642 bronze alloy is used within the wrist pin housing bore.



Application: Toyota 2JZ engines.

Connecting Rod Length Center to Center (in): 5.590 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Steel
Wrist Pin Style: FloatingCap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: ARP Multi Phase 3.5 bolts
Approximate Connecting Rod Weight (g): 635
Wrist Pin (in): 0.866 in.
Quantity: Sold as a set of 6.

Product Information

Ultra connecting rods are made entirely in the U.S.A. Every Ultra connecting rod is produced from specially formulated Timken 4330V steel. This material is then precision forged in Michigan and fully machined in our Fostoria, Ohio facility. Many geometric nuances have been incorporated into the design of Ultra connecting rods. These design features enhance the Ultra against specific loads and stresses which are applied to connecting rods subjected to high load, high RPM applications. Ultra connecting rods are fastened by high alloy cap screws made specifically for severe duty service by ARP Inc. Produced with rolled threads, these unique bolts offer improved thread engagement for a smoother more consistent net clamping load. To eliminate deformation and extrusion only AMS 642 bronze alloy is used within the wrist pin housing bore.



Application: Toyota 2JZ engines.

Connecting Rod Length Center to Center (in): 5.590 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Steel
Wrist Pin Style: FloatingCap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: ARP Multi Phase 3.5 bolts
Approximate Connecting Rod Weight (g): 635
Wrist Pin (in): 0.866 in.
Quantity: Sold as a set of 6.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Callies Performance
MPN
Not provided
UPC
Not provided
Our Part Number
CAU18100-3.5

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Callies Performance

Callies Performance products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
