Chevrolet Performance LT4 6.2L Supercharged Wet Sump Crate Engine 19431955
Product Information

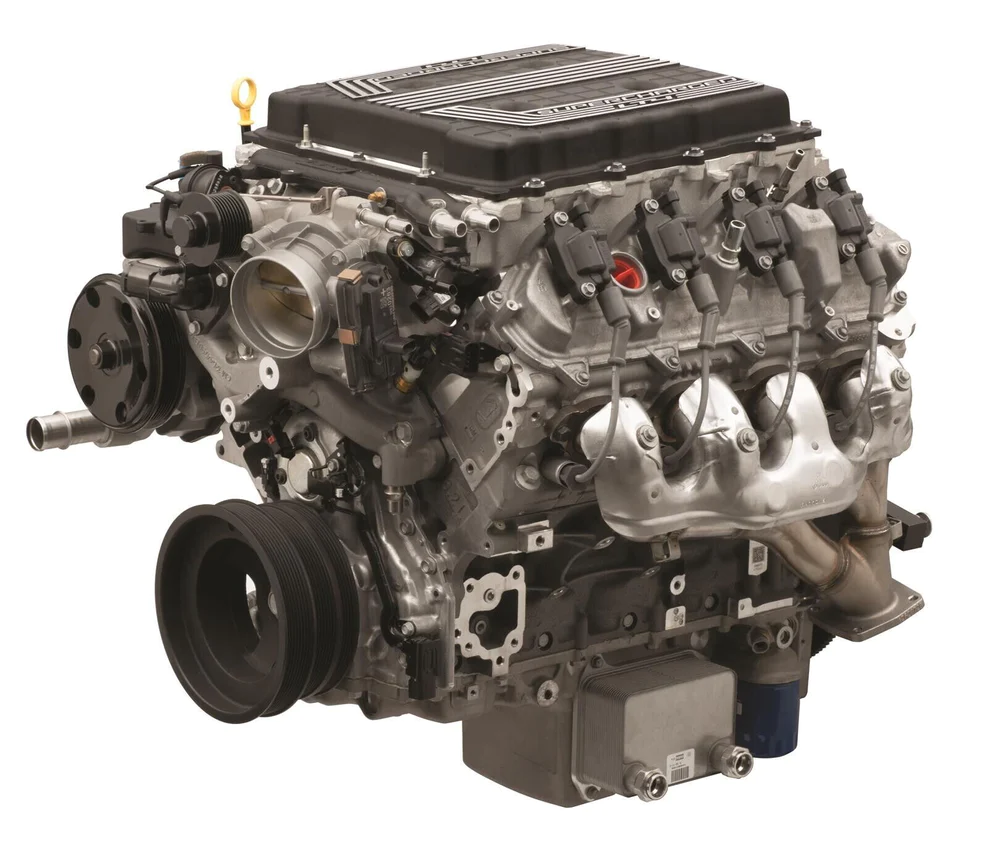

Chevrolet Performance LT4 6.2L Supercharged Wet Sump Crate Engines
Chevrolet Performance LT4 6.2L supercharged wet sump crate engines are engineered for supremacy. These powerhouses are the heart of the Corvette Z06 and feature 1.7L Eaton R1740 TVS superchargers spinning up to 20,000 rpm--enough to generate more than 9 lbs. of boost, along with big horsepower and torque. These LT4 long blocks have several unique features designed to support their higher output and the greater cylinder pressures created by forced induction. They include Rotocast A356 T-6 aluminum cylinder heads that are stronger and handle heat better than conventional castings, lightweight titanium intake valves, and stronger forged aluminum pistons.
Technical specs:
* Engine type: Gen V small block V8
* Displacement: 376 c.i.d.
* Bore x stroke: 4.065 in. x 3.622 in.
* Block: Cast aluminum with 6-bolt, cross-bolted main caps
* Crankshaft: Forged steel
* Connecting rods: Forged powdered metal steel
* Pistons: Forged aluminum
* Compression ratio: 10.0:1
* Camshaft type: Hydraulic roller
* Valve lift: .492 in. intake/.551 in. exhaust
* Camshaft duration (at .050 in.): 189 degrees intake/223 degrees exhaust
* Cylinder heads: A356 T-6 Rotocast aluminum, as-cast with 65.5cc chambers
* Valve size: 2.130 in. intake/1.590 in. exhaust
* Recommended fuel: Premium pump
* Maximum recommended rpm: 6,600
* Please note: Assembly does not include any electronics
Crate Engine Family: Chevy LT Gen V
Actual Engine Displacement: 6.2L/376
Crate Engine Cylinder Head Material: Aluminum
Engine Block Material: Aluminum
Advertised Compression Ratio: 10.0:1
Assembled: Yes
Engine Balance: Internal
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: Yes
Intake Manifold Style: Fuel Injection
Cylinder Heads Included: Yes
Carburetor Included: No
Throttle Body Included: Yes
Distributor Included: No
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: Yes
Flywheel Included: No
Air Cleaner Included: No
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Supercharger Included: Yes
Supercharger Model: Eaton TVS 1740
Quantity: Sold individually.
Notes: Requires premium grade fuel.
