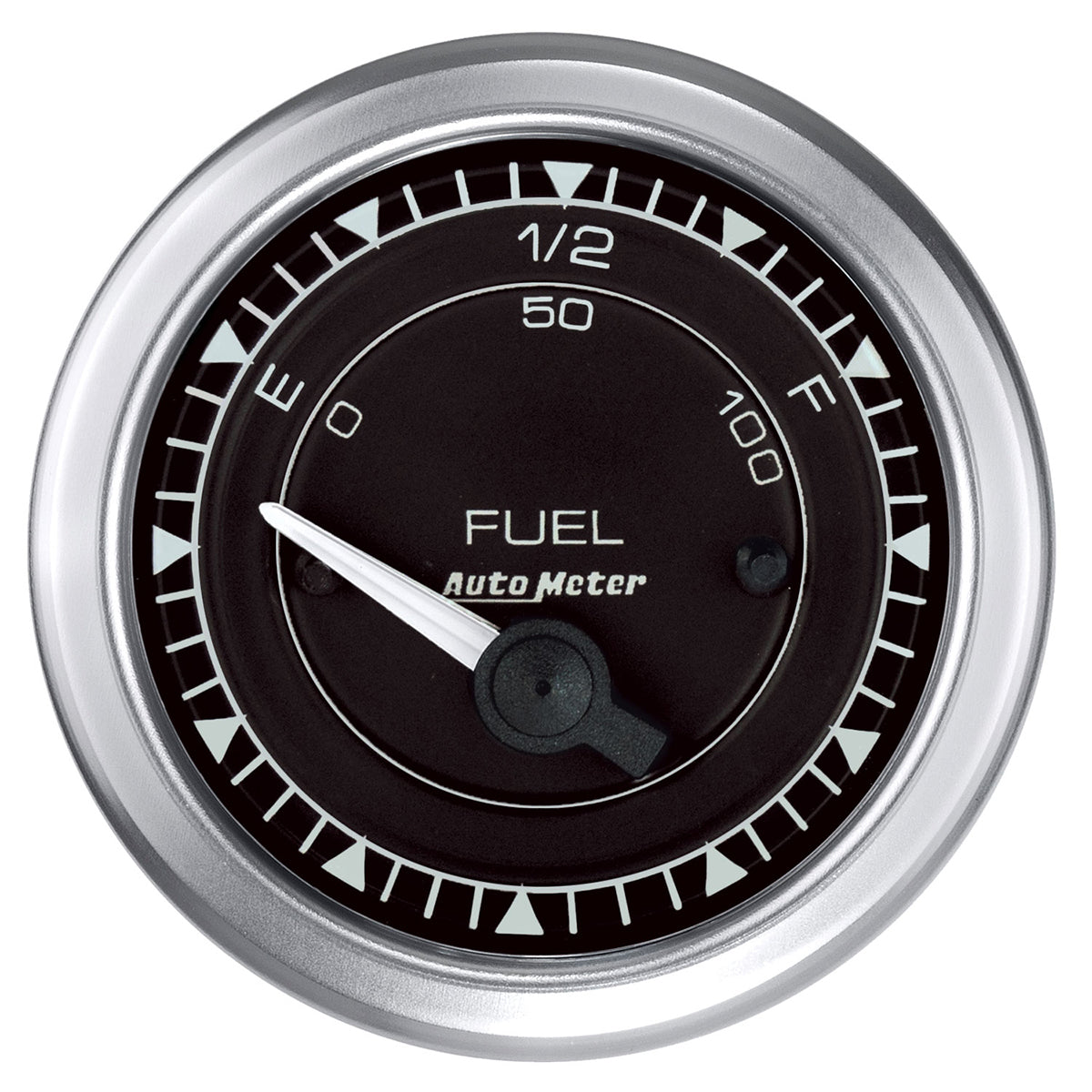

AutoMeter 8114 2-1/16" FUEL LEVEL, 0-90 Ohm, CHRONO

8114 2-1/16" FUEL LEVEL, 0-90 Ohm, CHRONO

1 2
AutoMeter
AutoMeter Part No. AU8114
$185.96 AUD
$204.80 AUD $185.96 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU8114

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Product Information

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Technical Information

Features
• Unique three dimensional dial design gives added depth and style to your custom dash
• Works with most 1965 to 1997 Chevrolet/GM senders
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes mounting hardware and detailed instructions for installation
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074081149
Our Part Number
AU8114
Series: CHRONO
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Bright Anodized
Bezel Style: Stack
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED
Lighting Color: White
Pointer Color: White
Movement: Electric, Air-Core
Gauge Type: Fuel Level
Range: 0 O Empty / 90 O Full
Related Item: 2160, BEX-5000, EP-800, 0423XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Fitment

Confirm compatibility with our team before ordering when your application is not listed.
