Fits Ford Small Block Cleveland 302-351C.I.D. V8 TRUE ROLLER TIMING SET suit 302-351C.005" U/ SIZE Cloyes Gear CY9-3121-5

Fits Ford Small Block Cleveland 302-351C.I.D. V8 TRUE ROLLER TIMING SET suit 302-351C.005" U/ SIZE Cloyes Gear CY9-3121-5

Skip to product information
1 of 2

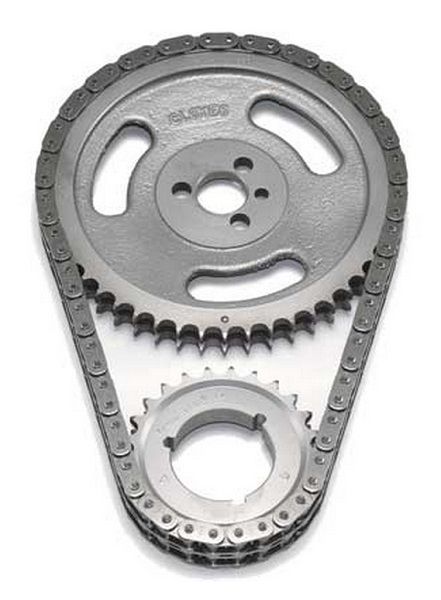

Cloyes Gear Part No. CY9-3121-5
Regular price $312.80 AUD
Regular price Sale price $312.80 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CY9-3121-5

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Introduced in 1970 - the one that started it all! Our competitors may say they have a true roller but only Cloyes has the original. The Original True Roller remains the benchmark against which all others are measured. Cam sprockets are machined from premium ductile iron or induction hardened cast iron. The three keyway billet steel crank sprockets are induction hardened then oil-quenched using our in-house multi-stage heat treat process. Our Premium True Roller chain features superior strength with full roller action. Side plates are cut and shaved from high strength steel and heat-treated for maximum fatigue resistance. The.250" rollers are "cold rolled" and hardened to exacting standards increasing load and RPM capabilities. All Original True sets are hand-matched at our manufacturing facility qualifying centre distance and run-out, ensuring you the best with every set

Product Information

Introduced in 1970 - the one that started it all! Our competitors may say they have a true roller but only Cloyes has the original. The Original True Roller remains the benchmark against which all others are measured. Cam sprockets are machined from premium ductile iron or induction hardened cast iron. The three keyway billet steel crank sprockets are induction hardened then oil-quenched using our in-house multi-stage heat treat process. Our Premium True Roller chain features superior strength with full roller action. Side plates are cut and shaved from high strength steel and heat-treated for maximum fatigue resistance. The.250" rollers are "cold rolled" and hardened to exacting standards increasing load and RPM capabilities. All Original True sets are hand-matched at our manufacturing facility qualifying centre distance and run-out, ensuring you the best with every set

Technical Information

Features
Ductile Iron or Induction Heat-Treated Cast Iron Cam Sprocket
Induction Heat-Treated, Billet Steel, Crank Sprocket
3 Keyways allow +/- 4 degrees
Premium True Roller Chain with.250" Diameter Rollers
Hand Matched to qualify both centre distance and run-out
Specifications
Manufacturer
Cloyes Gear
MPN
Not provided
UPC
Not provided
Our Part Number
CY9-3121-5
Timing Chain Style: Double roller
Maximum Advance/Retard at Camshaf 2 degree: Maximum Advance/Retard at Crankshaf 4 degree
Thrust Bearing Included: No
Offset Bushings Included: No
Gaskets Included: No
Bolts/Studs Included: No
Cam Sprocket Material: Iron
Crank Sprocket Material: Billet steel
Quantity: Sold as a set
Notes: Will not fit factory roller camshaft applications. Has a reduced center distance of -0.005 in., to 5.039 in. standard center distance
