COMP Cams 26926TS-KIT GM LS Dual Valve Spring Kit w/ Tool Steel Retainers, .675" Max Lift

26926TS-KIT GM LS Dual Valve Spring Kit w/ Tool Steel Retainers, .675" Max Lift

1 2
COMP Cams
COMP Cams Part No. CO26926TS-KIT
$1,391.45 AUD $1,321.88 AUD SAVE 5% Applied automatically in cart · Ends Mon 8am AEDT
Taxes included. Shipping calculated at checkout.

CO26926TS-KIT

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

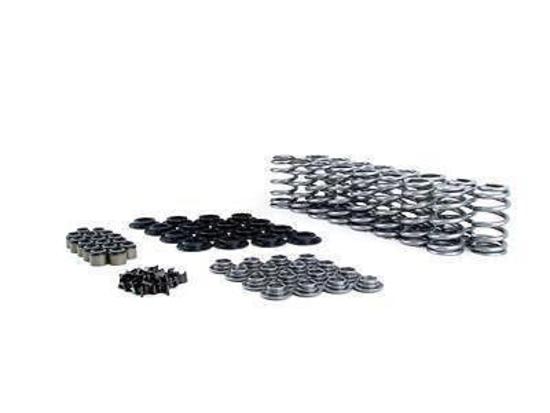

This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, retainers, locks, Seals and spring seats. With a .675" maximum lift, these COMP Cams Dual Valve Springs for street/strip Applications are manufactured from Super Cleanâ„¢ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.

Product Information

This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, retainers, locks, Seals and spring seats. With a .675" maximum lift, these COMP Cams Dual Valve Springs for street/strip Applications are manufactured from Super Cleanâ„¢ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.

Technical Information

Features
Number of Springs Per Valve Dual
Outside Diameter of Outer Spring (in) 1.320 in
Damper Spring Included Yes
Spring Rate (lbs/in) 505 lbs./in
Inside Diameter of Inner Spring (in) 0.654 in
Valve Spring Style Standard
Coated No
Retainers Included Yes
Retainer Material Steel
Locks Included Yes
Lock Style 7 degree
Lock Groove Quantity 1-groove
Lock Material Hardened steel
Quantity Sold as a kit
Installed Height (in) 1.835 in
Seat Pressure at Installed Height (lbs) 129 lbs
Open Height (in) 1.160 in
Open Pressure (lbs) 470 lbs
Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584225409
Our Part Number
CO26926TS-KIT
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Bind Height: 1.1
Seat Height: 1.835
Seat Pressure: 129
Amazon ASIN: B003NNMEN2
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
