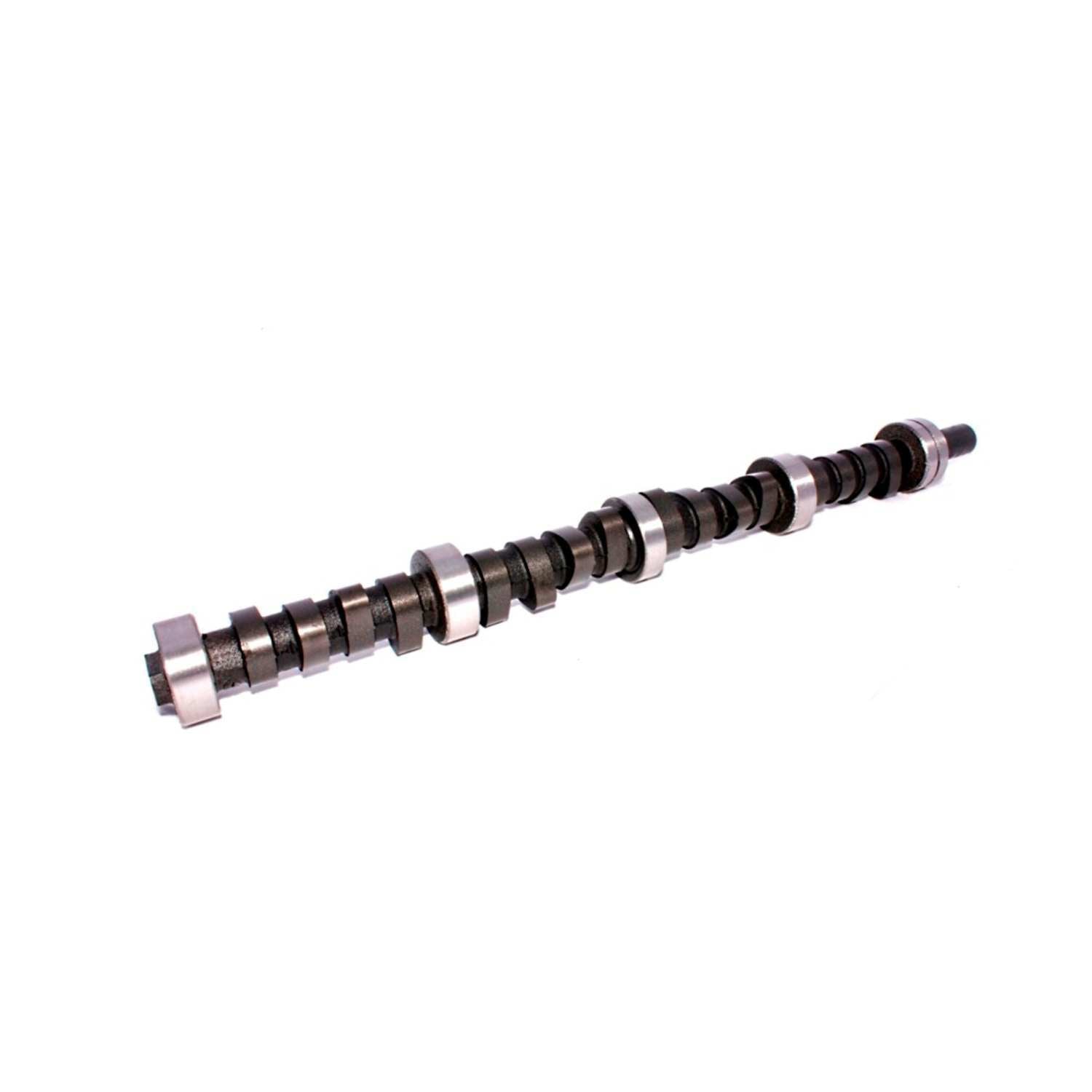

COMP Cams 10-214-5 Xtreme Energy 212/218 Hydraulic Flat Cam for AMC 290-401

10-214-5 Xtreme Energy 212/218 Hydraulic Flat Cam for AMC 290-401

Name: COMP Cams 10-214-5 Xtreme Energy 212/218 Hydraulic Flat Cam for AMC 290-401
Brand: COMP Cams
SKU: CO10-214-5
Price: 746.95 AUD
Availability: OutOfStock

1 1

COMP Cams

COMP Cams Part No. CO10-214-5

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO10-214-5

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.

Product Information

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584069942
Our Part Number: CO10-214-5

Grind Number: XE256H
Basic Operating RPM Range: 1,200-5,200
Intake Duration at .050 Inch Lift: 212
Exhaust Duration at .050 inch Lift: 218
Advertised Intake Duration: 256
Advertised Exhaust Duration: 268
Lobe Separation: 110
Intake Valve Lift: 0.477
Exhaust Valve Lift: 0.484
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: American Motors 290-401 c.i. 8 Cylinder (1966-1991)
Cam and Lifter Kit Upgrade: CL10-214-5
K-Kit Upgrade: K10-214-5
Lifter Type: Hydraulic Flat Tappet
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade: SK10-214-5
Amazon ASIN: B000VU7QLA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: XE256H
Camshaft Series: Magnum
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
