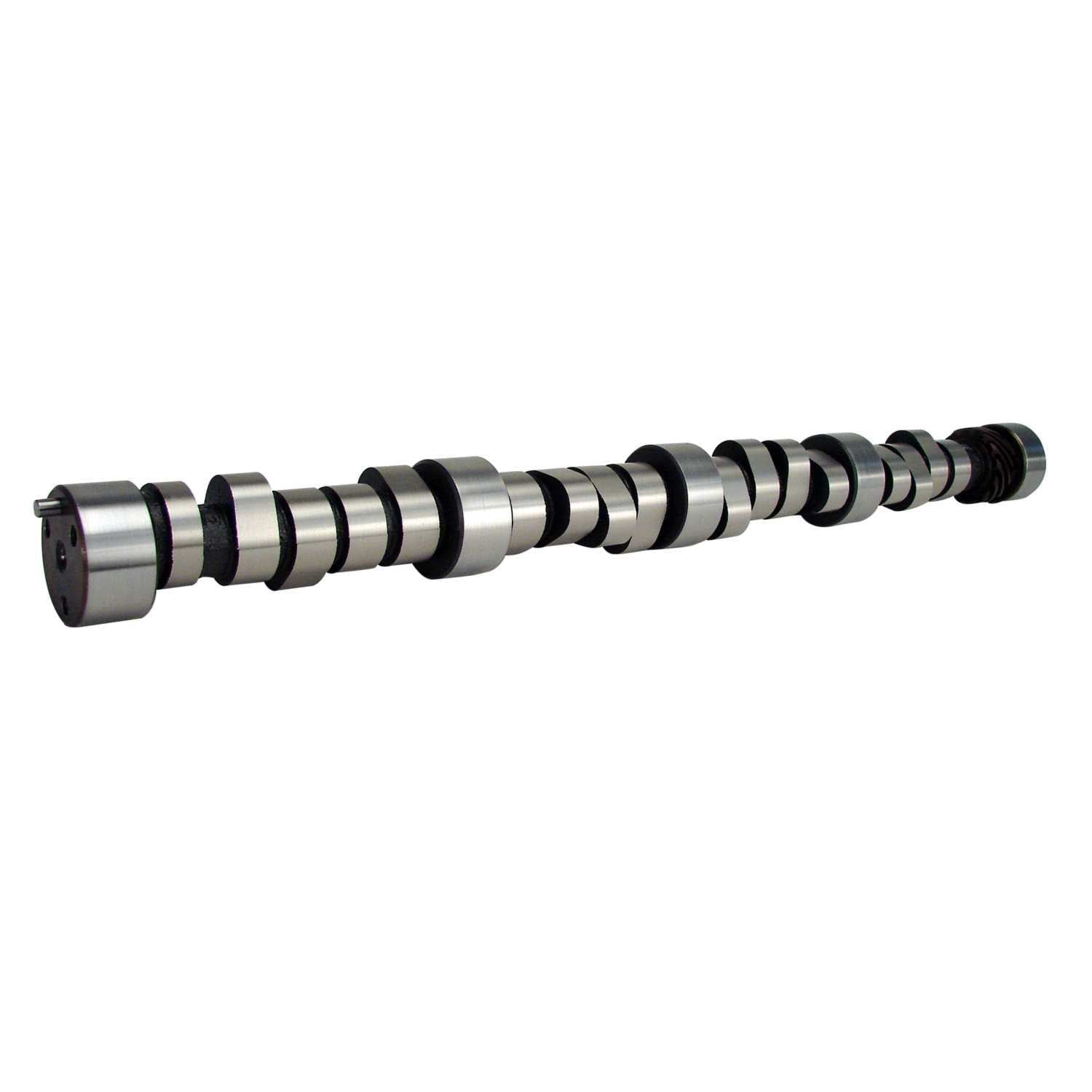

COMP Cams 11-409-8 Nitrous HP 224/236 Hydraulic Roller Cam for Chevrolet Big Block 396-454

11-409-8 Nitrous HP 224/236 Hydraulic Roller Cam for Chevrolet Big Block 396-454

Skip to product information
1 of 1
COMP Cams Part No. CO11-409-8
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO11-409-8

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.

Product Information

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584081463
Our Part Number
CO11-409-8
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: NX273HR
Camshaft Series: Nitrous HP
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: NX273HR
Basic Operating RPM Range: 1,800-5,800
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 273
Advertised Exhaust Duration: 296
Lobe Separation: 113
Intake Valve Lift: 0.537
Exhaust Valve Lift: 0.547
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
SK-Kit Upgrade: SK11-409-8
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade: CL11-409-8
Lifter Type: Hydraulic Roller
K-Kit Upgrade: K11-409-8
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Amazon ASIN: B000P5G58G
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
