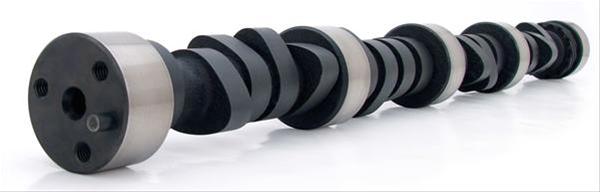

COMP Cams 12-254-20 Xtreme Energy NIT 250/256 Hydraulic Flat Cam for Chevrolet Small Block

12-254-20 Xtreme Energy NIT 250/256 Hydraulic Flat Cam for Chevrolet Small Block

Name: COMP Cams 12-254-20 Xtreme Energy NIT 250/256 Hydraulic Flat Cam for Chevrolet Small Block
Brand: COMP Cams
SKU: CO12-254-20
Price: 891.45 AUD
Availability: OutOfStock

1 1

COMP Cams

COMP Cams Part No. CO12-254-20

$891.45 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO12-254-20

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Product Information

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584177913
Our Part Number: CO12-254-20

Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Nitrided Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B002EE2FYY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: XE294H
Camshaft Series: Xtreme Energy
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: XE294H
Basic Operating RPM Range: 2,800-7000
Intake Duration at .050 Inch Lift: 250
Exhaust Duration at .050 inch Lift: 256
Advertised Intake Duration: 294
Advertised Exhaust Duration: 306
Lobe Separation: 110
Intake Valve Lift: 0.519
Exhaust Valve Lift: 0.523

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
