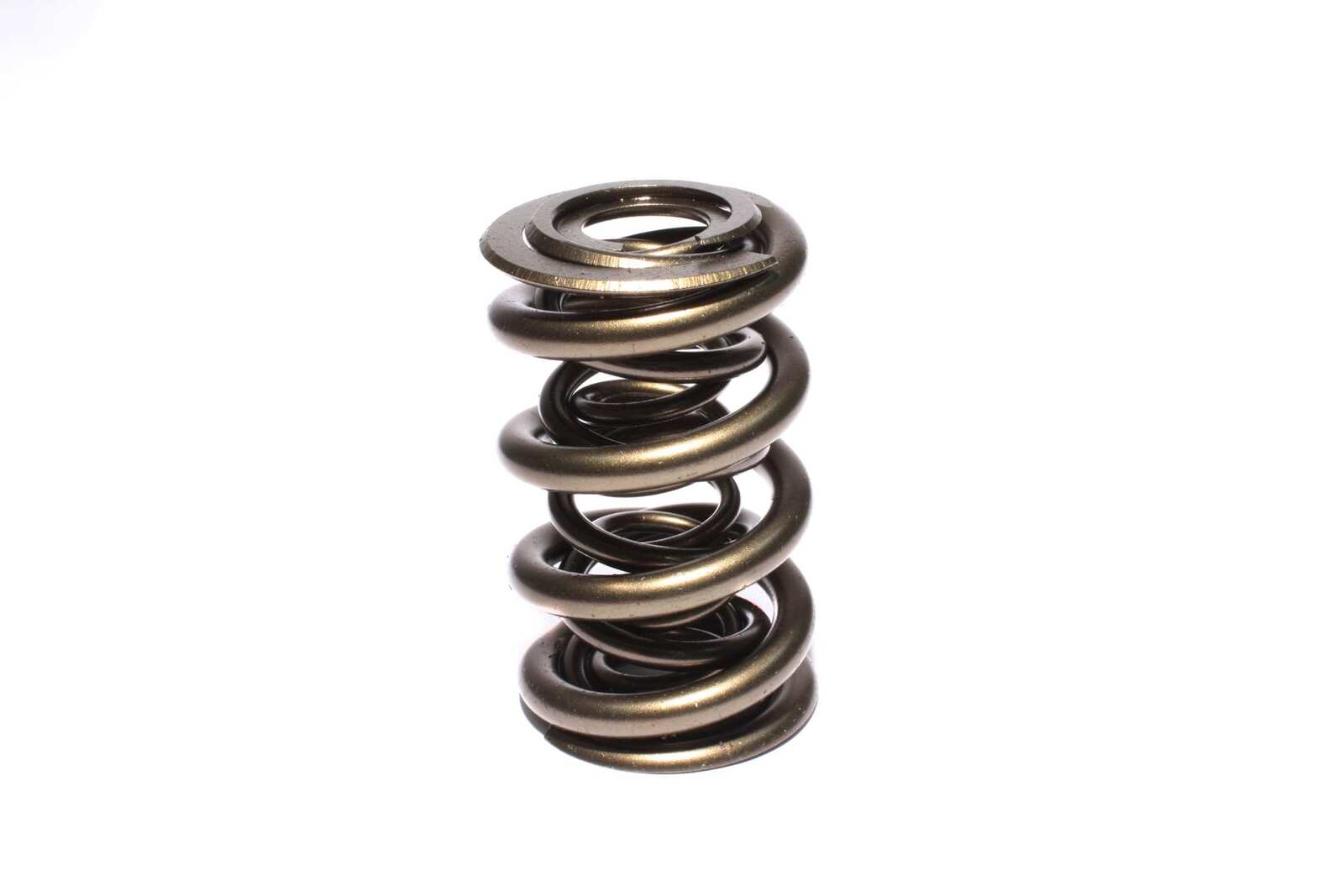

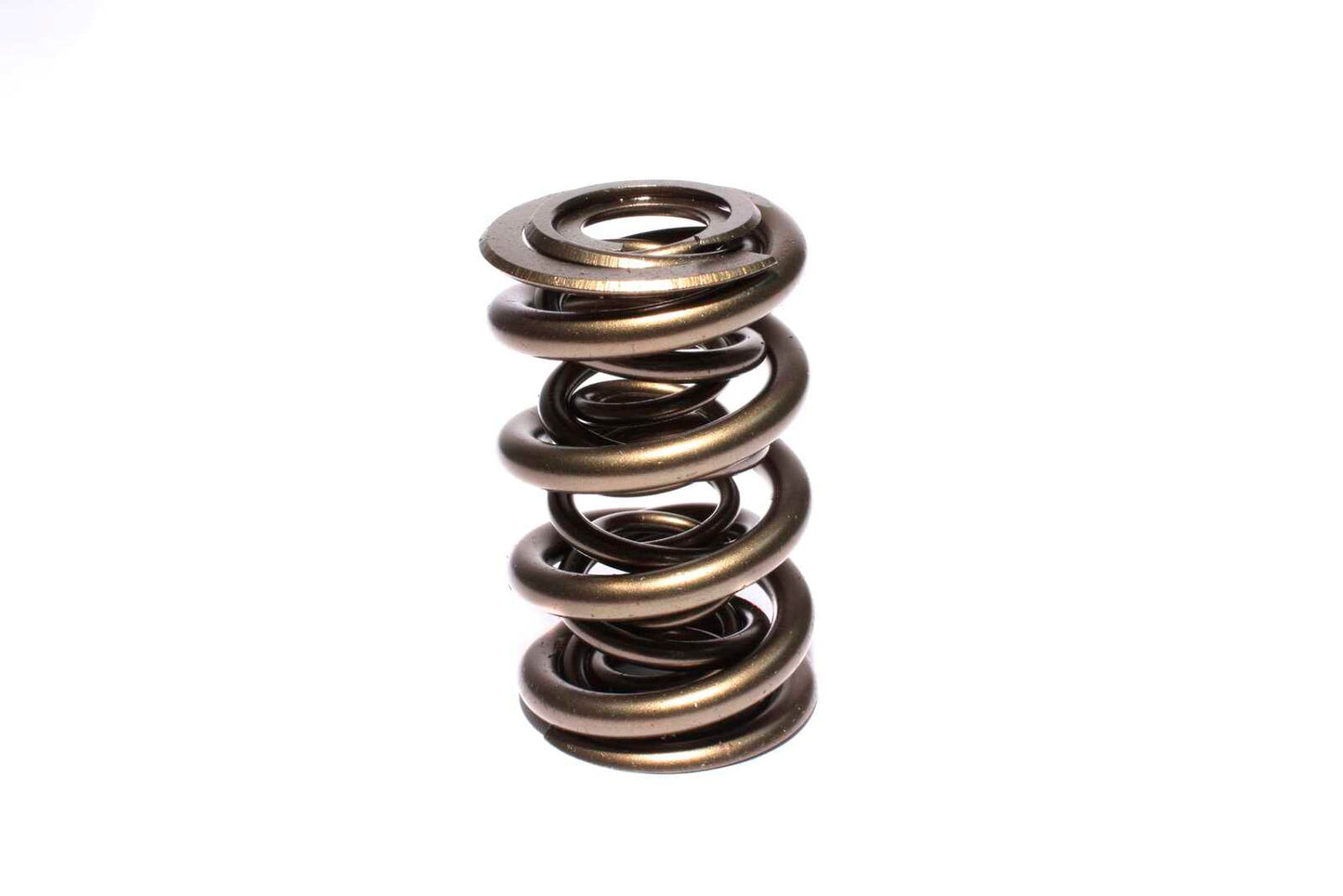

COMP Cams 26028-1 Race Extreme 1.686" OD Triple Spring, 2.200" Installed Height, 1 Spring

26028-1 Race Extreme 1.686" OD Triple Spring, 2.200" Installed Height, 1 Spring

Skip to product information
1 of 1
COMP Cams Part No. CO26028-1
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO26028-1

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Elite Race Triple Valve Springs from COMP Cams have a 1.000" maximum lift and outside diameter of 1.677". Designed for use with Roller cams and with a 9,000 to 10,000 RPM capacity, they are widely used in Pro Stock and Competition Eliminator, as well as marine and tractor pull Applications.

Product Information

Elite Race Triple Valve Springs from COMP Cams have a 1.000" maximum lift and outside diameter of 1.677". Designed for use with Roller cams and with a 9,000 to 10,000 RPM capacity, they are widely used in Pro Stock and Competition Eliminator, as well as marine and tractor pull Applications.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584077626
Our Part Number
CO26028-1
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Bind Height: 1.161
Compatible .570" Guide Diameter Spring Seats: 4786-1
Compatible Retainer: 739-1
Compatible Shims: 4756
Compatible Spring Cup (O.D. Locator): 4708-1
Damper: No
Inner Spring Inside Diameter: 0.864/0.624
Number of Springs: 3
Outer Spring Inside Diameter: 1.203
Outer Spring Outside Diameter: 1.686
Seat Height: 2.2
Seat Pressure: 342
Spring Rate: 712
Valve Spring Series: Race Extreme
Amazon ASIN: B001GBVJ7K
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
