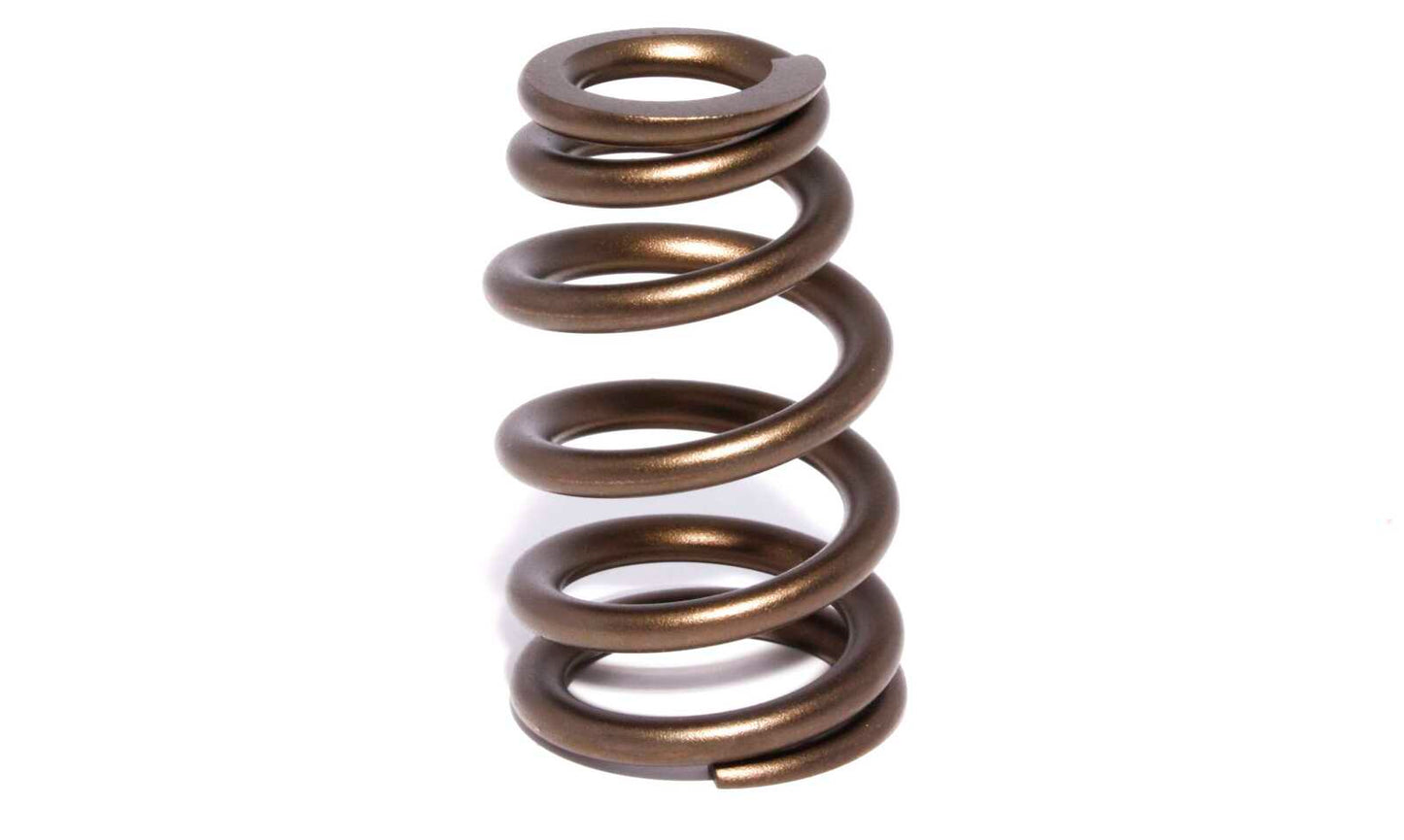

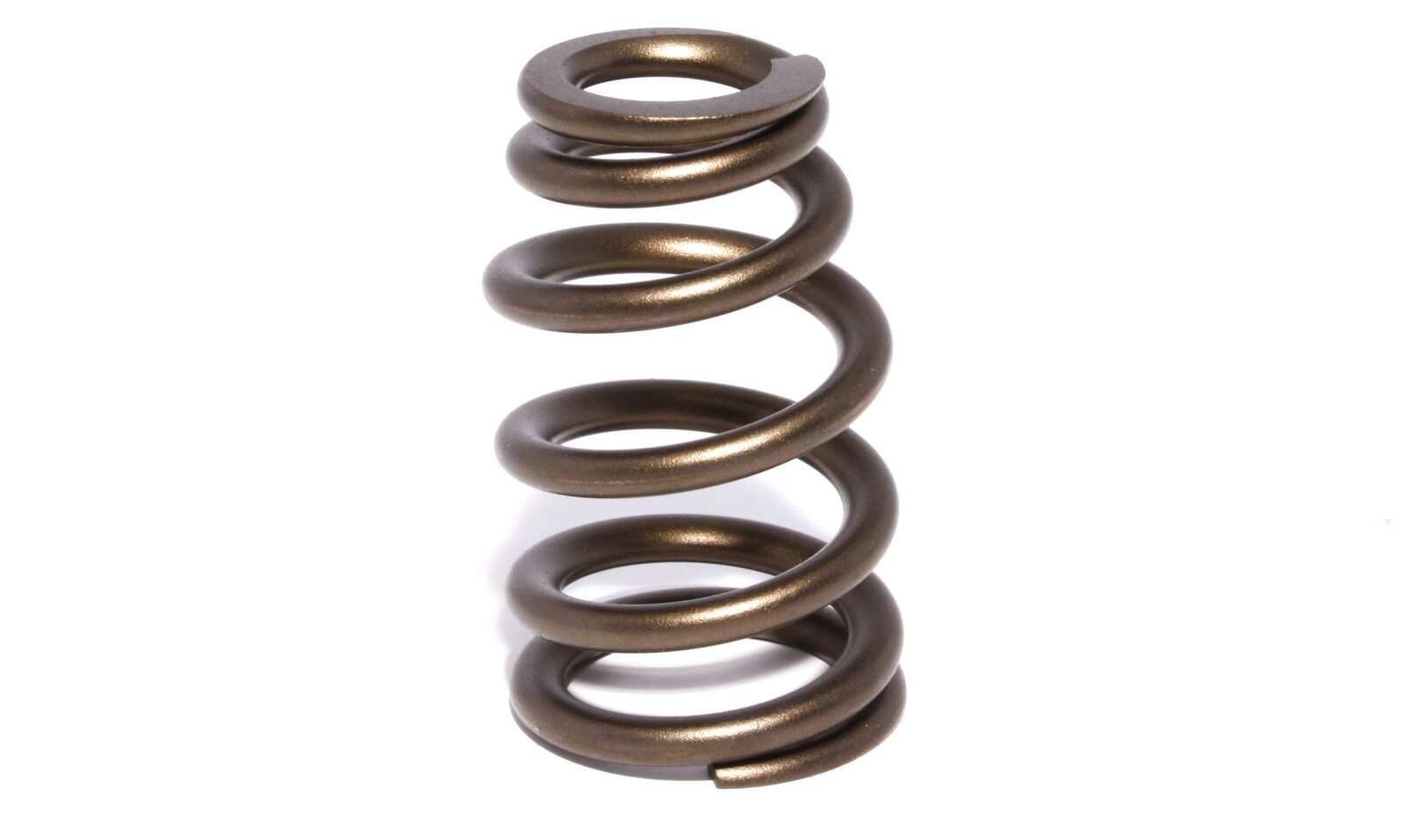

COMP Cams 26055-1 Race Sportsman 1.585" OD Beehive Spring, 1.925" Installed Height, 1 Spring

26055-1 Race Sportsman 1.585" OD Beehive Spring, 1.925" Installed Height, 1 Spring

Skip to product information
1 of 1
COMP Cams Part No. CO26055-1
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO26055-1

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

With a .640" maximum lift, these Beehive Valve Springs were designed for high end Solid flat tappet and hydraulic Roller cams. They have great for high performance street and oval track capabilities, and are also good for endurance Applications.

Product Information

With a .640" maximum lift, these Beehive Valve Springs were designed for high end Solid flat tappet and hydraulic Roller cams. They have great for high performance street and oval track capabilities, and are also good for endurance Applications.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584132141
Our Part Number
CO26055-1
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Outer Bottom Spring Outside Diameter: 1.585
Spring Rate: 400
Seat Pressure: 150
Seat Height: 1.925
Outer Top Spring Outside Diameter: 1.204
Outer Top Spring Inside Diameter: 0.721
Outer Bottom Spring Inside Diameter: 1.102
Coil Bind Height: 1.225
Number of Springs: 1
Damper: No
Compatible Spring Cup (O.D. Locator): 4702-1
Compatible Shims: 4757
Compatible Retainer: 785-1
Compatible .630" Guide Diameter Spring Seat: 4697-1
Compatible .570" Guide Diameter Spring Seat: 4640-1
Valve Spring Series: Race Sportsman
Amazon ASIN: B001GBO8BY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
