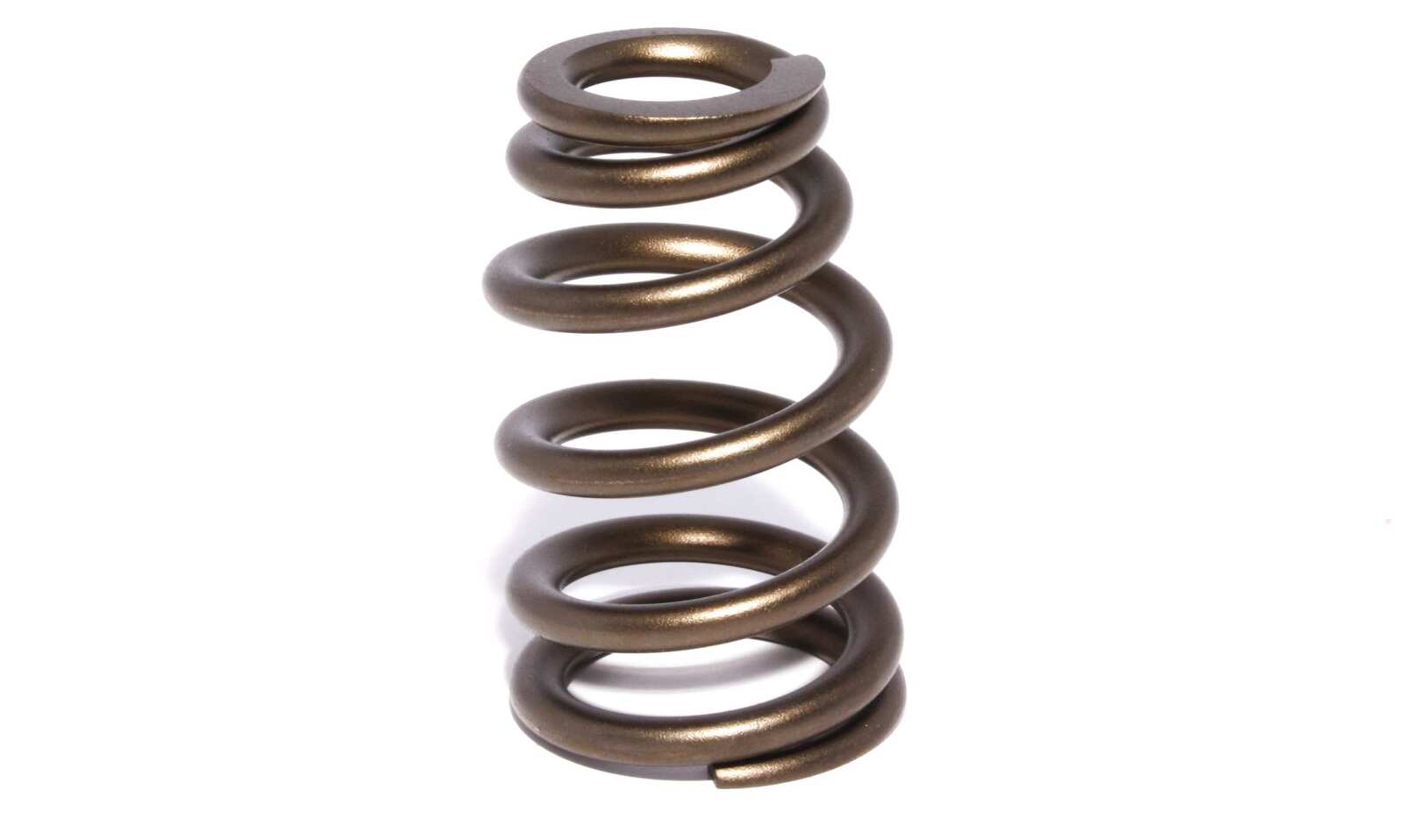

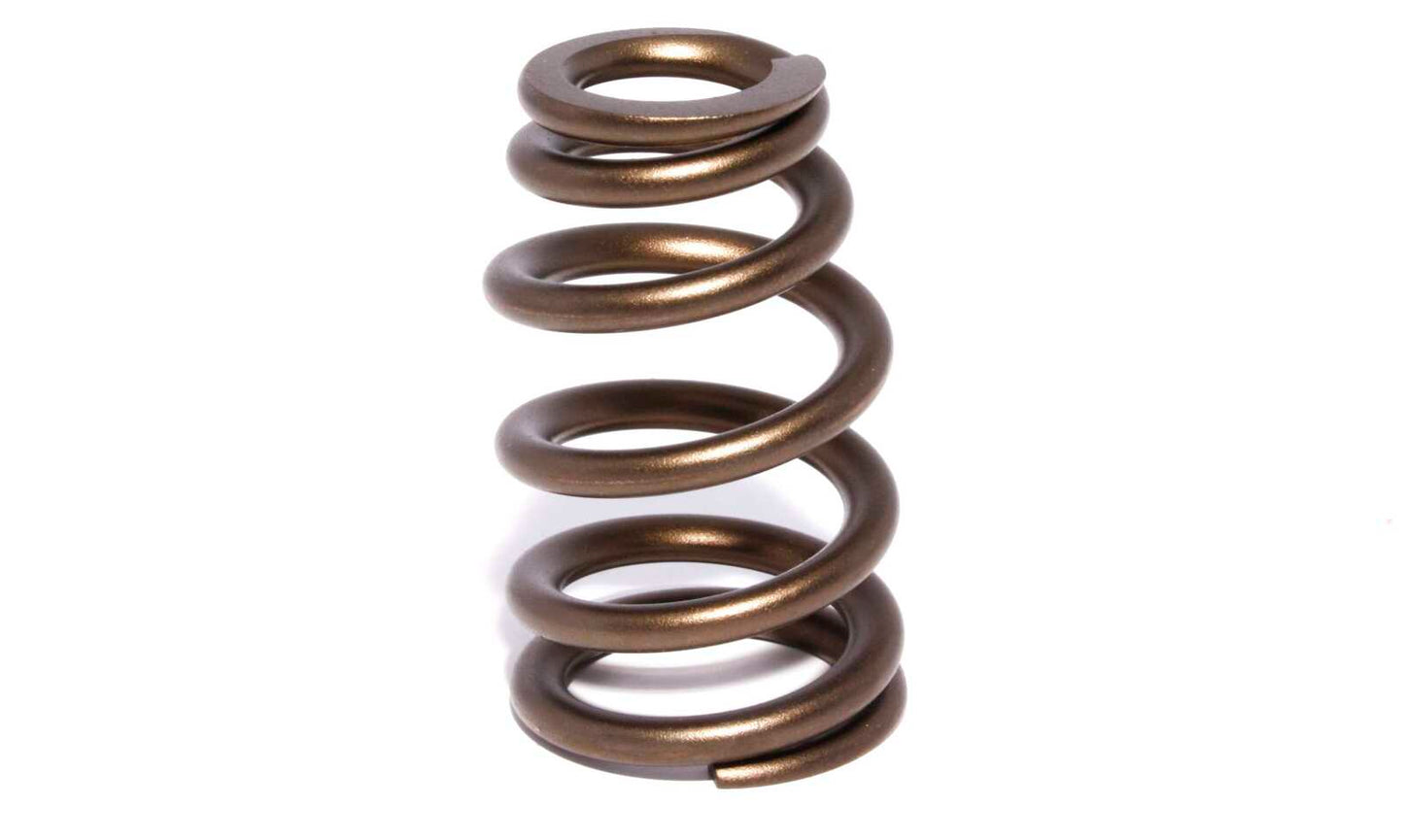

COMP Cams 26095-1 Race Street 1.590" OD Beehive Spring, 2.000" Installed Height, 1 Spring

26095-1 Race Street 1.590" OD Beehive Spring, 2.000" Installed Height, 1 Spring

Skip to product information
1 of 1
COMP Cams Part No. CO26095-1
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO26095-1

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

With a .750" maximum lift, these Beehive Valve Springs are recommended for high lift Solid flat tappet and hydraulic Roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26120 1.0951.445 .6501.000 155 @ 1.880 377 @ 1.280 1.230 370 794 795 4696, 4697, 4698 4754

Product Information

With a .750" maximum lift, these Beehive Valve Springs are recommended for high lift Solid flat tappet and hydraulic Roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26120 1.0951.445 .6501.000 155 @ 1.880 377 @ 1.280 1.230 370 794 795 4696, 4697, 4698 4754

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584073000
Our Part Number
CO26095-1
Compatible Shims: 4757
Coil Bind Height: 1.13
Amazon ASIN: B001GBVQI2
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Compatible .570" Guide Diameter Spring Seat: 4711-1
Outer Top Spring Outside Diameter: 1.186
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Valve Spring Series: Race/Street
Spring Rate: 300
Seat Pressure: 150
Seat Height: 1.925
Outer Top Spring Inside Diameter: 0.721
Compatible Retainer: 785-1
Outer Bottom Spring Outside Diameter: 1.59
Outer Bottom Spring Inside Diameter: 1.125
Number of Springs: 1
Damper: No
Compatible Spring Cup (O.D. Locator): 4702-1
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
