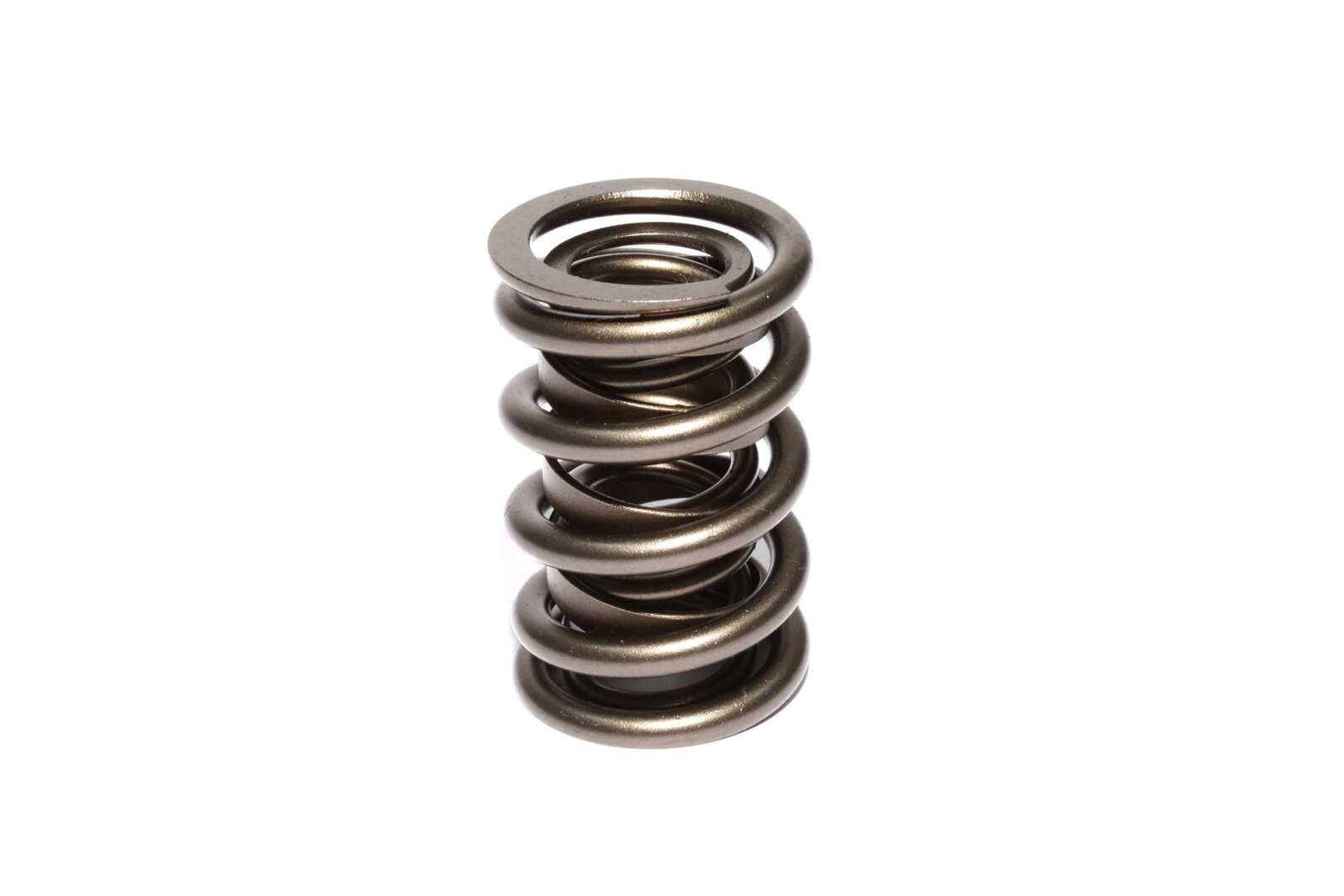

COMP Cams 26097-1 Race Endurance 1.551" OD Dual Spring, 2.000" Installed Height, 1 Spring

26097-1 Race Endurance 1.551" OD Dual Spring, 2.000" Installed Height, 1 Spring

Skip to product information
1 of 1
COMP Cams Part No. CO26097-1
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO26097-1

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Engineered with enhanced processing for middle level fatigue resistance and designed to work with Roller cams, they are widely used in Dirt or Asphalt Late Model and Sportsman racing, as well as marine racing. These Elite Race Valve Springs will also work in some high end flat tappet Applications.

Product Information

Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Engineered with enhanced processing for middle level fatigue resistance and designed to work with Roller cams, they are widely used in Dirt or Asphalt Late Model and Sportsman racing, as well as marine racing. These Elite Race Valve Springs will also work in some high end flat tappet Applications.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584021384
Our Part Number
CO26097-1
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Number of Springs: 2
Spring Rate: 502
Seat Pressure: 195
Seat Height: 2
Outer Spring Outside Diameter: 1.551
Outer Spring Inside Diameter: 1.117
Inner Spring Inside Diameter: 0.721
Coil Bind Height: 1.135
Damper: Yes
Compatible Spring Cup (O.D. Locator): 4700-1
Compatible Shims: 4757
Compatible Retainer: 732-1
Compatible .630" Guide Diameter Spring Seat: 4782-1
Compatible .570" Guide Diameter Spring Seat: 4781-1
Valve Spring Series: Race Endurance
Amazon ASIN: B001GBTQTI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
