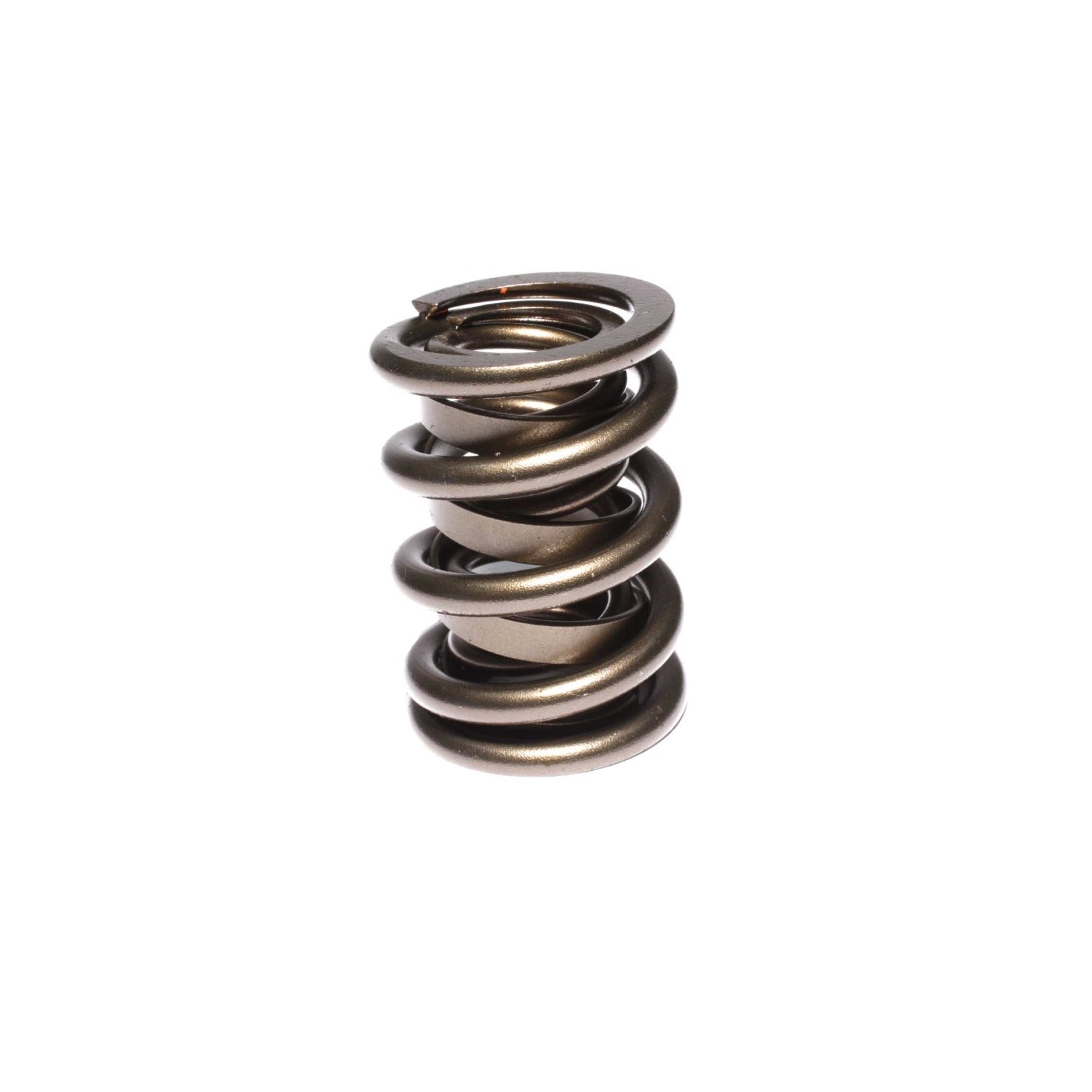

COMP Cams 26099-1 Race Extreme 1.640" OD Dual Spring, 2.050" Installed Height, 1 Spring

26099-1 Race Extreme 1.640" OD Dual Spring, 2.050" Installed Height, 1 Spring

Skip to product information
1 of 1
COMP Cams Part No. CO26099-1
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO26099-1

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Designed for use with Roller cams and created with a new processing Technique for longevity and reliability, they are widely used in Camping World Truck, Dirt Late Model and Sprint Car racing. The Metallurgists at COMP Cams scrutinize every piece of Metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the Metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring Steel is the COMP Cams standard when selecting materials.

Product Information

Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Designed for use with Roller cams and created with a new processing Technique for longevity and reliability, they are widely used in Camping World Truck, Dirt Late Model and Sprint Car racing. The Metallurgists at COMP Cams scrutinize every piece of Metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the Metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring Steel is the COMP Cams standard when selecting materials.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584073024
Our Part Number
CO26099-1
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Number of Springs: 2
Spring Rate: 563
Seat Pressure: 250
Seat Height: 2.05
Outer Spring Outside Diameter: 1.64
Outer Spring Inside Diameter: 1.167
Inner Spring Inside Diameter: 0.759
Coil Bind Height: 1.184
Damper: Yes
Compatible Spring Cup (O.D. Locator): 4702-1
Compatible Shims: 4757
Compatible Retainer: 733-1
Compatible .630" Guide Diameter Spring Seat: 4775-1
Compatible .570" Guide Diameter Spring Seats: 4774-1
Valve Spring Series: Race Extreme
Amazon ASIN: B001GBVQKU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
