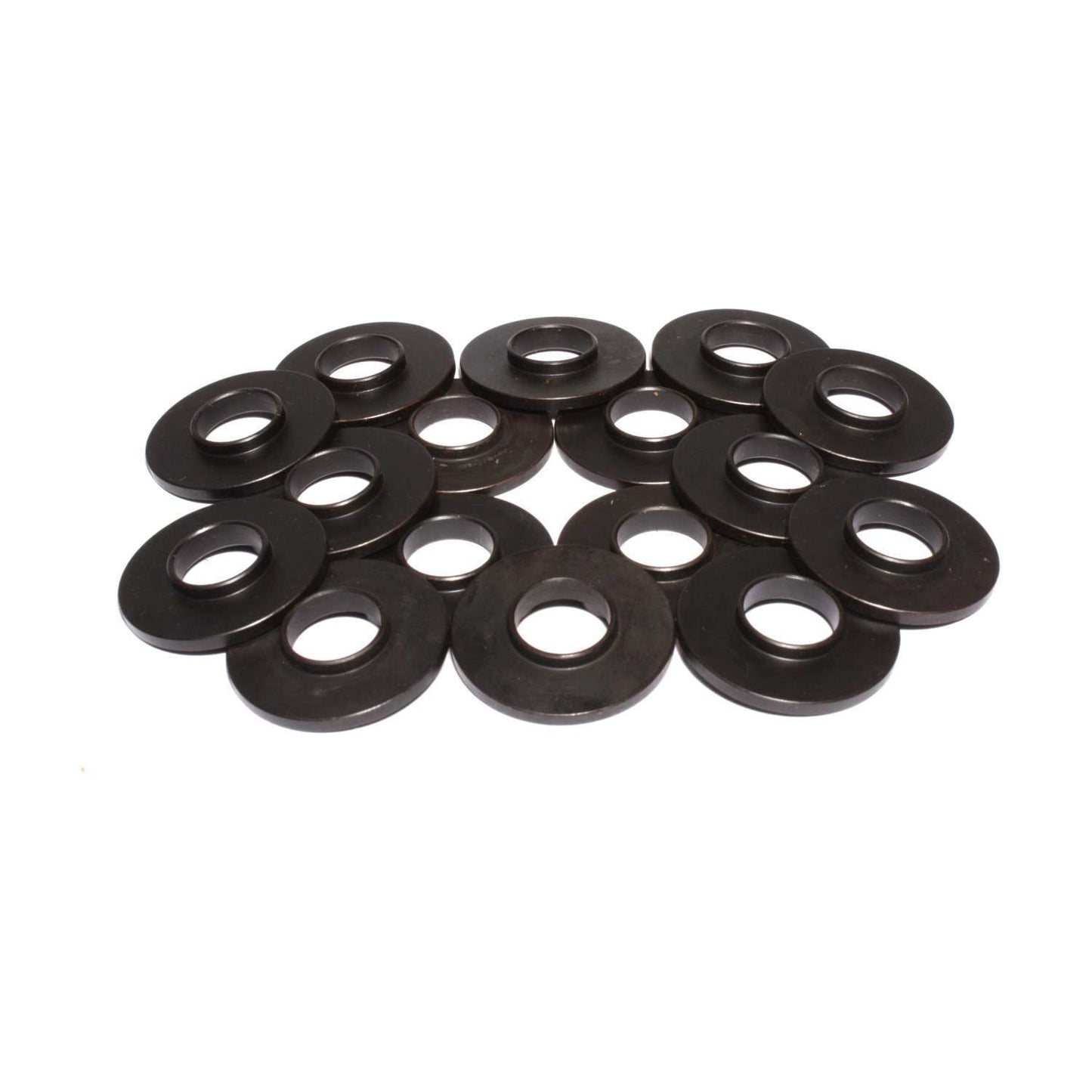

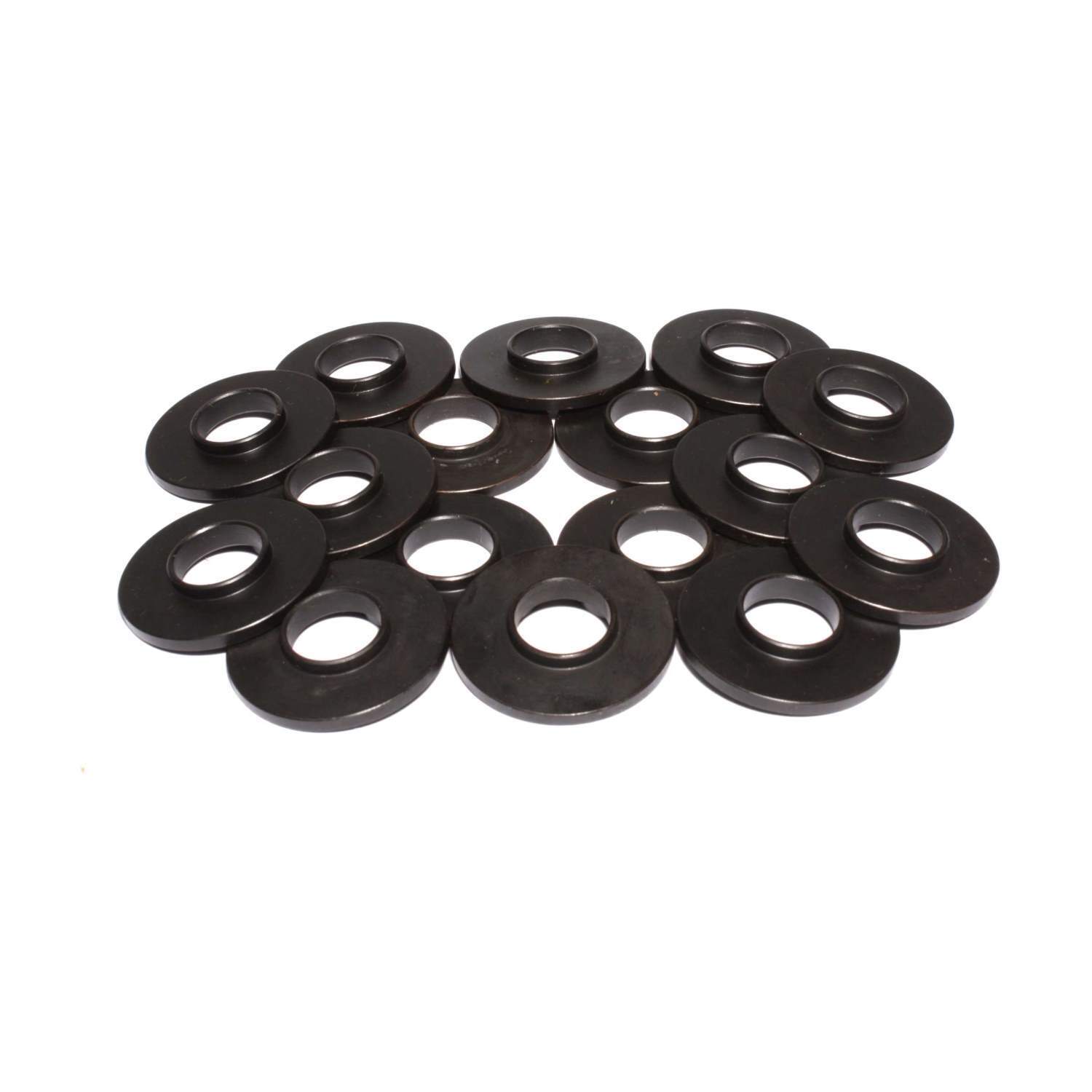

COMP Cams 4680-16 ID Spring Locator Set of 16 - 1.300" OD, .505" ID, .040" Thickness

4680-16 ID Spring Locator Set of 16 - 1.300" OD, .505" ID, .040" Thickness

1 1
COMP Cams
COMP Cams Part No. CO4680-16
$155.65 AUD
$155.65 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

CO4680-16

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Complete Set of (16) ID Spring Locators. The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem - a thin, hardened Steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers ID locators with the locating shoulder on the inside. Many sizes are available to locate from the inside or outside diameter. Properly Locates Springs with Stock Size GM LS .500" Valve Guides. Designed for COMP Beehive and Conical Valve Springs.
OD ID Thickness Spring ID
1.300" .505" .040" .910"

Product Information

Complete Set of (16) ID Spring Locators. The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem - a thin, hardened Steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers ID locators with the locating shoulder on the inside. Many sizes are available to locate from the inside or outside diameter. Properly Locates Springs with Stock Size GM LS .500" Valve Guides. Designed for COMP Beehive and Conical Valve Springs.
OD ID Thickness Spring ID
1.300" .505" .040" .910"

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584262992
Our Part Number
CO4680-16
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Locator Inner Diameter: 0.505
Locator Outer Diameter: 1.3
Locator Thickness: 0.04
Spring Inner Diameter: 0.91
Amazon ASIN: B00N6LOXRG
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
