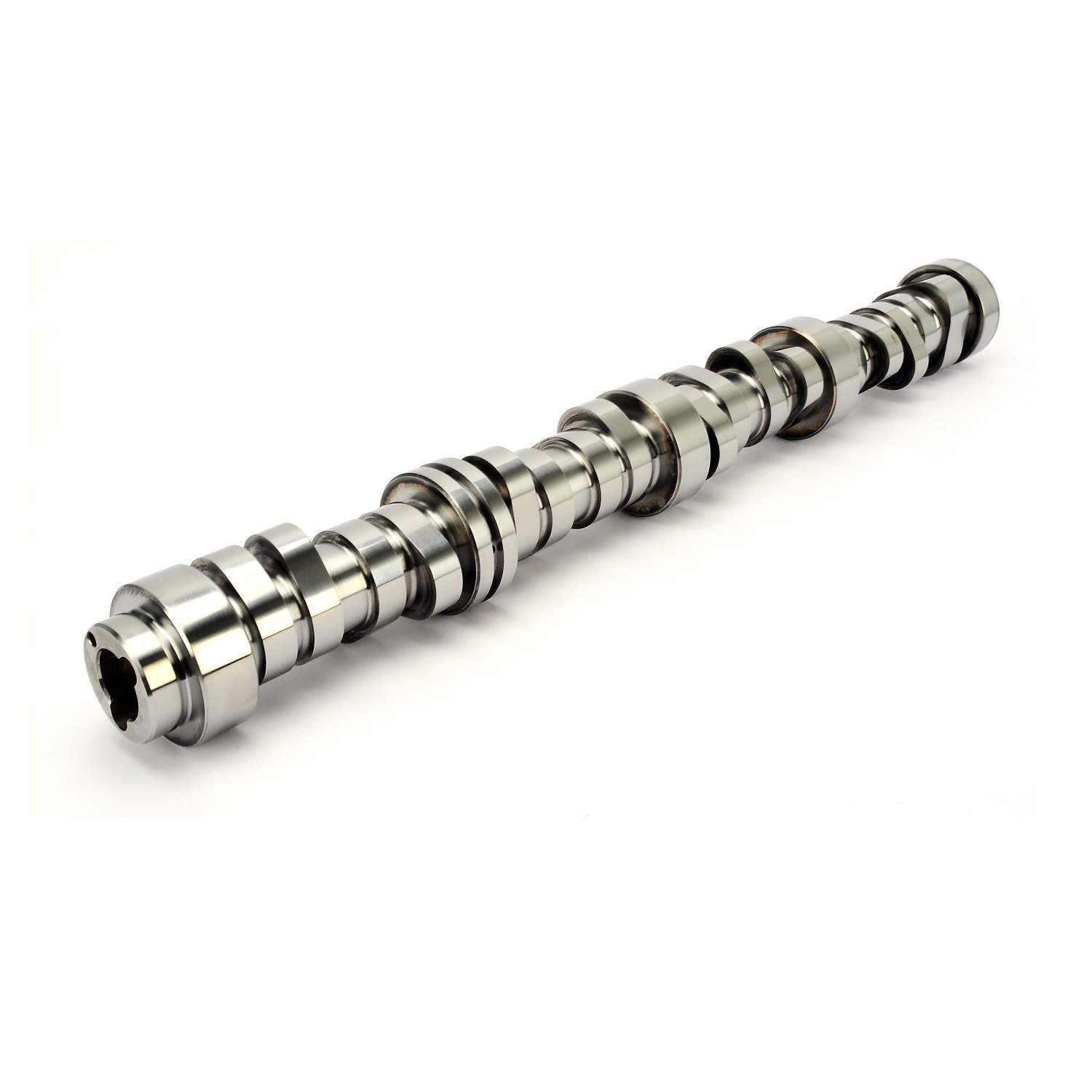

COMP Cams 624-524-13 XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LT1 GEN V

624-524-13 XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LT1 GEN V

Skip to product information
1 of 1
COMP Cams Part No. CO624-524-13
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO624-524-13

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Product Information

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584267034
Our Part Number
CO624-524-13
Camshaft Series: XFI AFM
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: 270PIIHR17
Basic Operating RPM Range: 1,800-6,900
Intake Duration at .050 Inch Lift: 218
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 270
Advertised Exhaust Duration: 282
Lobe Separation: 117
Intake Valve Lift: 0.572
Exhaust Valve Lift: 0.529
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Material: Billet Steel
Engine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
Lifter Type: Hydraulic Roller
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Amazon ASIN: B00N6LRB8E
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: 270PIIHR17
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
