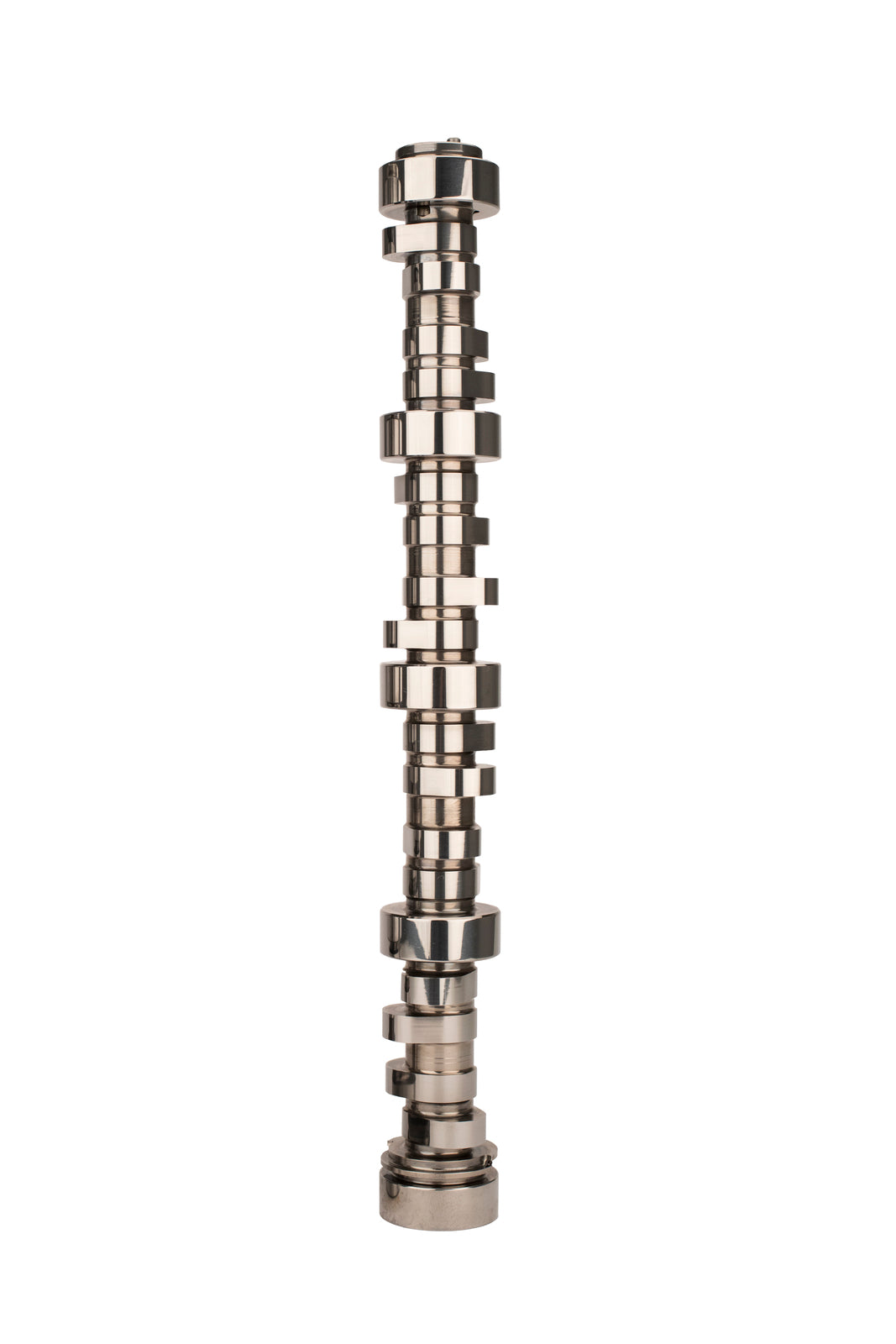

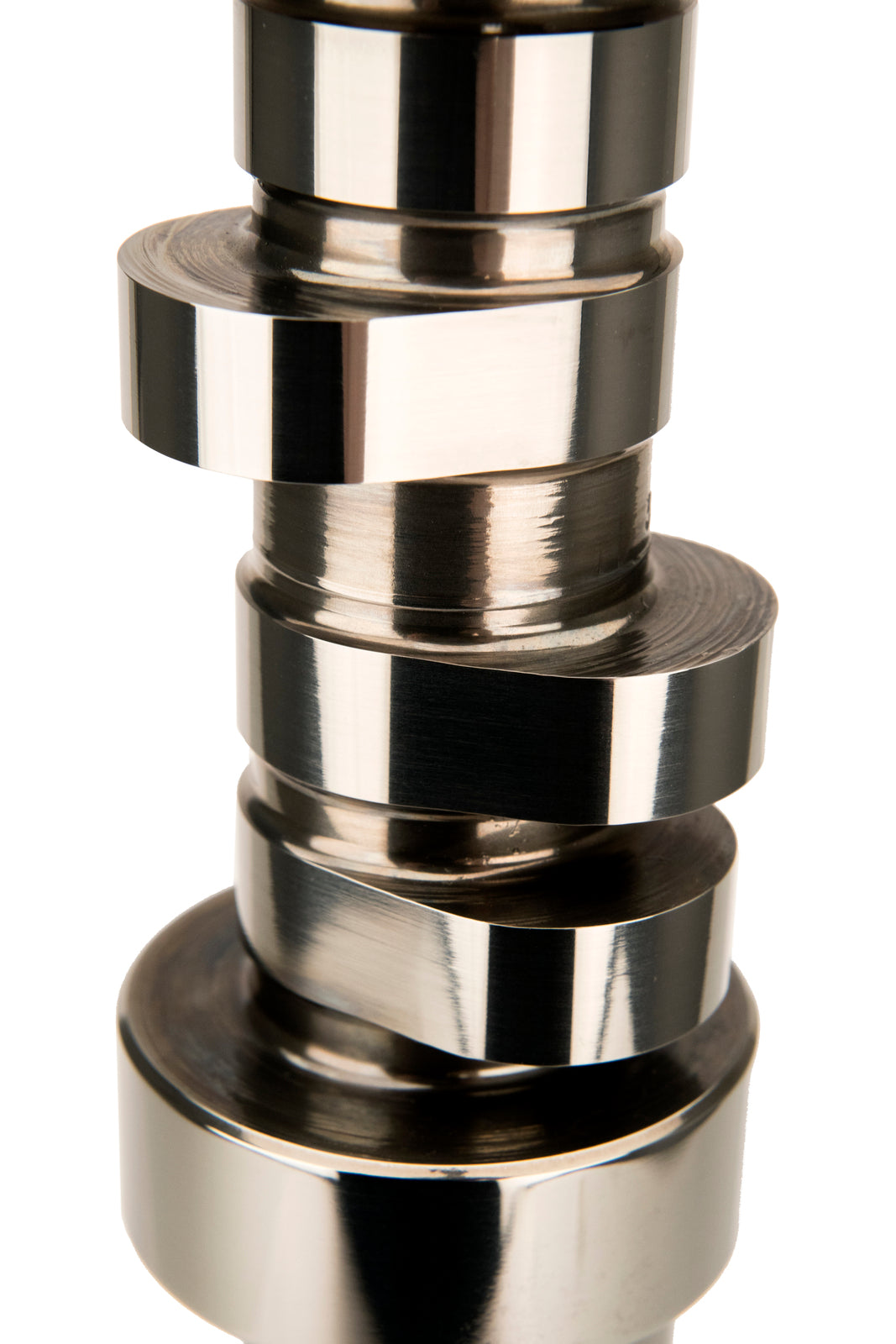

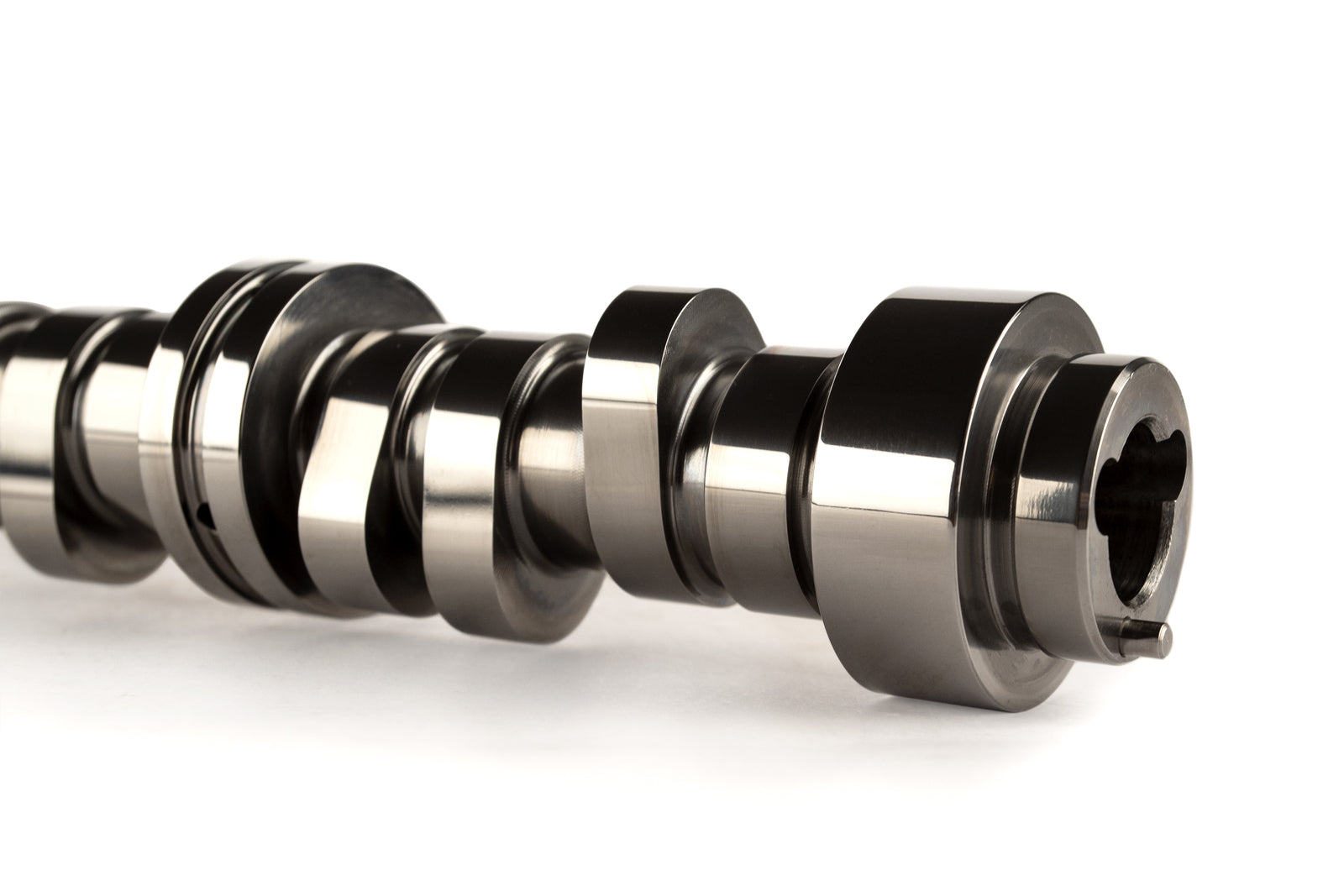

COMP Cams 689-421-13 XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV

689-421-13 XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV

Name: COMP Cams 689-421-13 XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV
Brand: COMP Cams
SKU: CO689-421-13
Price: 1162.90 AUD
Availability: OutOfStock

1 4

COMP Cams

COMP Cams Part No. CO689-421-13

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO689-421-13

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam

Product Information

XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584237907
Our Part Number: CO689-421-13

Intake Valve Lift Non-Deactivation Cylinders: 0.5
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 214
Intake Duration at .050 Inch Lift Deactivation Cylinders: 216
Advertised Exhaust Duration Deactivation Cylinders: 290
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Advertised Exhaust Duration Non-Deactivation Cylinders: 278
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 226
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 228
Advertised Intake Duration Non-Deactivation Cylinders: 266
Advertised Intake Duration Deactivation Cylinders: 278
Exhaust Valve Lift Deactivation Cylinders: 0.5
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
C.A.R.B. E.O.: N/A
Amazon ASIN: B0066SUNFW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: 266PIIHR14
Camshaft Series: XFI AFM
Grind Number: 266PIIHR14
Lobe Separation: 114
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Usage: Street/Performance

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
