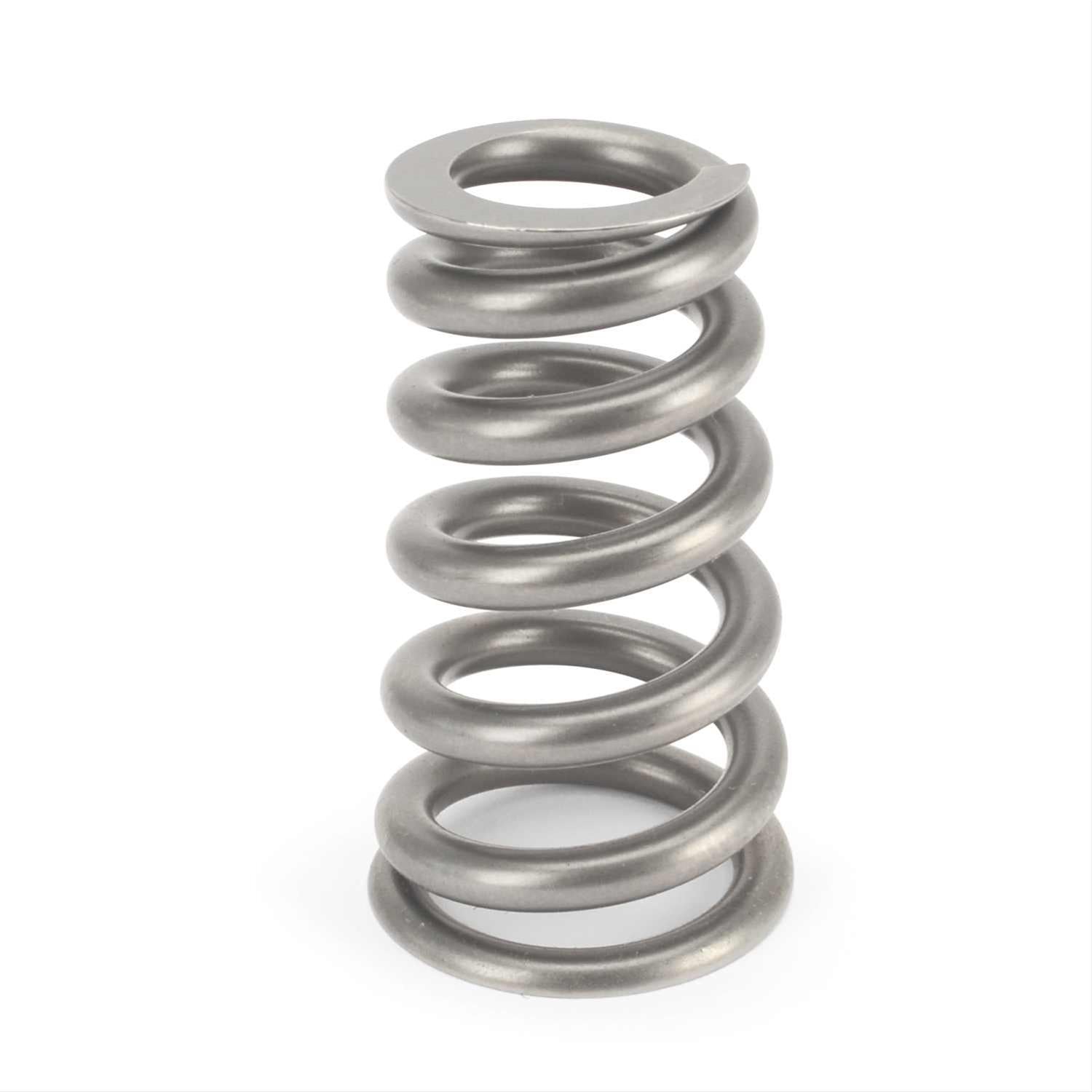

COMP Cams 7230-16 Race Sportsman 1.332" OD Conical Springs, 1.900" Installed Height, 16 Springs

7230-16 Race Sportsman 1.332" OD Conical Springs, 1.900" Installed Height, 16 Springs

Name: COMP Cams 7230-16 Race Sportsman 1.332" OD Conical Springs, 1.900" Installed Height, 16 Springs
Brand: COMP Cams
SKU: CO7230-16
Price: 867.45 AUD
Availability: OutOfStock

1 1

COMP Cams

COMP Cams Part No. CO7230-16

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO7230-16

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

Revolutionary Advancement In High Performance Spring Technology.

7230-16	Outer Diameter and	Inner Diameter and	Seat Load	Open Load	Coil Bind	Rate and
Top	1.060"	.660"	145 @ 1.900"	495 @ 1.225"	1.185"	520
Bottom	1.332"	.932"	145 @ 1.900"	495 @ 1.225"	1.185"	520

Product Information

Revolutionary Advancement In High Performance Spring Technology.

7230-16	Outer Diameter and	Inner Diameter and	Seat Load	Open Load	Coil Bind	Rate and
Top	1.060"	.660"	145 @ 1.900"	495 @ 1.225"	1.185"	520
Bottom	1.332"	.932"	145 @ 1.900"	495 @ 1.225"	1.185"	520

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584283188
Our Part Number: CO7230-16

Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Bind Height: 1.175
Compatible .570" Guide Diameter Spring Seats: 4677-16
Compatible Retainer: 788-16
Compatible Shims: 4754
Damper: No
Number of Springs: 1
Outer Bottom Spring Inside Diameter: 0.932
Outer Bottom Spring Outside Diameter: 1.332
Outer Top Spring Inside Diameter: 0.66
Outer Top Spring Outside Diameter: 1.06
Seat Height: 1.9
Seat Pressure: 145
Spring Rate: 519
Valve Spring Series: Race Sportsman

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
