COMP Cams 7245-1 Race Endurance 1.657" OD Conical Spring, 2.000" Installed Height, 1 Spring

7245-1 Race Endurance 1.657" OD Conical Spring, 2.000" Installed Height, 1 Spring

1 1
COMP Cams
COMP Cams Part No. CO7245-1
Sale Sold out
Taxes included. Shipping calculated at checkout.

CO7245-1

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

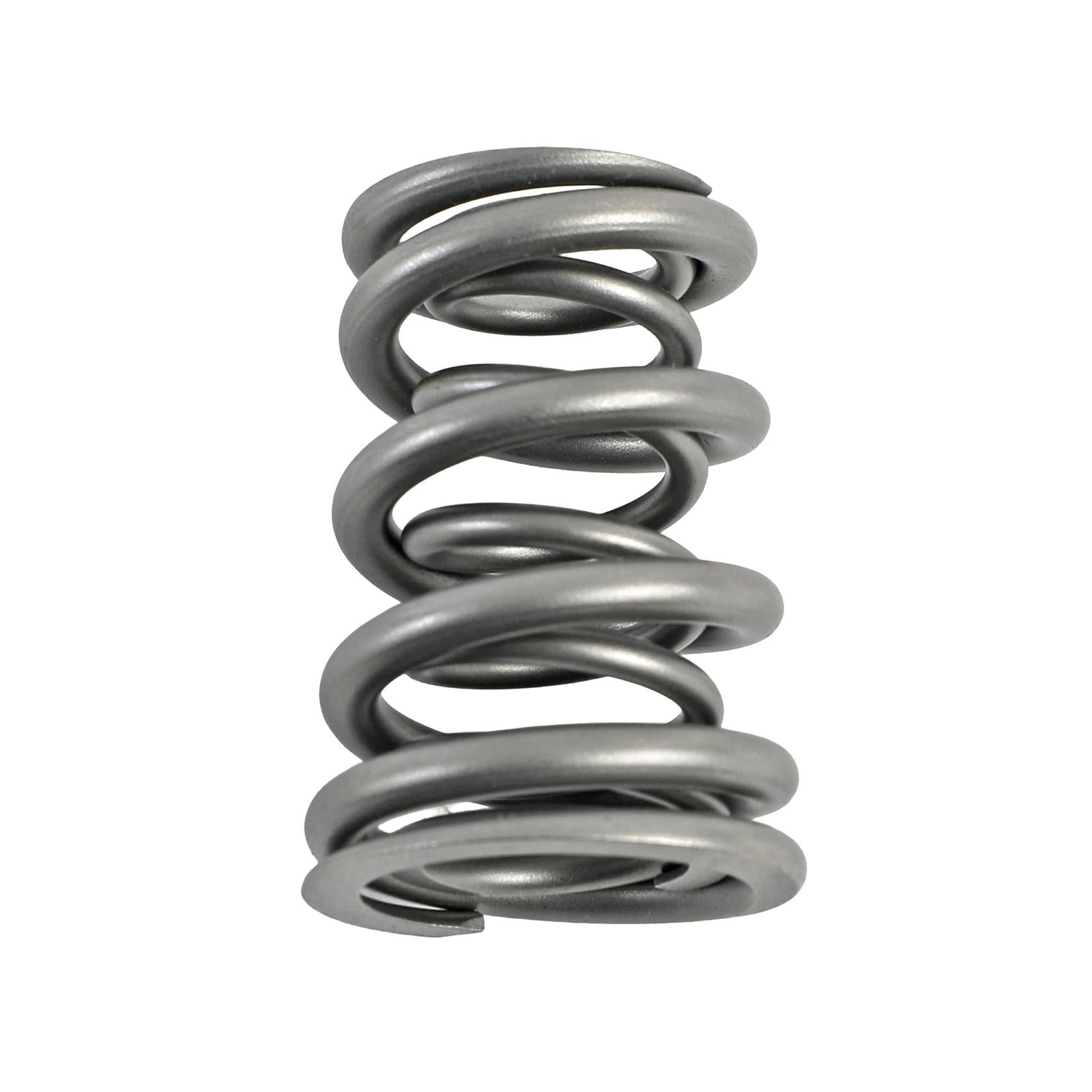

Dual Conical Valve Springs. As opposed to dual cylindrical spring systems, COMP Cams Dual Conical Valve Springs require no interference fit to dampen spring surge. The self damping characteristic of conical geometry, along with the lower spring kinetic energy of the upper coils, provide a game-changing breakthrough in valve spring design. COMP Cams Dual Conical Valve Springs are constrained at the top and bottom with stepped retainers and spring seats to create separation. The result is that the springs naturally progressive nature can provide outstanding damping without rubbing friction or the associated heat and surface damage. These springs are designed for circle track, road Race and drag racing Applications, as well as all-out, high-RPM street/strip hydraulic Roller valve train systems with optimized lifters.
  • Dampen coil oscillations, increase RPM limit and reduce resonance
  • Improves valve train stability
  • Fewer parasitic horsepower losses and more power
  • Superfinish surface processing
  • Non-interference fit
The reduced oscillation in the Dual Conical Springs translates to less applied force and stress to the springs. This increases the lifespan of the spring and the valve train. It also allows the use of more aggressive Camshaft profiles.
Seat Load Open Load Coil Bind Rate OD ID Retainers Seats Shims
150lbs @ 2.00" 630lbs @ 1.20" 1.115" 600lb/in 1.442" .646" 716-1, 1738-1 4668-1, 4669-1 4756
1.657" .861"

Product Information

Dual Conical Valve Springs. As opposed to dual cylindrical spring systems, COMP Cams Dual Conical Valve Springs require no interference fit to dampen spring surge. The self damping characteristic of conical geometry, along with the lower spring kinetic energy of the upper coils, provide a game-changing breakthrough in valve spring design. COMP Cams Dual Conical Valve Springs are constrained at the top and bottom with stepped retainers and spring seats to create separation. The result is that the springs naturally progressive nature can provide outstanding damping without rubbing friction or the associated heat and surface damage. These springs are designed for circle track, road Race and drag racing Applications, as well as all-out, high-RPM street/strip hydraulic Roller valve train systems with optimized lifters.
  • Dampen coil oscillations, increase RPM limit and reduce resonance
  • Improves valve train stability
  • Fewer parasitic horsepower losses and more power
  • Superfinish surface processing
  • Non-interference fit
The reduced oscillation in the Dual Conical Springs translates to less applied force and stress to the springs. This increases the lifespan of the spring and the valve train. It also allows the use of more aggressive Camshaft profiles.
Seat Load Open Load Coil Bind Rate OD ID Retainers Seats Shims
150lbs @ 2.00" 630lbs @ 1.20" 1.115" 600lb/in 1.442" .646" 716-1, 1738-1 4668-1, 4669-1 4756
1.657" .861"

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
036584283232
Our Part Number
CO7245-1
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Bind Height: 1.115
Compatible .570" Guide Diameter Spring Seat: 4669-1
Compatible Retainer: 716-1
Compatible Shims: 4756
Damper: No
Inner Spring Inside Diameter: 0.646/0.861
Number of Springs: 2
Outer Bottom Spring Inside Diameter: 1.225
Outer Top Spring Inside Diameter: 1.01
Outer Top Spring Outside Diameter: 1.442
Seat Height: 2.05
Seat Pressure: 150
Spring Rate: 600
Valve Spring Series: Race Endurance
Amazon ASIN: B00N6LT060
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
