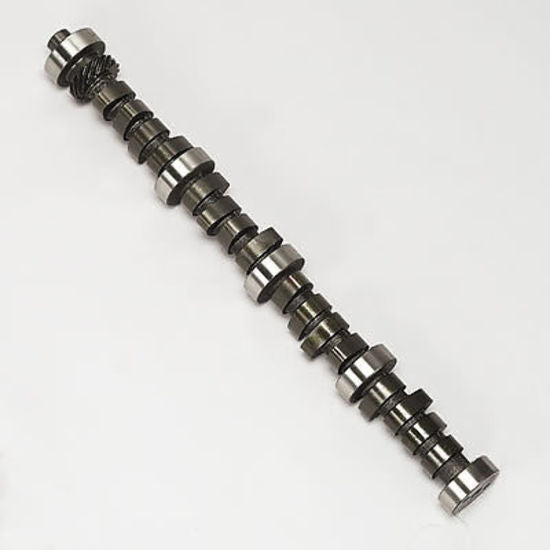

COMP Cams 31-242-3 Xtreme Energy 224/230 Hydraulic Flat Cam for Ford 221-302

31-242-3 Xtreme Energy 224/230 Hydraulic Flat Cam for Ford 221-302

Name: COMP Cams 31-242-3 Xtreme Energy 224/230 Hydraulic Flat Cam for Ford 221-302
Brand: COMP Cams
SKU: CO31-242-3
Price: 582.20 AUD
Availability: InStock

1 2

COMP Cams

COMP Cams Part No. CO31-242-3

$582.20 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO31-242-3

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

Xtreme Energy 224/230 Hydraulic Flat Tappet Cam for Ford 221-302. Great for street machines. 2200+ Stall.

Product Information

Xtreme Energy 224/230 Hydraulic Flat Tappet Cam for Ford 221-302. Great for street machines. 2200+ Stall.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584030911
Our Part Number: CO31-242-3

Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
SK-Kit Upgrade: SK31-242-3
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade: CL31-242-3
Lifter Type: Hydraulic Flat Tappet
K-Kit Upgrade: K31-242-3
Engine Family: Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995)
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: XE268H
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE268H
Basic Operating RPM Range: 1,600-5,800
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 268
Advertised Exhaust Duration: 280
Lobe Separation: 110
Intake Valve Lift: 0.509
Exhaust Valve Lift: 0.512
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Application: Ford Small Block Windsor 289/302 CID 1963 - '95
Cam Style: Hydraulic flat tappet
Intake Duration at 050 inch Lif 224
Exhaust Duration at 050 inch Lif 230
Duration at 050 inch Lif 224 int./230 exh.
Advertised Duration: 268 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.509 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.512 in.
Valve Lift with Factory Rocker Arm Ratio: 0.509 int./0.512 exh.
Lobe Separation (degrees): 110
Computer-Controlled Compatible: No
Grind Number: FS XE268H-10
Quantity: Sold individually.
Note: Great for Street Machine, 2200+ stall.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
