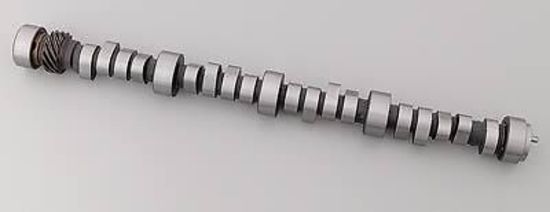

COMP Cams 20-740-9 Xtreme Energy 248/254 Solid Roller Cam for Chrysler 273-360

20-740-9 Xtreme Energy 248/254 Solid Roller Cam for Chrysler 273-360

Name: COMP Cams 20-740-9 Xtreme Energy 248/254 Solid Roller Cam for Chrysler 273-360
Brand: COMP Cams
SKU: CO20-740-9
Price: 1070.50 AUD
Availability: OutOfStock

1 2

COMP Cams

COMP Cams Part No. CO20-740-9

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO20-740-9

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Product Information

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584081807
Our Part Number: CO20-740-9

Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Solid Roller
Grind Number: XR286R
Basic Operating RPM Range: 2,800-6800
Intake Duration at .050 Inch Lift: 248
Exhaust Duration at .050 inch Lift: 254
Advertised Intake Duration: 286
Advertised Exhaust Duration: 292
Lobe Separation: 110
Intake Valve Lift: 0.576
Exhaust Valve Lift: 0.582
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Cam and Lifter Kit Upgrade: CL20-740-9
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
K-Kit Upgrade: K20-740-9
Lifter Type: Solid Roller
Amazon ASIN: B000P5B8RY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: XR286R

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
