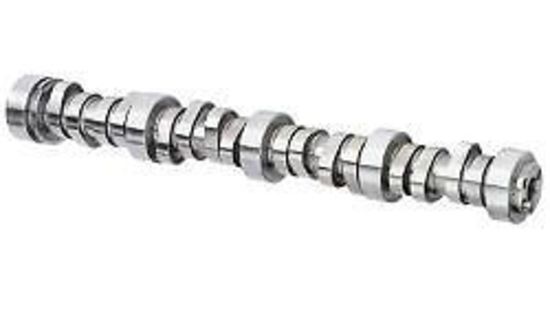

COMP CAMS XFI RPM CAMSHAFT 220/224@50 .530/534" CHEV LS V8 3 BOLT CO54-416-11

CAMS XFI RPM CAMSHAFT 220/224@50 .530/534" CHEV LS V8 3 BOLT CO54-416-11

Skip to product information
1 of 2
COMP Cams Part No. CO54-416-11
Regular price $1,054.70 AUD
Regular price Sale price $1,054.70 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:CO54-416-11

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

COMP CAMS XFI RPM CAMSHAFT 220/224@50 .530/534" CHEV LS V8 3 BOLT CO54-416-11
XFI RPM camshafts from COMP Cams pull your performance set up all together. Offering the newest and quickest lobe profiles, COMP Cams selection of XFI RPM cams get you the best combination of torque, horsepower, and even gas mileage (if you want) to tailor your application. Make the right choice in valvetrain technology; you have a goal and so does COMP Cams--reliable high performance!
Specs:
Application: Chev/Holden LS series V8 Gen III & IV (check notes)
Cam Style:Hydraulic roller tappet
Basic Operating RPM Range:1,600-6,600
Intake Duration at 050 inch Lif220
Exhaust Duration at 050 inch Lif224
Duration at 050 inch Lif220 int./224 exh.
Advertised Intake Duration:273
Advertised Exhaust Duration:277
Advertised Duration:273 int./277 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:0.530 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:0.534 in.
Valve Lift with Factory Rocker Arm Ratio:0.530 int./0.534 exh.
Lobe Separation (degrees):112
Camshaft Gear Attachmen3-bolt
Computer-Controlled Compatible:Yes
Grind Number:XR273HR
Valve Springs Required:Yes
Quantity:Sold individually.
Notes:Requires custom computer tuning.


Product Information

COMP CAMS XFI RPM CAMSHAFT 220/224@50 .530/534" CHEV LS V8 3 BOLT CO54-416-11
XFI RPM camshafts from COMP Cams pull your performance set up all together. Offering the newest and quickest lobe profiles, COMP Cams selection of XFI RPM cams get you the best combination of torque, horsepower, and even gas mileage (if you want) to tailor your application. Make the right choice in valvetrain technology; you have a goal and so does COMP Cams--reliable high performance!
Specs:
Application: Chev/Holden LS series V8 Gen III & IV (check notes)
Cam Style:Hydraulic roller tappet
Basic Operating RPM Range:1,600-6,600
Intake Duration at 050 inch Lif220
Exhaust Duration at 050 inch Lif224
Duration at 050 inch Lif220 int./224 exh.
Advertised Intake Duration:273
Advertised Exhaust Duration:277
Advertised Duration:273 int./277 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:0.530 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:0.534 in.
Valve Lift with Factory Rocker Arm Ratio:0.530 int./0.534 exh.
Lobe Separation (degrees):112
Camshaft Gear Attachmen3-bolt
Computer-Controlled Compatible:Yes
Grind Number:XR273HR
Valve Springs Required:Yes
Quantity:Sold individually.
Notes:Requires custom computer tuning.


Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
COMP Cams
MPN
Not provided
UPC
36584068211
Our Part Number
CO54-416-11

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
