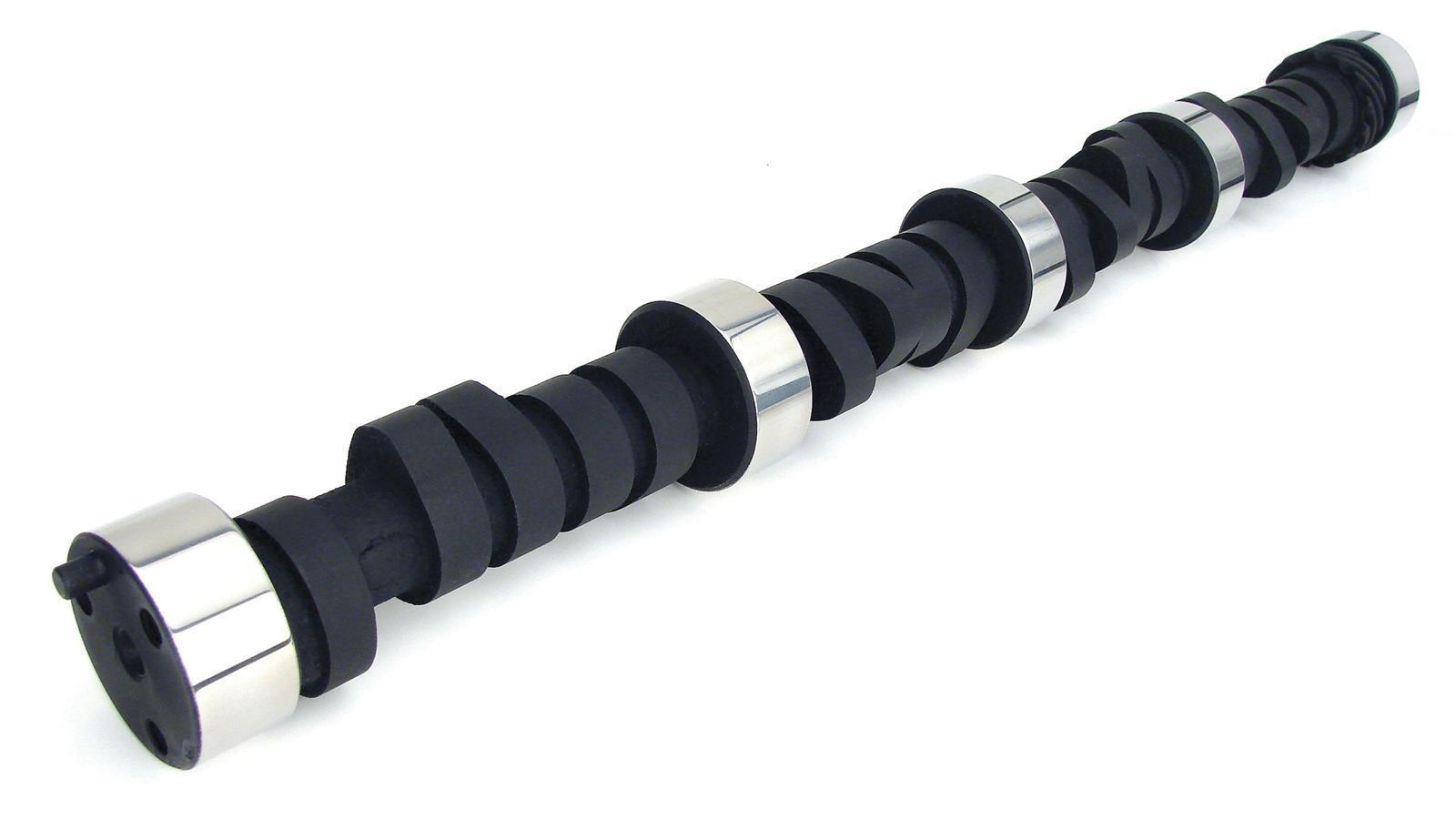

COMP CAMS XTREME ENERGY HYD CAMSHAFT 224/230 @.50 CHEV BB 396-454CID CO11-242-3

Item Description

COMP CAMS XTREME ENERGY HYD CAMSHAFT 224/230 @.50 CHEV BB 396-454CID CO11-242-3COMP Cams Xtreme Energy camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum. Specs:
Application: Chev Big Block Mark IV 396-454C.I.D. 1965-'96
Cam Style: Hydraulic flat tappet
Basic Operating RPM Range: 1,600-5,800
Intake Duration at 050 inch Lif 224
Exhaust Duration at 050 inch Lif 230
Duration at 050 inch Lif 224 int./230 exh.
Advertised Intake Duration: 268
Advertised Exhaust Duration: 280
Advertised Duration: 268 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.515 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.520 in.
Valve Lift with Factory Rocker Arm Ratio: 0.515 int./0.520 exh.
Lobe Separation (degrees): 110
Computer-Controlled Compatible: No
Grind Number: CB XE268H-10
Valve Springs Required: Yes
Quantity: Sold individually.
Items are shipped within one to two business days after full payment has been recieved.



Manufacturer Information

  • Manufacturer: COMP Cams
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
