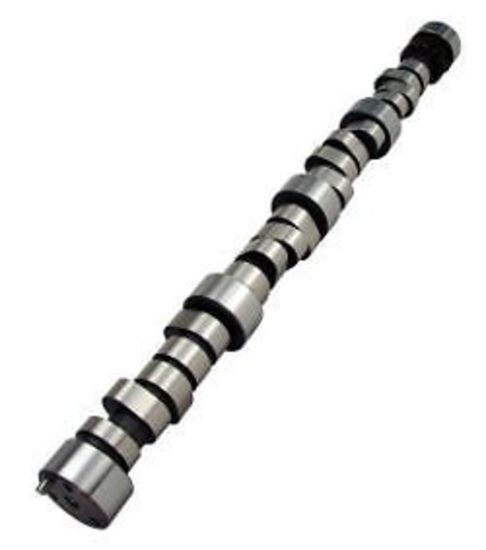

COMP CAMS XTREME ENERGY SOLID CAMSHAFT 248/248@50 .570/576" CHEV SB CO12-771-8

Item Description

COMP CAMS XTREME ENERGY SOLID CAMSHAFT 248/248@50 .570/576" CHEV SB CO12-771-8
COMP Cams Xtreme Energy camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.
Specs:
Application: Chev Small Block 262-400 C.I.D, See notes
Cam Style:Mechanical roller tappet
Basic Operating RPM Range:2,500-6,500
Intake Duration at 050 inch Lif242
Exhaust Duration at 050 inch Lif248
Duration at 050 inch Lif242 int./248 exh.
Advertised Intake Duration:280
Advertised Exhaust Duration:286
Advertised Duration:280 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:0.570 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:0.576 in.
Valve Lift with Factory Rocker Arm Ratio:0.570 int./0.576 exh.
Lobe Separation (degrees):110
Intake Valve Lash:0.016 in.
Exhaust Valve Lash:0.018 in.
Computer-Controlled Compatible:No
Grind Number:CS XR280 R-10
Valve Springs Required:Yes
Quantity:Sold individually.
Notes:Retro-fi Designed for early non-roller blocks. Requires thrust button and wear plate.


Manufacturer Information

  • Manufacturer: COMP Cams
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
