COMP CAMS XTREME ENERGY SOLID CAMSHAFT 248/254@.50 CHEV SB 262-400CID CO12-772-8

1 2

COMP Cams

CO12-772-8
$1,061.60 AUD
$1,061.60 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

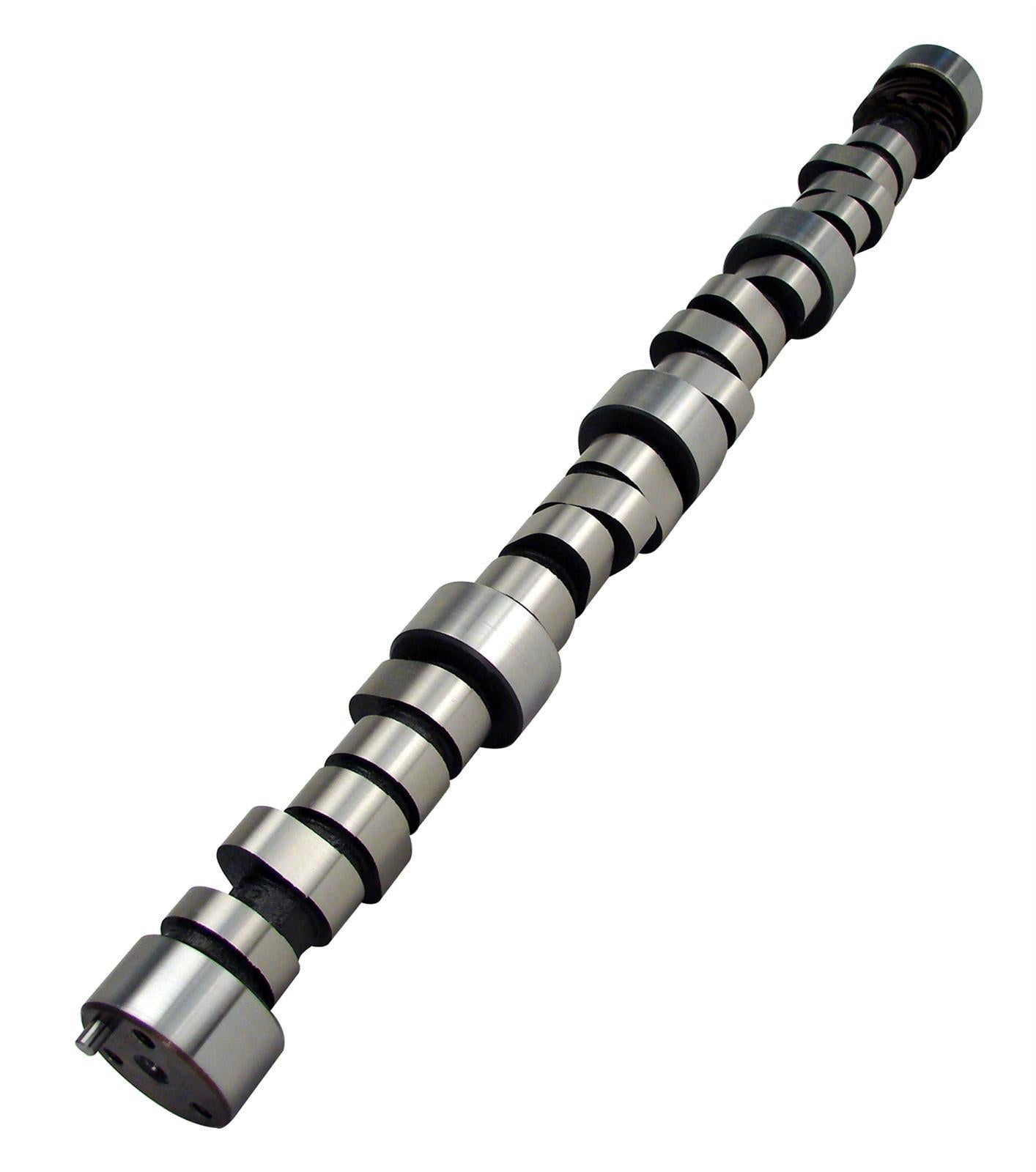

COMP CAMS XTREME ENERGY SOLID CAMSHAFT 248/254@.50 CHEV SB 262-400CID CO12-772-8

Item Description

COMP CAMS XTREME ENERGY SOLID CAMSHAFT 248/254@.50 CHEV SB 262-400CID CO12-772-8COMP Cams Xtreme Energy camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum. Specs:
Application: Chev Small Block Gen 1 262-400C.I.D. 1955-'98
Cam Style: Mechanical roller tappet
Basic Operating RPM Range: 3,000-7,000
Intake Duration at 050 inch Lif248
Exhaust Duration at 050 inch Lif 254
Duration at 050 inch Lif 248 int./254 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 292
Advertised Duration: 286 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.576 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.582 in.
Valve Lift with Factory Rocker Arm Ratio: 0.576 int./0.582 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.016 in.
Exhaust Valve Lash: 0.018 in.
Computer-Controlled Compatible: No
Grind Number: CS XR286 R-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Retro-fi Designed for early non-roller blocks. Requires thrust button and wear plate.



Manufacturer Information

  • Manufacturer: COMP Cams
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo

After more details? Contact Us
