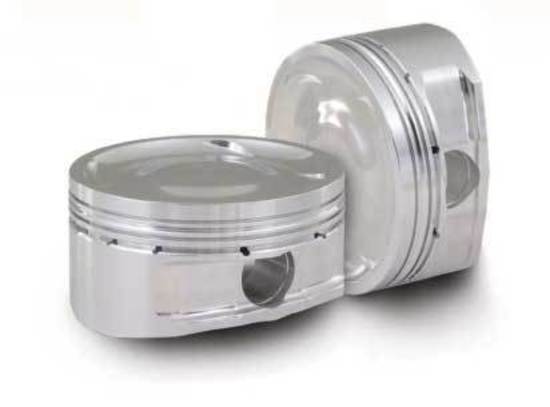

PISTONS CHEV/HOLDEN LS2 +005 FORGED DISH TOP PISTON & RING SET PBLS1005005CP
Product Information
|
CP BULLET PISTONS CHEV/HOLDEN LS2 +005 FORGED DISH TOP PISTON & RING SET PLS1005005CPLow cost means low quality, right? Not so! Bullet series pistons from CP Pistons will have you rethinking that thought. Offered at an affordable price, these high-quality pistons incorporate everything that has made CP an industry leader--extensive research, computer-designed forgings, tight tolerances, and rigorous quality control. Having Bullet series pistons means that you no longer have to compromise high performance, even on a tight budget. CP Pistons Bullet series pistons are manufactured from 2618 alloy for strength and durability. Additional features include: * Piston balance 1 gram * Dual forced pin oilers * Contact reduction grooves * Accumulator groove * Contemporary high performance ring sets * Forged side relief * chromoly wrist pins with wire locks Specs:Application: Chev / Holden LS2 6.0L (+005 Bore)Bore (in): 4.005 in. Bore (mm): 101.727mm
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Distance (in): 1.110 in.
Piston Head Volume (cc): -12.70cc
Connecting Rod: 6.125 in.
Pin Diameter (in): 0.927 in.
Stroke: 4.000"
Wrist Pin Style: Press-fit or floating
Piston Ring Thickness: 1.50mm x 1.50mm x 3.00mm
Top Ring Thickness: 1.5mm
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Oil Ring Tension: Standard
Quantity: Sold as a set.
|
