Ford Small Block Windsor Billet Elec Water Pump
Product Information

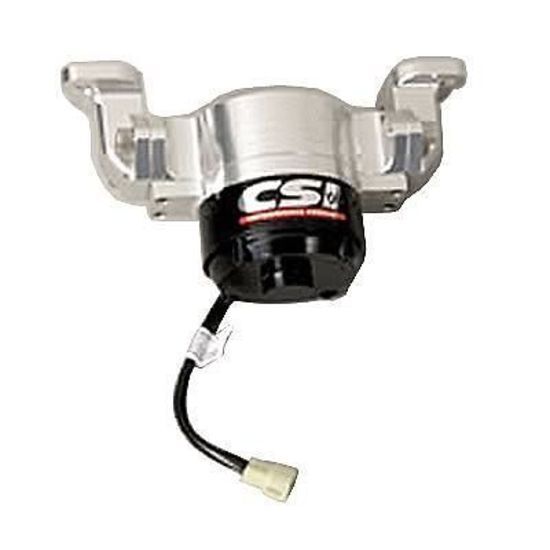

FORD SMALL BLOCK WINDSOR BILLET ELEC WATER PUMP CSR905C
Maximum cooling for maximum performance.
Generating an incredible 37 gpm of coolant circulation, CSR Performance billet aluminum electric water pumps give you the flow you need, without costing you horsepower. CNC-machined from T-6 aluminum, these lightweight pumps have a direct-drive 12 V motor, spinning a redesigned impeller on a stainless steel shaft. CSR pumps draw just 5.8 amps. Because they don't run off of your crank, they won't eat up race-winning horsepower. Other features include corrosion-resistant anodized finishes in several colors, superior RFI suppression, and a removable center section for cam adjustment or replacement.Specs:| ApplicationPump Material | Ford 260, 289, 302, 351 Windsor V8Aluminum |
| Pump Finish | Clear anodized |
| Flow Rate @ 12 Volts (gpm) | 35-37 GPM |
| Hose Adapter Required | Yes |
| Hose Adapter Included | No |
| Hose Adapter Thread Size | 3/4 in. NPT |
| Overall Depth (in) | 6.250 in. |
| Amp Draw | 5.80 amps |
| WeightNote: | 7 lbs.Includes aluminium backing Plate.Not for use on 302 or 351 engines with serpentine drive systems. |
|
Click Here For Fitting To Suit! |
