CVF Racing

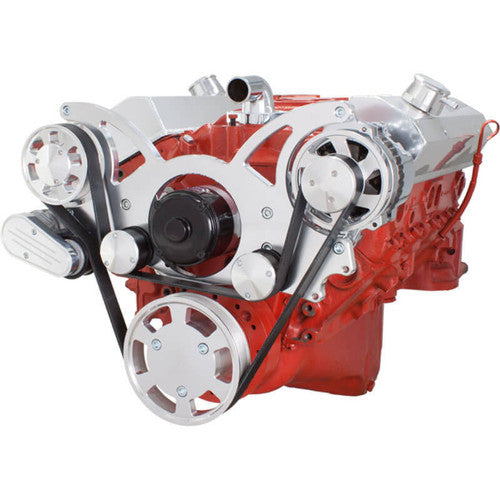

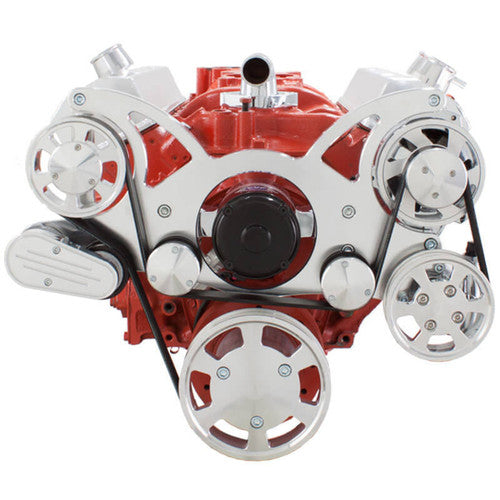

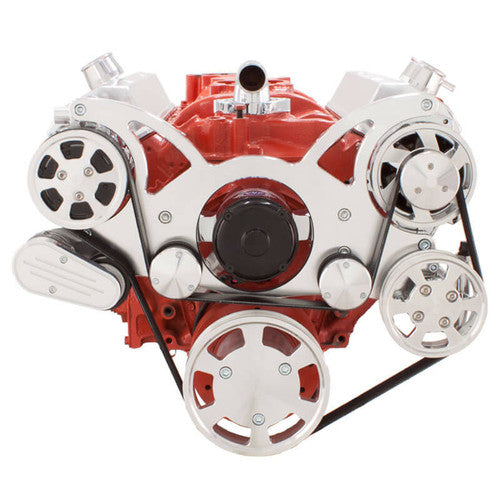

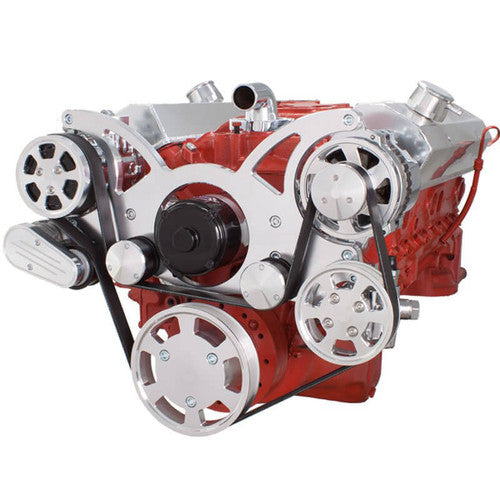

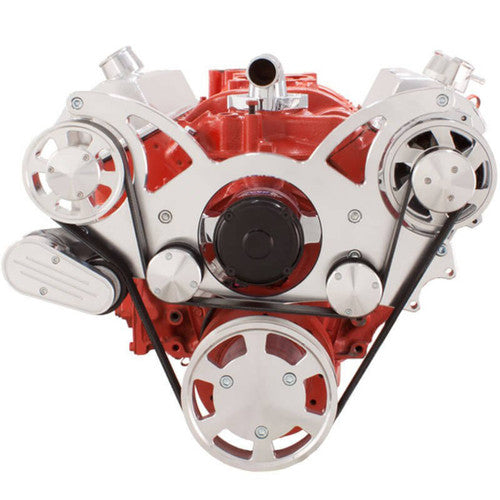

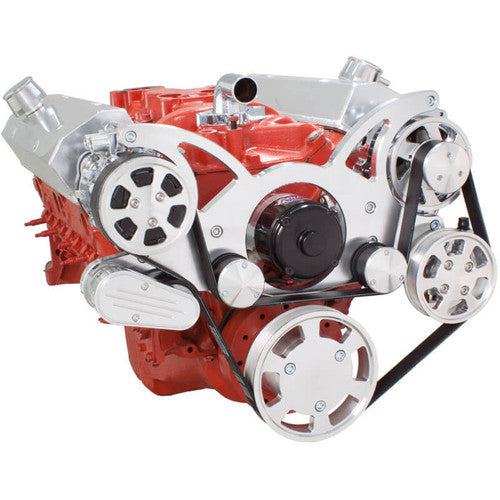

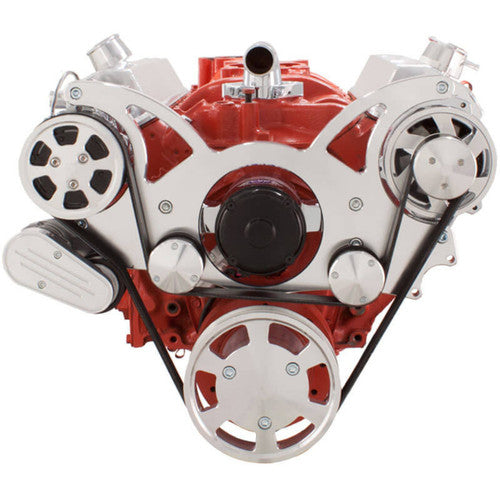

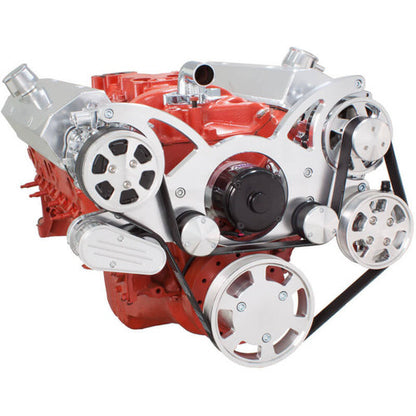

CVF 350-WRAPTOR-AC-EWP Serpentine System for Chev SB 283-350-400 - AC Power Steering & Alternator w/ Electric Water Pump - All Inclusive

CVF 350-WRAPTOR-AC-EWP Serpentine System for Chev SB 283-350-400 - AC Power Steering & Alternator w/ Electric Water Pump - All Inclusive

CVF-350-WRAPTOR-AC-EWP
$3,845.80 AUD
$3,845.80 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

This product has a 10 day handling time

Small Block Chevy 283-350-400 Engine Serpentine Conversion Kit
Air Conditioning, Power Steering and Alternator

All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy Small Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:
  • 140 Amp Chrome 1-Wire CS130 Alternator
  • 35 GMP Electric Water Pump
  • Chrome Plated AC Compressor
  • AC Compressor Clutch Cover - Polished Billet Aluminum
  • Chrome Plated Aluminum GM Type II Power Steering Pump
  • Remote Mount Reservoir with Bracket - Polished Billet Aluminum
  • Gates Premium Green Strip 8 Rib Belt
  • Crank Pulley - Polished Billet Aluminum
  • Crank Pulley Spacer - Polished Billet Aluminum
  • Alternator Pulley & Cover - Polished Billet Aluminum
  • Power Steering Pulley - Polished Billet Aluminum
  • One Piece Billet Aluminum Bracket - Polished Billet Aluminum
  • Universal Alternator Fan - Polished Billet Aluminum
Application Notes:
  • Works with either Mechanical or Electric fuel Pump
  • Works with either Mechanical or Electric fan (may require long fan spacer)
  • Works with either Standard or Camel Hump / Fuelie Heads
  • Power Steering Lines from pump to reservoir not included
  • Reverse Rotation Water Pump
  • Compatible with Hydroboost ($275 option)
If ordering without accessories, please contact us before ordering and see the requirements below:
  • Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
  • Power Steering Pump - GM Type II Pump
  • Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
  • Water Pump - 5.62" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Passenger Side

8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included



Manufacturer Part Number:
