350-WRAPTOR-PS Serpentine System for Chev SB 283-350-400 - Power Steering & Alternator - All Inclusive
SKU:CVF-350-WRAPTOR-PS
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
This product has a 10 day handling time

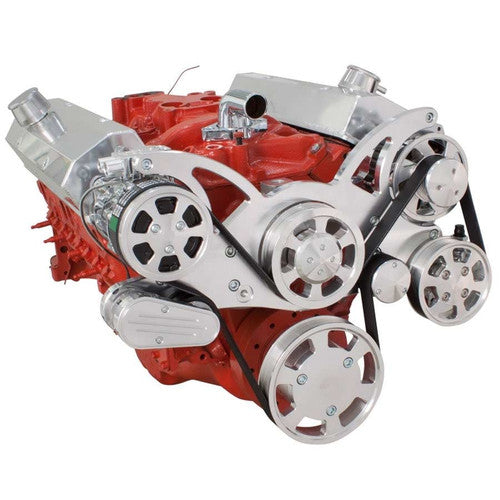

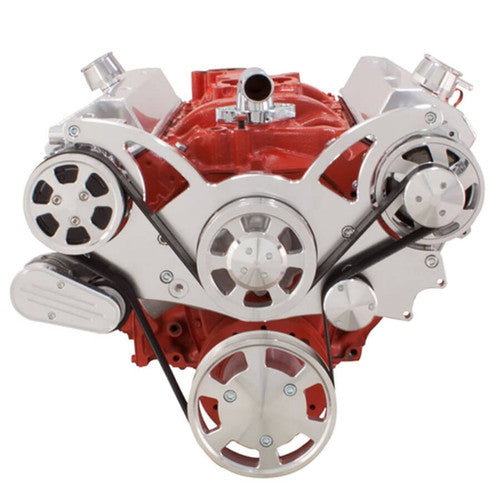

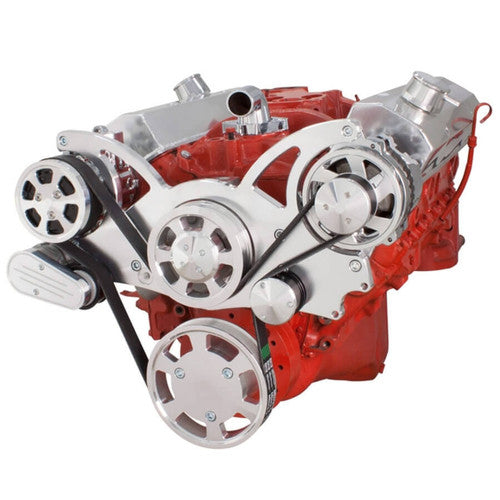

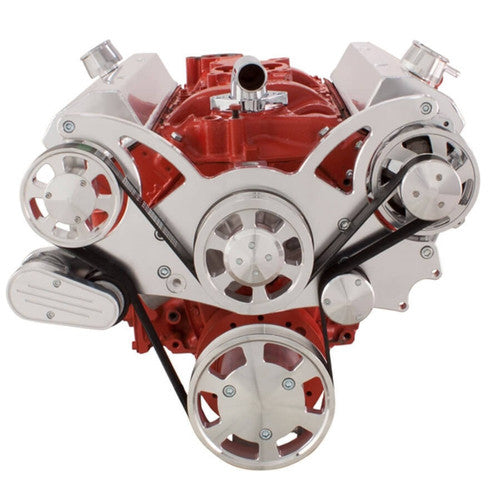

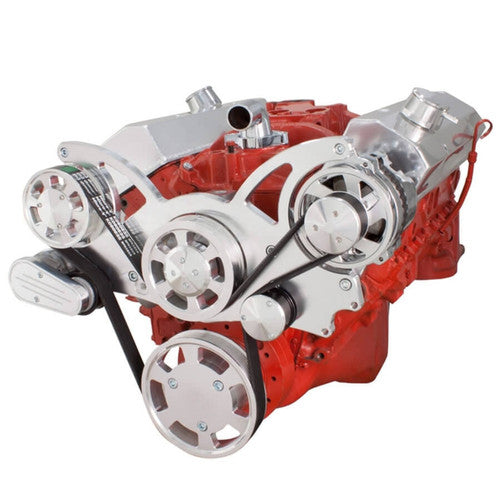

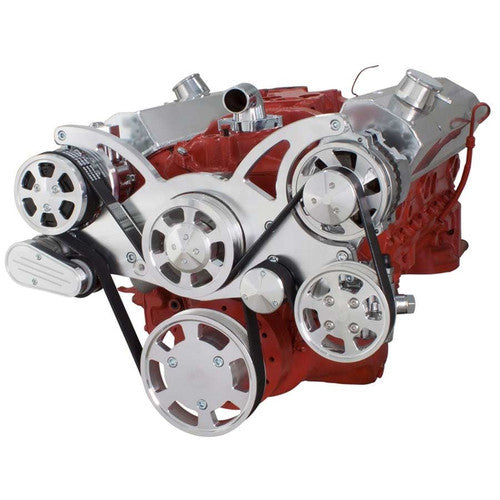

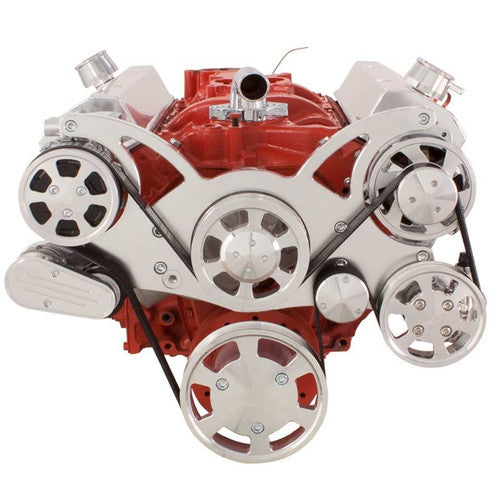

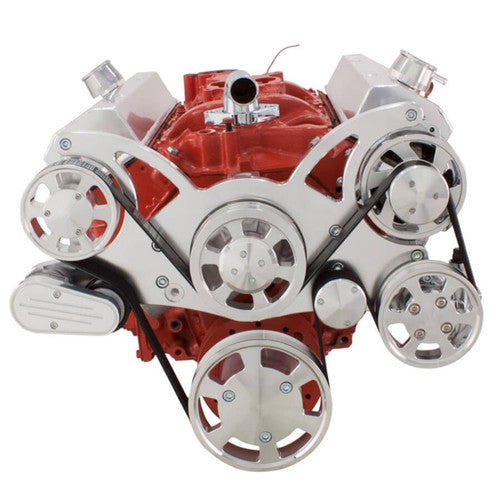

Small Block Chevy 283-350-400 Engine Serpentine Conversion Kit
Power Steering and Alternator
All Inclusive WRAPTOR TM 8 Track Serpentine System for Chevy Small Block engines with 140 Amp alternator and GM Type 2 Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Chrome 1-Wire CS130 Alternator
- Chrome Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket - Polished Billet Aluminum
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover - Polished Billet Aluminum
- Crank Pulley - Polished Billet Aluminum
- Crank Pulley Spacer - Polished Billet Aluminum
- Alternator Pulley & Cover - Polished Billet Aluminum
- Power Steering Pulley - Polished Billet Aluminum
- One Piece Billet Aluminum Bracket - Polished Billet Aluminum
- AC Delete Idler Pulley & Bracket - Polished Billet Aluminum
- Universal alternator fan - Polished Billet Aluminum
Application Notes:
- Upgrade to AC Only Requires Compressor Purchase.
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan (may require long fan spacer)
- Works with either Standard or Camel Hump / Fuelie Heads
- Power Steering Lines from pump to reservoir not included
- Reverse Rotation Water Pump
- Compatible with Hydroboost ($275 option)
If ordering without accessories, please contact us before ordering and see the requirements below:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
