360-WRAPTOR-PS Serpentine System for Small Block Mopar - Power Steering - All Inclusive
SKU:CVF-360-WRAPTOR-PS
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
This product has a 10 day handling time
Small Block Mopar Serpentine Kit
Power Steering and Alternator

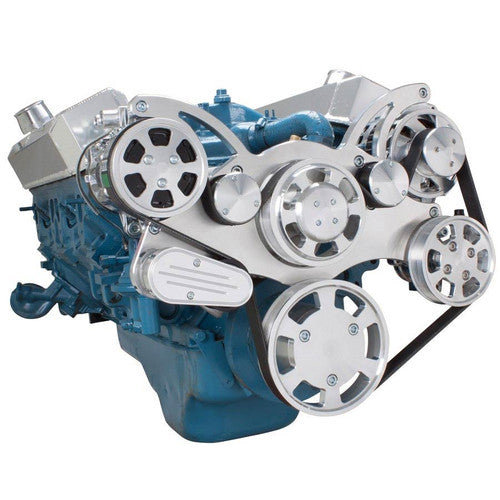

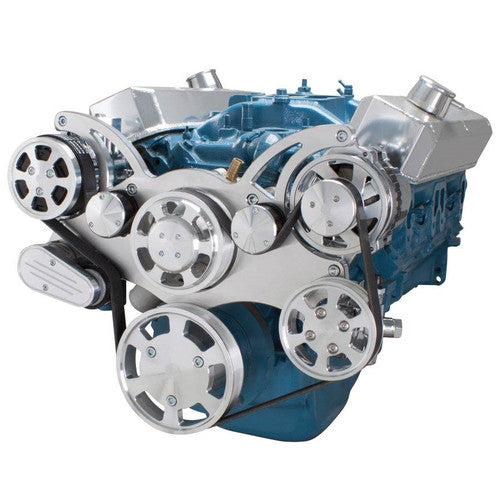

All Inclusive WRAPTORTM 8 Track Serpentine System for Small Block Mopar engines with 140 Amp alternator and GM Type 2 Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Chrome 1-Wire CS130 Alternator
- Chrome Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket - Polished Billet Aluminum
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover - Polished Billet Aluminum
- Crank Pulley - Polished Billet Aluminum
- Crank Pulley Spacer - Polished Billet Aluminum
- Alternator Pulley & Cover - Polished Billet Aluminum
- Power Steering Pulley - Polished Billet Aluminum
- One Piece Billet Aluminum Bracket - Polished Billet Aluminum
- AC Delete Idler Pulley & Bracket - Polished Billet Aluminum
- Universal alternator fan - Polished Billet Aluminum
Application Notes:
- Upgrade to AC Only Requires Compressor Purchase.
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan (may require long fan spacer)
- Requires Lower Radiator Hose on Passenger Side
- Power Steering Lines from pump to reservoir not included
- Will work with Hydroboost ($275 option)
If ordering without accessories, please contact us before ordering and see the requirements below:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Water Pump - 5.7" Tall, Clockwise Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
