454-WRAPTOR-ACO Serpentine System for 396 427 & 454 - AC & Alternator - All Inclusive

Product Information

This product has a 10 day handling time

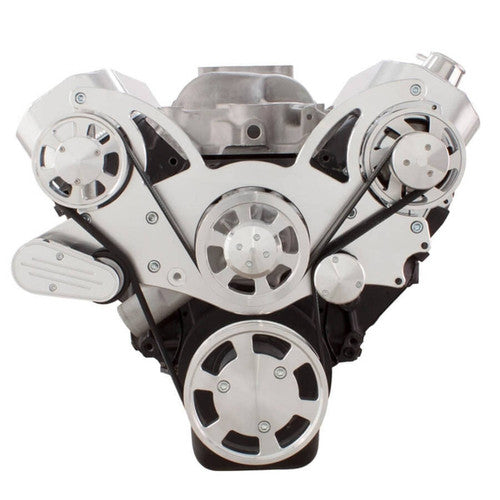

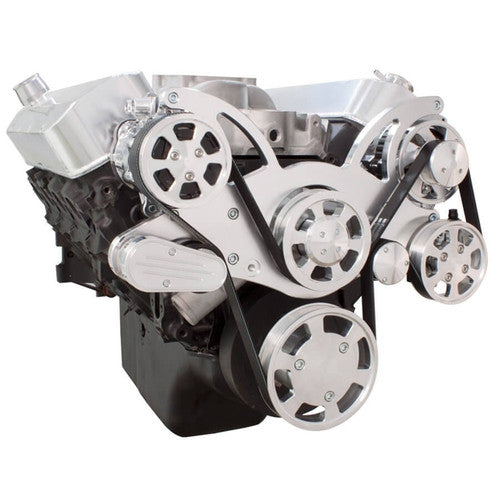

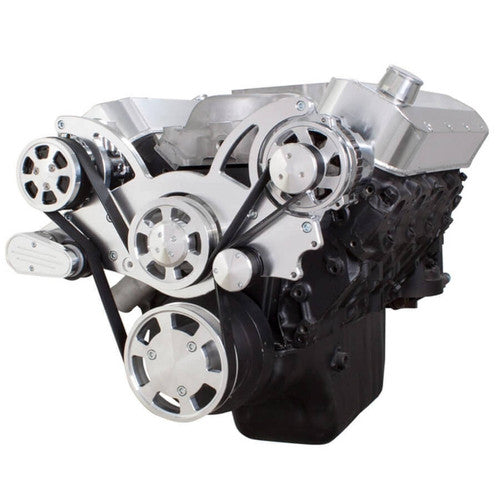

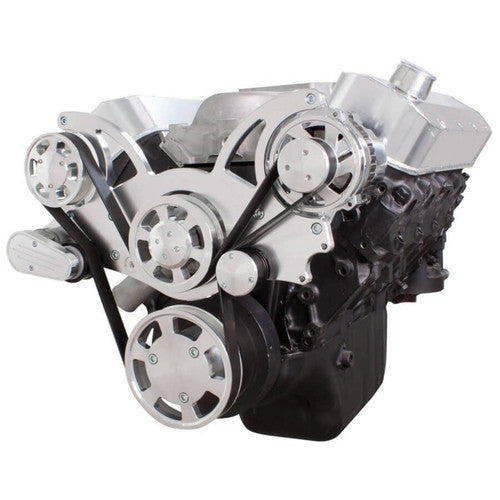

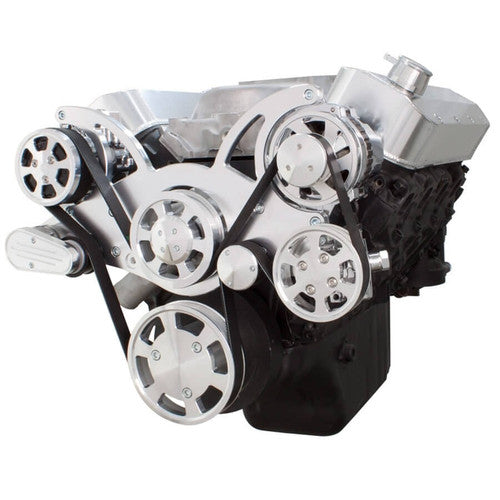

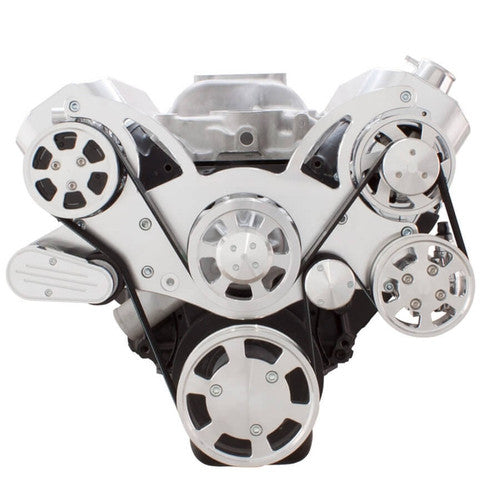

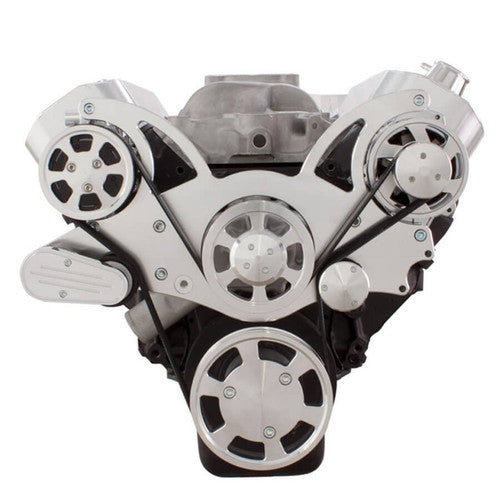

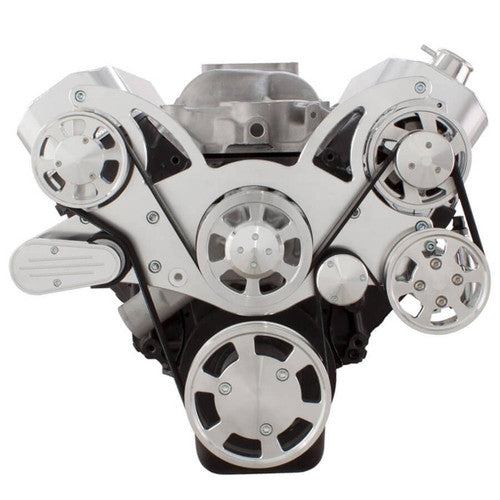

Big Block Chevy 396, 427 and 454 Engine Serpentine Conversion Kit
Air Conditioning and Alternator

All Inclusive WRAPTOR^TM 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:

• High Flow Aluminum Water Pump
• 140 Amp Chrome 1-Wire CS130 Alternator
• Chrome AC Compressor
• AC Compressor Clutch Cover - Polished Billet Aluminum
• Gates Premium Green Strip 8 Rib Belt
• Water Pump Pulley & Cover - Polished Billet Aluminum
• Crank Pulley - Polished Billet Aluminum
• Crank Pulley Spacer - Billet Aluminum
• Alternator Pulley & Cover - Polished Billet Aluminum
• One Piece Billet Aluminum Bracket - Polished Billet Aluminum
• Universal Alternator Fan - Polished Billet Aluminum

Application Notes:

• Upgrade to Power Steering Requires: Only Pump, PS Pulley and Belt Purchase.
• Works with either Mechanical or Electric fuel Pumps
• Works with either Mechanical or Electric fans (may require long fan spacer)
• Works with either Standard or Tall Deck Engines

If ordering without accessories, please contact us before ordering and see the requirements below:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
• Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side

8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
