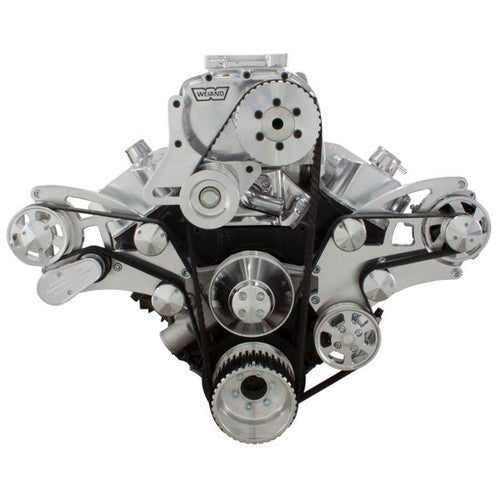

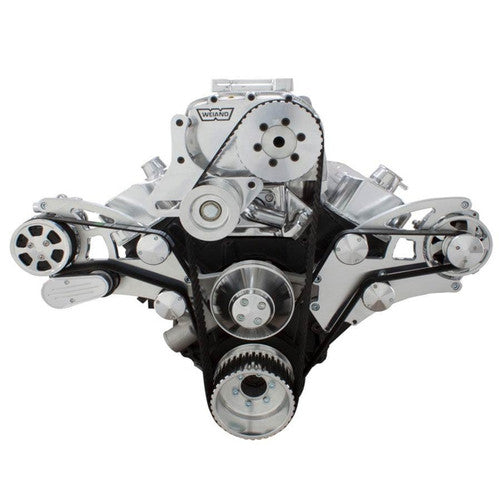

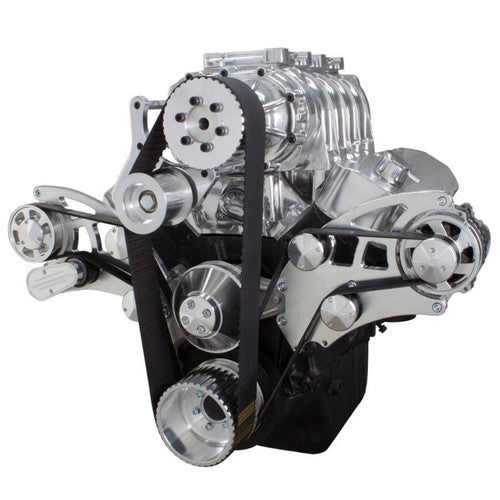

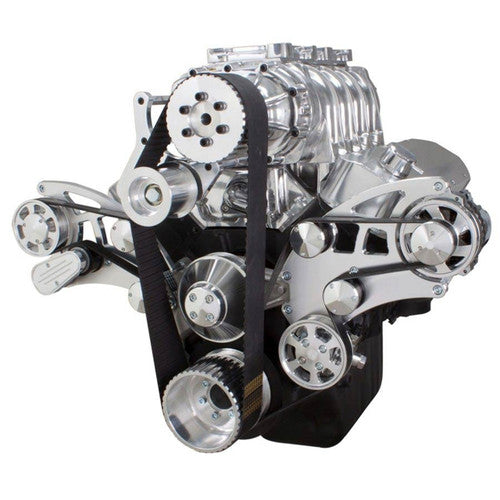

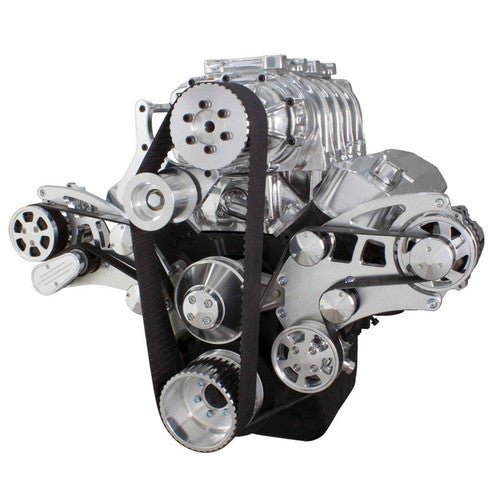

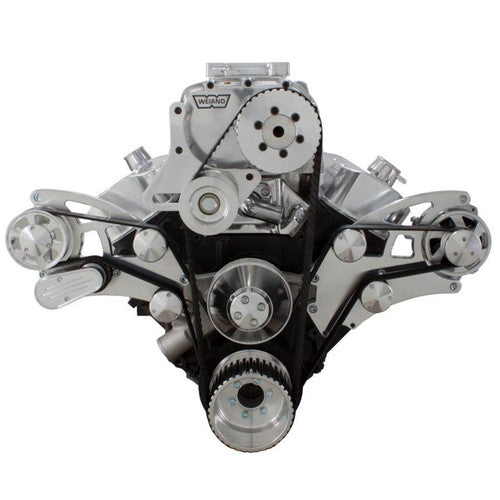

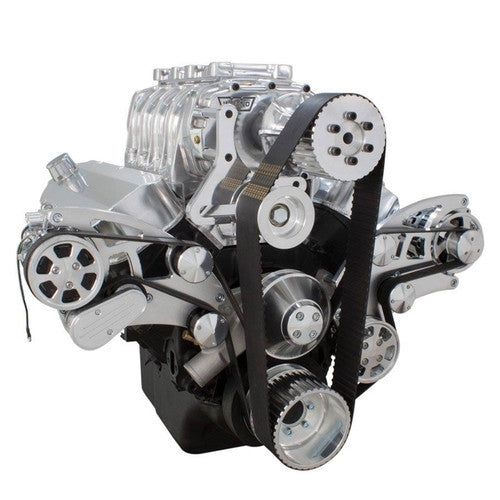

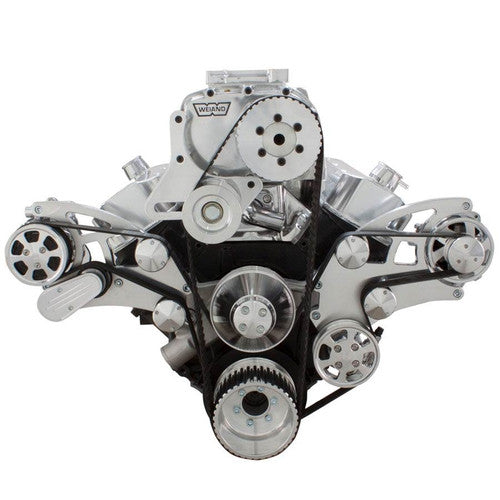

Big Block Chevy 396, 427 and 454 Supercharger Engine Serpentine Conversion Kit
Power Steering and Alternator - Root Style Blower
All Inclusive WRAPTORTM 8 Track Supercharger Serpentine System for Chevy Big Block engines with 140 Amp alternator and GM Type II Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Chrome 1-Wire CS130 Alternator
- Chrome Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket - Polished Billet Aluminum
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover - Polished Billet Aluminum
- Crank Pulley - Polished Billet Aluminum
- Alternator Pulley & Cover - Polished Billet Aluminum
- Power Steering Pulley - Polished Billet Aluminum
- One Piece Billet Aluminum Bracket - Polished Billet Aluminum
- AC Delete Idler Pulley & Bracket - Polished Billet Aluminum
- Universal alternator fan - Polished Billet Aluminum
Application Notes:
- Upgrade to AC Only Requires Compressor Purchase.
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan
- Works with Standard Deck Engines (will not work with Tall Deck Engines)
- Power Steering Lines from pump to reservoir not included
- Compatible with Hydroboost($275 option)
- Call for verification on Blower Crank Pulley
If ordering without accessories, please contact us before ordering and see the requirements below:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
Manufacturer Part Number:
