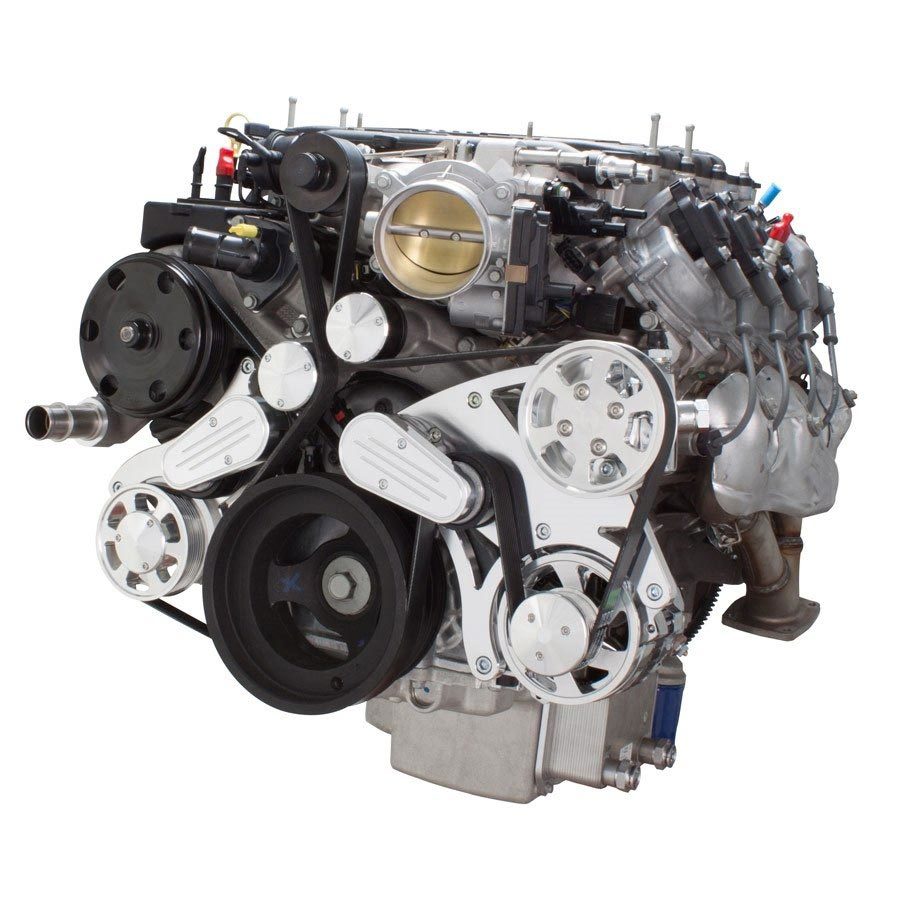

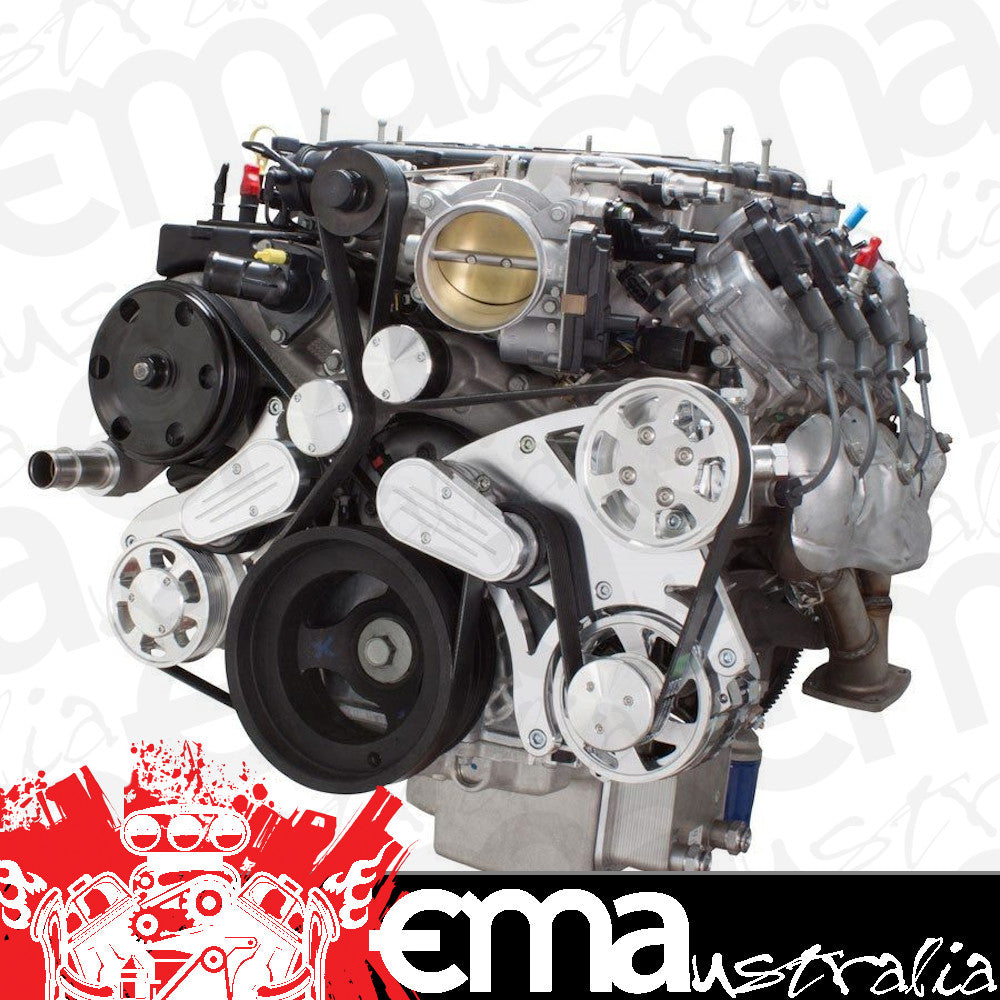

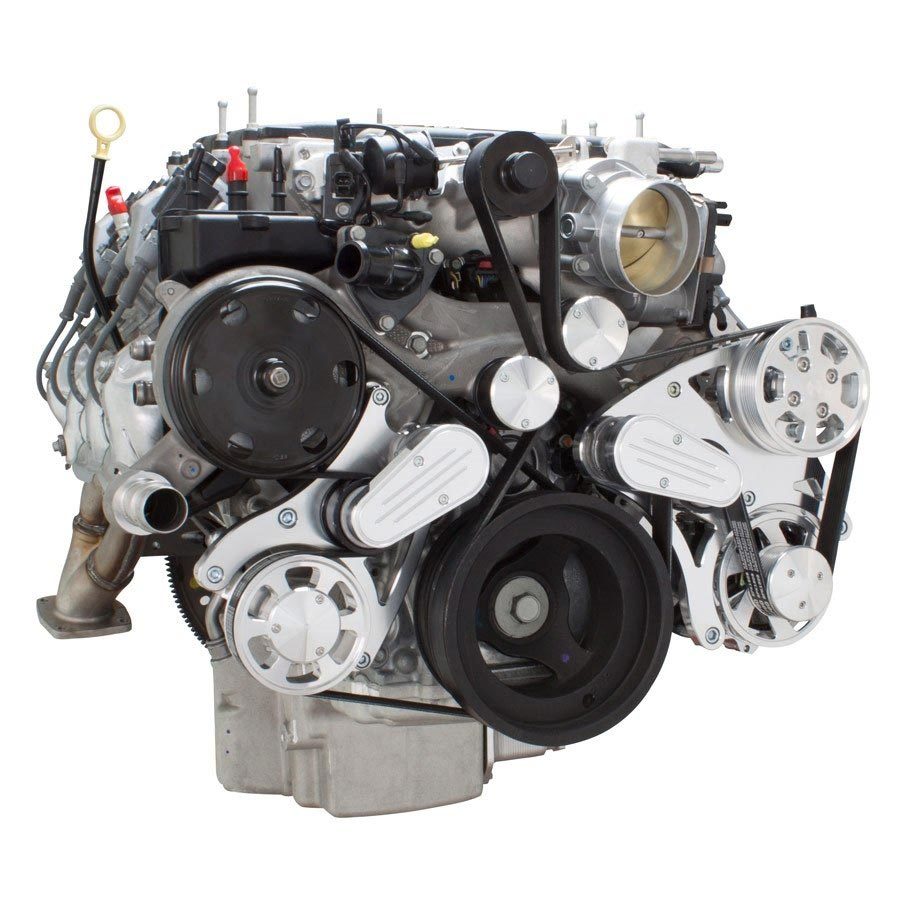

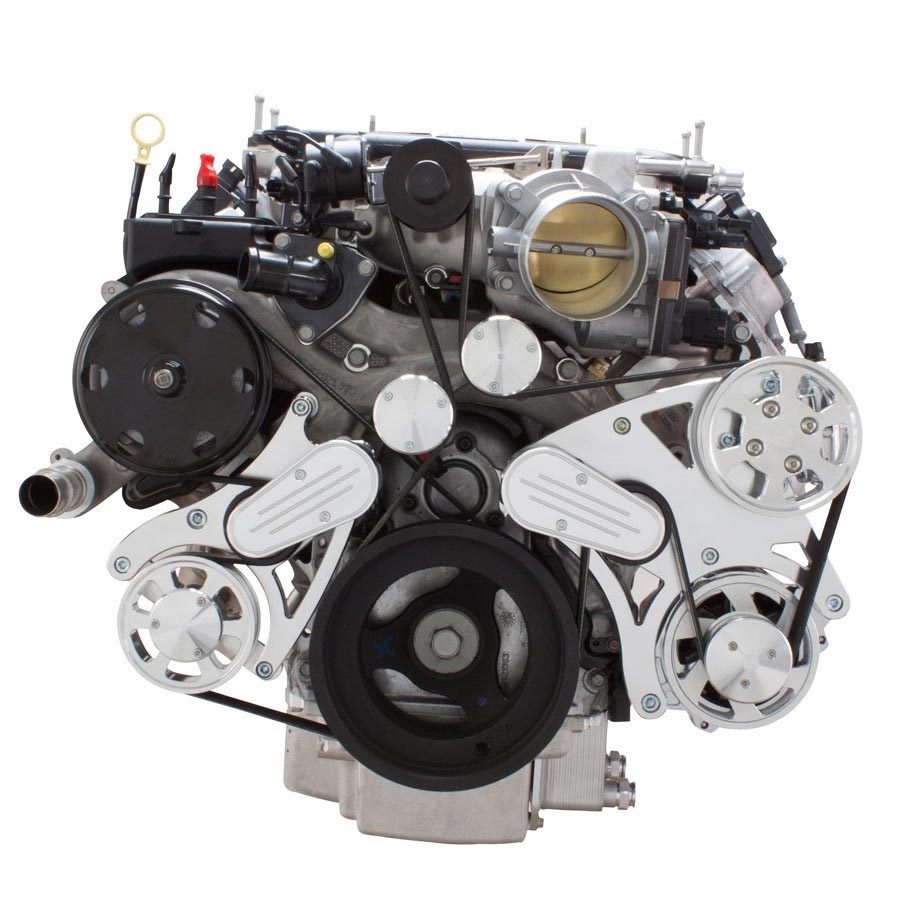

LT4-WRAPTOR-PS Serpentine System for LT4 Supercharged Generation V - Power Steering & Alternator - All Inclusive

Product Information

This product has a 10 day handling time

LT4 SUPERCHARGED GENERATION V Engine Serpentine Conversion Kit
Power Steering and Alternator

All Inclusive WRAPTOR^TM 6 and 8 Track System for Chevy LT4 GEN V wet sump applications with air conditioning, power steering and alternator. Designed around factory water pump this unique system features dual spring loaded Gates tensioners ensuring proper tension during hard acceleration and deceleration while compensating for belt stretch for optimal performance.

All Inclusive Kit Includes:

• 140 Amp Chrome 1-Wire CS130 Alternator
• Chrome Plated Aluminum GM Type II Power Steering Pump
• Remote Mount Reservoir with Bracket - Polished Billet Aluminum
• Gates Premium Green Strip 8 Rib Belt
• Alternator Pulley & Cover - Polished Billet Aluminum
• Power Steering Pulley - Polished Billet Aluminum
• Two Piece Billet Aluminum Bracket - Polished Billet Aluminum
• Universal Alternator Fan - Polished Billet Aluminum

Compatible with:

• Cadillac C15-V - Present
• Camaro ZL1 2017 - Present

Application Notes:

• Works with wet sump applications
• 8 and 6 rib belt compatibility
• Dual belt tensioning
• Optional water pump available ($275)
• Compatible with Hydroboost ($275 option)

If ordering without accessories, please contact us before ordering and see the requirements below:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
• Water Pump - 5.62" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Passenger Side
