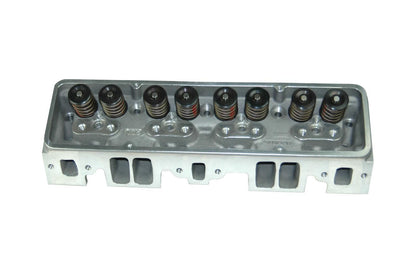

DART DA127121 - SHP Chev 327 350 400 Cylinder Heads Sold Individually
Dart
Part No. DA127121
Sale
Sold out
Taxes included.
Shipping calculated at checkout.
SKU:DA127121
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

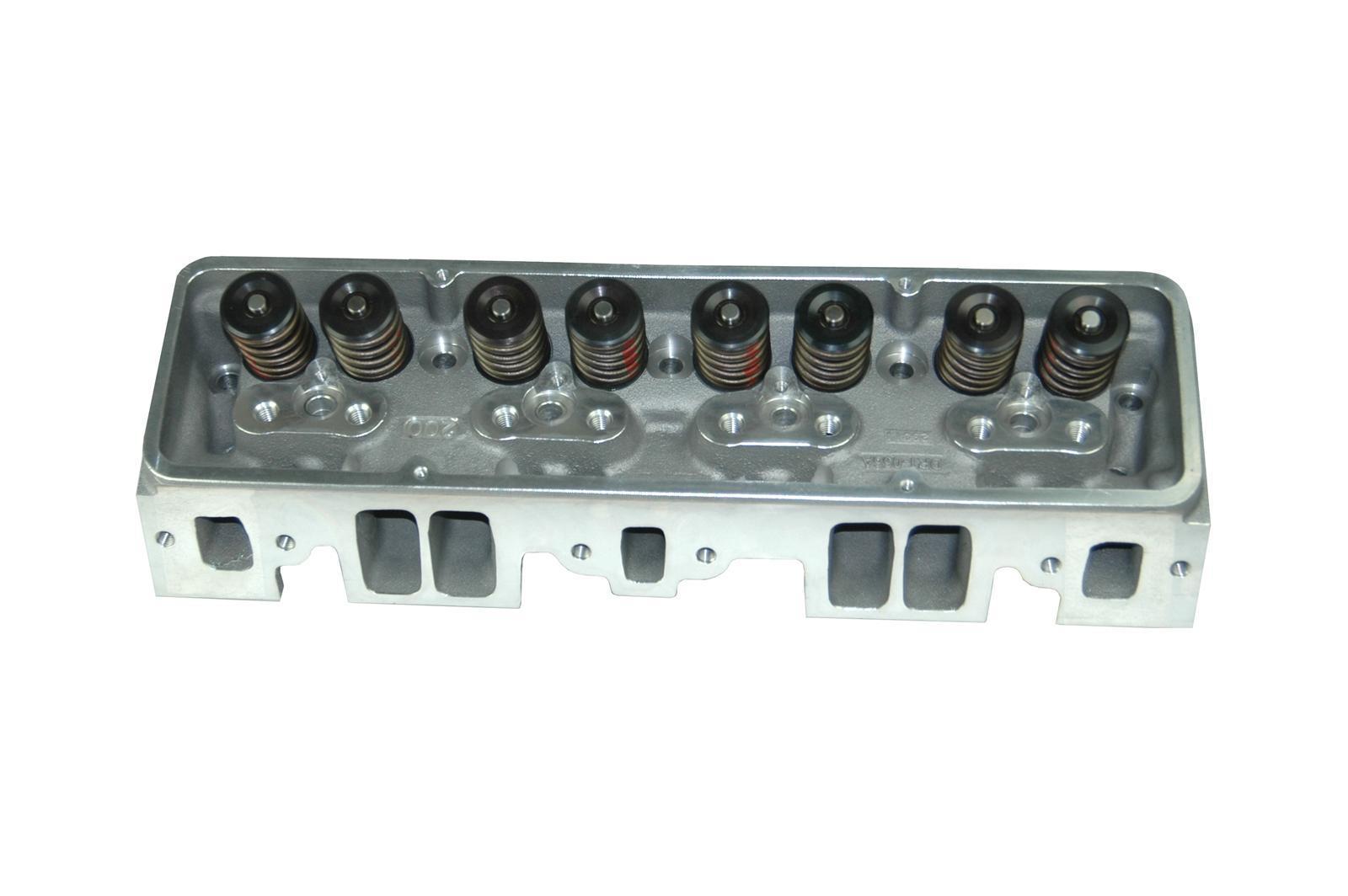

Dart - DAR127121 SHP Chev 327, 350, 400 Cylinder HeadsThese Dart SHP Special High Performance cylinder heads are designed to provide an affordable option to those looking for the weight savings of aluminum heads for a performance street engine. They are manufactured from A356-T6 aluminum and are designed to work with most off-the-shelf components. These SHP cylinder heads are available with your choice of 64cc or 72cc combustion chambers and come in both 180cc and 200cc intake runner ports that are precision-cast and designed to offer excellent flow and power without the need for CNC-machined porting. They feature optimized chambers for increased combustion efficiency and multi-angle intake seats. The cylinder heads' radiused exhaust seats dramatically increase their performance and the manganese bronze valve guides increase their life.Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64
CNC-Machined Combustion Chamber:No
Intake Runner Volume (cc):180cc
Exhaust Runner Volume (cc):75cc
CNC-Machined Intake Runner:No
CNC-Machined Exhaust Runner:No
Combustion Chamber Style:Heart
Intake Port Location:Standard
Exhaust Port Shape:Square
Exhaust Port Location:Standard
Spark Plug Style:Straight
Intake Valves Included:Yes
Intake Valve Diameter (in):2.020 in.
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.600 in.
Valve Springs Included:Yes
Maximum Valve Lift (in):0.510 in.
Outside Diameter of Outer Spring (in):1.250 in.
Damper Spring Included:No
Number of Springs Per Valve:Single
Retainers Included:Yes
Retainer Material:Steel
Locks Included:Yes
Lock Style:7 degree
Valve Stem Seals Included:Yes
Valve Stem Seal Style:Umbrella
Rocker Arm Studs Included:Yes
Rocker Arm Nut Thread Size:3/8-24 in.
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:Yes
Guideplate Pushrod Size:5/16 in.
Valve Cover Mounting Style:Center and perimeter bolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:23
Exhaust Valve Angle:23
Valve Guides Included:Yes
Valve Guide Material:Manganese bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:5-angle intake/2-angle exhaust
Valve Seat Material:Powdered metal
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Notes:Hydraulic flat tappet applications.
Product Information
Dart - DAR127121 SHP Chev 327, 350, 400 Cylinder HeadsThese Dart SHP Special High Performance cylinder heads are designed to provide an affordable option to those looking for the weight savings of aluminum heads for a performance street engine. They are manufactured from A356-T6 aluminum and are designed to work with most off-the-shelf components. These SHP cylinder heads are available with your choice of 64cc or 72cc combustion chambers and come in both 180cc and 200cc intake runner ports that are precision-cast and designed to offer excellent flow and power without the need for CNC-machined porting. They feature optimized chambers for increased combustion efficiency and multi-angle intake seats. The cylinder heads' radiused exhaust seats dramatically increase their performance and the manganese bronze valve guides increase their life.Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64
CNC-Machined Combustion Chamber:No
Intake Runner Volume (cc):180cc
Exhaust Runner Volume (cc):75cc
CNC-Machined Intake Runner:No
CNC-Machined Exhaust Runner:No
Combustion Chamber Style:Heart
Intake Port Location:Standard
Exhaust Port Shape:Square
Exhaust Port Location:Standard
Spark Plug Style:Straight
Intake Valves Included:Yes
Intake Valve Diameter (in):2.020 in.
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.600 in.
Valve Springs Included:Yes
Maximum Valve Lift (in):0.510 in.
Outside Diameter of Outer Spring (in):1.250 in.
Damper Spring Included:No
Number of Springs Per Valve:Single
Retainers Included:Yes
Retainer Material:Steel
Locks Included:Yes
Lock Style:7 degree
Valve Stem Seals Included:Yes
Valve Stem Seal Style:Umbrella
Rocker Arm Studs Included:Yes
Rocker Arm Nut Thread Size:3/8-24 in.
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:Yes
Guideplate Pushrod Size:5/16 in.
Valve Cover Mounting Style:Center and perimeter bolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:23
Exhaust Valve Angle:23
Valve Guides Included:Yes
Valve Guide Material:Manganese bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:5-angle intake/2-angle exhaust
Valve Seat Material:Powdered metal
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Notes:Hydraulic flat tappet applications.
