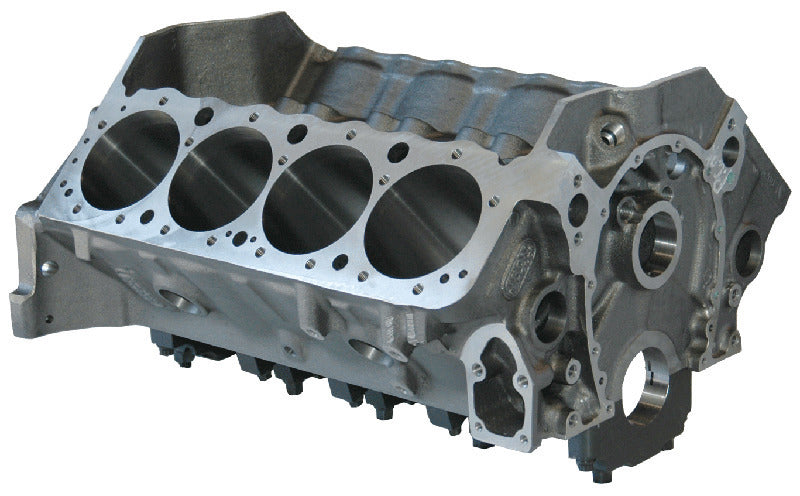

DART DA31122212 Iron Eagle Cast Iron SB Chev Engine Block w/ 4-Bolt Steel Caps 4.125" Bore 9.025" Deck 400 Mains BB Chev Cam Tunnel .391"

DART DA31122212 Iron Eagle Cast Iron SB Chev Engine Block w/ 4-Bolt Steel Caps 4.125" Bore 9.025" Deck 400 Mains BB Chev Cam Tunnel .391"

Skip to product information
1 of 2
Dart Part No. DA31122212
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:DA31122212

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Race block available with tall deck and with raised cam location. Provisions for wet or dry sump oiling systems. Maximum effort racing engines.

Iron Eagle small blocks are available in standard (9.025") and tall deck (9.325") versions so you can select the crankshaft stroke and connecting rod length that’s right for your combination.

We raised the camshaft and spread the oil pan rails to provide extra clearance for stroker cranks. The versatile Iron Eagle block is the perfect starting point for a big cubic inch small block project.

  • Standard 9.025" and tall deck 9.325" versions allow greater versatility.
  • Raised camshaft .391" (4.912" camshaft-to-crankshaft centerlines) provides more clearance for stroker cranks and eliminates need for fragile small base circle cams. Option for .434 raised cam also available.
  • Relocated oil pan rails are spread .400" per side (.800" wider than stock) to increase crank/rod clearance and reduce windage losses.
  • Requires use of remote oil filter. No provision for block mounted filters.
  • Oil pan bolt holes are relocated in line with main caps to eliminate interference with rotating assembly.
  • Big block camshaft bearings allow the use of cams with larger base circle diameter to improve strength and reduce twisting with cam-driven pumps (small block cam tunnel available).
  • Dual starter mounts allow starter to be mounted on either side of block for chassis and oil pan clearance.
  • Front & rear external oil inlets, crossovers and restrictor provisions to simplify plumbing with external pump.
  • Parts kit included (PN 32000011).


Product Information

Race block available with tall deck and with raised cam location. Provisions for wet or dry sump oiling systems. Maximum effort racing engines.

Iron Eagle small blocks are available in standard (9.025") and tall deck (9.325") versions so you can select the crankshaft stroke and connecting rod length that’s right for your combination.

We raised the camshaft and spread the oil pan rails to provide extra clearance for stroker cranks. The versatile Iron Eagle block is the perfect starting point for a big cubic inch small block project.

  • Standard 9.025" and tall deck 9.325" versions allow greater versatility.
  • Raised camshaft .391" (4.912" camshaft-to-crankshaft centerlines) provides more clearance for stroker cranks and eliminates need for fragile small base circle cams. Option for .434 raised cam also available.
  • Relocated oil pan rails are spread .400" per side (.800" wider than stock) to increase crank/rod clearance and reduce windage losses.
  • Requires use of remote oil filter. No provision for block mounted filters.
  • Oil pan bolt holes are relocated in line with main caps to eliminate interference with rotating assembly.
  • Big block camshaft bearings allow the use of cams with larger base circle diameter to improve strength and reduce twisting with cam-driven pumps (small block cam tunnel available).
  • Dual starter mounts allow starter to be mounted on either side of block for chassis and oil pan clearance.
  • Front & rear external oil inlets, crossovers and restrictor provisions to simplify plumbing with external pump.
  • Parts kit included (PN 32000011).


Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Dart
MPN
Not provided
UPC
Not provided
Our Part Number
DA31122212

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Dart

Dart products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
