DART DA31131111 Little M Cast Iron Engine Block 4" Bore 9.025" Deck 350 Mains

DART DA31131111 Little M Cast Iron Engine Block 4" Bore 9.025" Deck 350 Mains

DA31131111
$5,451.60 AUD
$5,451.60 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
 More payment options

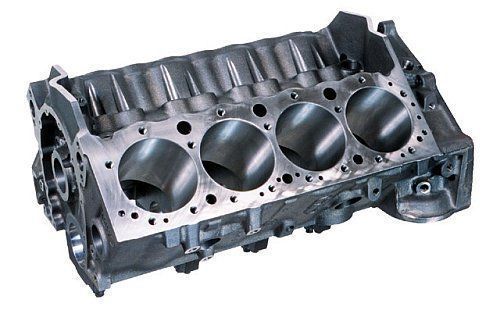

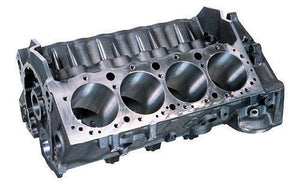

DART LITTLE M CAST IRON ENGINE BLOCK DA31131111, 4.000" BORE 9.025" DECK 350 MAINS

The Dart Little M is designed from the ground up as a true racing engine block which can be used with standard off the shelf small block components. The Little M is cast from premium high strength iron and beefed up in all the critical areas. A competition oiling system ensures adequate lubrication to the main bearings at high rpm. You can select 4.000" or 4.125" cylinder bores, and 350 or 400 main bearings with steel 4 bolt main caps. Front and rear external oil feed, crossover and restrictor provision simplify plumbing with external pumps.With a standard deck height, extra thick siamese cylinder walls and a competition oiling system, the Little M is the perfect starting point for a powerful and reliable engine for the street or the race track.Features:
  • Extra thick cylinder walls resist cracking and improve ring seal for more power.
  • Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to equalize temperatures.
  • Priority main oiling system directs oil to the main bearings first for more dependable lubrication.
  • Blind tapped head bolt holes prevent water leaks.
  • Extra thick decks ensure reliable head gasket seal.
  • Standard small block deck height allows use of off the shelf parts.
  • Splayed outer bolts on middle main bearing caps prevent cracks.
  • Open lifter valley improves return to oil pan.
  • Enlarged lifter bosses accommodate offset and oversize lifters.
  • 4 bolt billet steel main caps have splayed outer bolts for extra strength.
  • Front and rear external oil inlets, crossovers and restrictor provisions to simplify plumbing with external pump.
  • Block includes special coated cam bearings, freeze plugs and dowels.
Specs:
Main Journal Type: 350 mains
Engine Block Style: Stock/OEM standard deck
Deck Height (in): 9.025 in.
Cylinder Bore as Shipped: 3.990 in.
Cylinder Bore Diameter: 4.000 in.
Engine Block Material: Cast iron
Engine Block Weight (lbs): 205 lbs.
Main Bolt Style: 4-bolt
Main Caps Included: Yes
Main Cap Material: Steel
Main Cap Fasteners Included: Yes
Main Bearings Included: No
Rear Main Seal Style: 2-piece
Finished Cylinder Bores: No
Raised Cam Location: No
Cam Bearings Included: Yes
Freeze Plugs Included: Yes
Quantity: Sold individually.
Notes: Block bores are .10 undersized to allow for piston set up.
