Dart DA31263654 Big M Chev BB Chev Comp Iron Block

Big M Chev BB Chev Comp Iron Block

1 2
Dart
Dart Part No. DA31263654
$7,823.95 AUD
$7,823.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

DA31263654

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

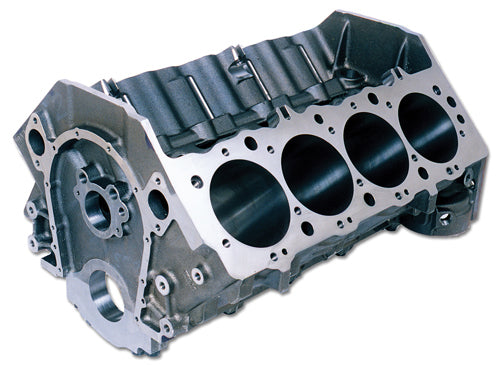

Dart engineered the Big M block to be the strongest, most reliable and easiest to build big block on the market. With multiple deck heights and bore sizes up to 4.600", the Big M Sportsman block gives you the versatility to build a wide variety of engine combinations. A true priority main oiling system oils the main bearings before the lifters for extra reliability

Product Information

Dart engineered the Big M block to be the strongest, most reliable and easiest to build big block on the market. With multiple deck heights and bore sizes up to 4.600", the Big M Sportsman block gives you the versatility to build a wide variety of engine combinations. A true priority main oiling system oils the main bearings before the lifters for extra reliability

Technical Information

Features
Standard 9.800" and tall 10.200" deck heights available for stroker engines
Standard 4.250", 4.500" or 4.600" bore sizes with siamesed extra thick cylinder walls to resist cracking and improve ring seal (minimum.300" thick with 4.625" bore)
Uses +.300" tall Gen VI style lifters. Modification for Gen IV style available
Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to equalize temperatures
4 bolt billet steel main caps have splayed outer bolts for extra strength
Crankshaft tunnel has clearance for a 4.500" stroke crank with steel rods without grinding
True priority main oil system lubricates the main bearings before the lifters. Our stepped main oil gallery (9/16" to 1/2" to 7/16") increases the flow of oil to the crank at high rpm, and our front oil crossover eliminates internal oil leaks around the distributor shaft
Oil filter pad is drilled and tapped for an external oil pump
Lifter valley head stud bosses prevent blown head gaskets
Rear main cap uses standard oil pump and two piece seal - no adapter required!
Mechanical fuel pump boss, clutch linkage mounts, and side and front motor mounts simplify installation in any chassis
Dual oil pan bolt patterns fit standard and notched oil pans
Coated cam bearings, freeze plugs and dowels are included
Specifications
Manufacturer
Dart
MPN
Not provided
UPC
Not provided
Our Part Number
DA31263654

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Dart

Dart products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
