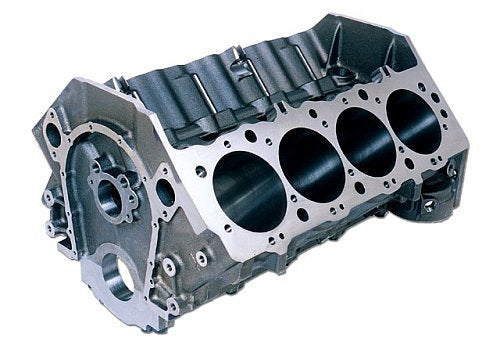

DART DA31273344 Chev BB Big M Sportsman Block

DART DA31273344 Chev BB Big M Sportsman Block

DA31273344
$4,395.00 AUD
$4,395.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Big M Sportsman series blocks are engineered to be strong, reliable, easy to build and affordable. With multiple deck heights and bore sizes up to 4.600", the Big M Sportsman block gives you the versatility to build a wide variety of engine combinations. A true priority main oiling system oils the main bearings before the lifters for extra reliability.

Features:
  • Standard 9.800" and tall 10.200" deck heights available for stroker engines.
  • Standard 4.250" , 4.500" or 4.600" bore sizes with siamesed extra thick cylinder walls to resist cracking and improve ring seal (minimum .300" thick with 4.625" bore).
  • Uses +.300" tall Gen VI style lifters. Modification for Gen IV style available.
  • Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to equalize temperatures.
  • 2 bolt front and rear and 4 bolt interior ductile iron main caps have splayed outer bolts for extra strength.
  • Crankshaft tunnel has clearance for a 4.500" stroke crank with steel rods without grinding.
  • True priority main oil system lubricates the main bearings before the lifters. Our stepped main oil gallery (9/16" to 1/2" to 7/16") increases the flow of oil to the crank at high rpm, and our front oil crossover eliminates internal oil leaks around the distributor shaft.
  • Oil filter pad is drilled and tapped for an external oil pump.
  • Lifter valley head stud bosses prevent blown head gaskets.
  • Rear main cap uses standard oil pump and two piece seal - no adapter required!
  • Mechanical fuel pump boss, clutch linkage mounts, and side and front motor mounts simplify installation in any chassis.
  • Dual oil pan bolt patterns fit standard and notched oil pans.
  • Coated cam bearings, freeze plugs and dowels are NOT li>


Manufacturer Part Number:
