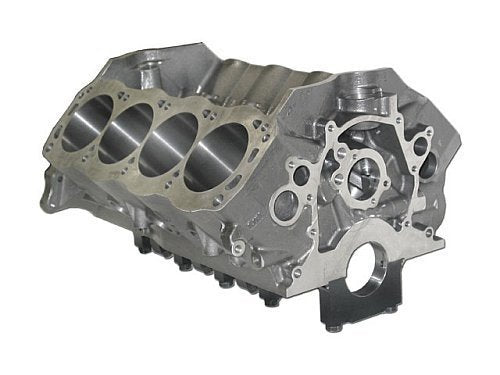

DART DA31354275 Sportsman Cast Iron Ford 302W Engine Block w/ 4-Bolt Steel Caps 4.125" Bore 8.200" Deck 302 Mains

The Iron Eagle Sportsman block for Ford small block engines is designed to work with stock components but is much more than just a stock replacement. Dart Iron Eagle Sportsman blocks for small block Ford engines are powerful, competition blocks that offer racers the features they need while remaining affordable.

• Siamesed cylinders: Standard 4.000" or 4.125" cylinders can be safely bored to 4.165" diameter. Ductile iron sleeves and extra thick walls prevent cracking and produce excellent ring seal.
• Multiple deck heights allow for increased displacements of up to 468 cubic inches.
• Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to prevent detonation, extend engine life and produce consistent cylinder temperatures.
• Ductile iron front and rear 2 bolt main caps with 4 bolt interior main caps. Rear cap uses standard one piece seal.
• Two main bearing diameters 302 (2.249") or 351C (2.749") allow choice of small or large journal camshaft.
• Stock components make Dart blocks a direct replacement for most production small blocks. Provisions for stock motor mounts, accessory drives, smog pumps, starter brackets, oil pans and pumps.
• Upgraded oiling system has a complete stock type system plus a low restriction priority main oiling system with front and rear external oil pump feeds.
• Dual crossovers allow oil flow to be metered with restrictors for roller lifter cams and/or rocker roller arms to reduce oil flow and windage.
• Reinforced head bolt bosses are blind tapped to prevent leaks and produce accurate torque readings. Extra thick decks prevent head gasket leaks.
• Standard camshaft and camshaft drive can be used. Lifter valley has bosses for production hydraulic roller lifters.
